HDF-R26 Series
Manufacturer: NorComp Inc.
Beta
⌘K

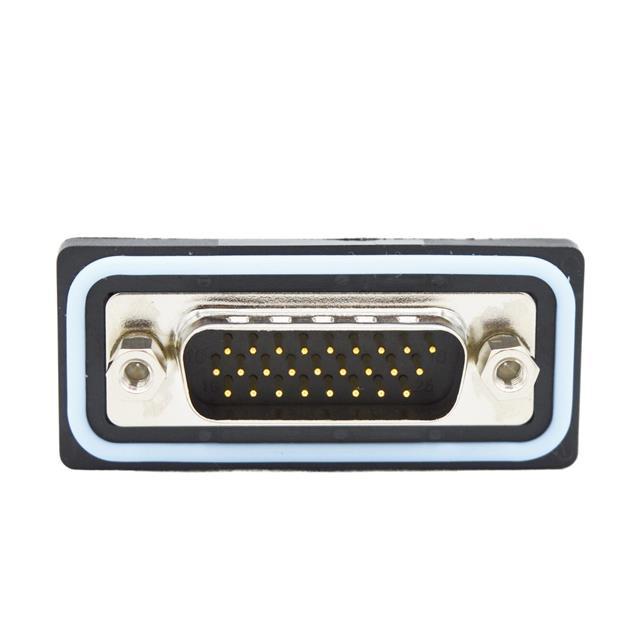

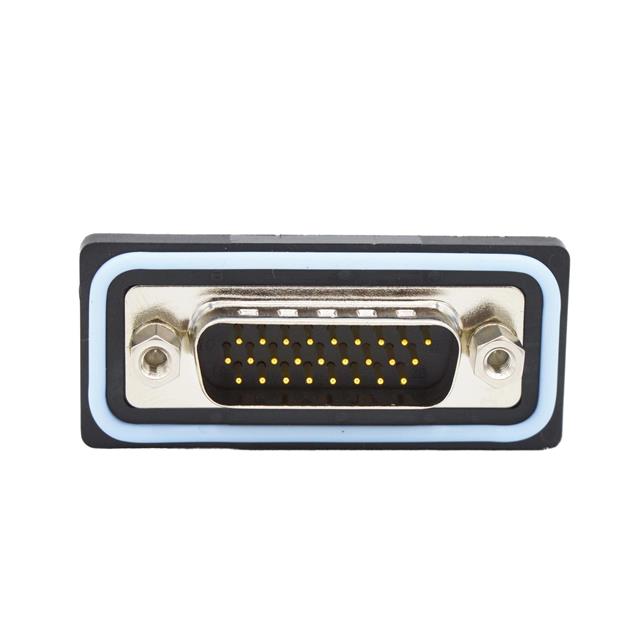

D SUB CONNECTOR, IP67, HIGH DENSITY, PLUG, NANOOK SERIES, 26 CONTACTS, DA, SOLDER
| Part | Contact Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Mounting Type | Number of Rows [custom] | Flange Feature | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Connector Style | Ingress Protection | Termination | Material Flammability Rating | Contact Type | Current Rating (Amps) | Features | Connector Type | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 30 Áin | 0.76 Ám | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Gold | |
 NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 30 Áin | 0.76 Ám | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Grounding Indents | Plug Male Pins | Gold | |
 NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Receptacle Female Sockets | Gold | Flash | |||
NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Gold | Flash | ||
 NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Board Lock Mounting Brackets | Receptacle Female Sockets | Gold | Flash | ||
NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 30 Áin | 0.76 Ám | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Receptacle Female Sockets | Gold | ||
NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Grounding Indents | Plug Male Pins | Gold | Flash | ||
NorComp Inc. | Brass | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | 30 Áin | 0.76 Ám | 26 | Panel Mount Right Angle Through Hole | 3 | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 2 | DA A | D-Sub High Density | IP67 - Dust Tight Waterproof | Solder | UL94 V-0 | Signal | 3 A | Board Lock Mounting Brackets | Receptacle Female Sockets | Gold |
