GPB556A Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH PUSH SPST-NO 125MA 125V
| Part | Ingress Protection | Mounting Type | Current Rating (Amps) | Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Circuit | Actuator Type | Termination Style | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Actuator Marking | Voltage Rating - DC | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

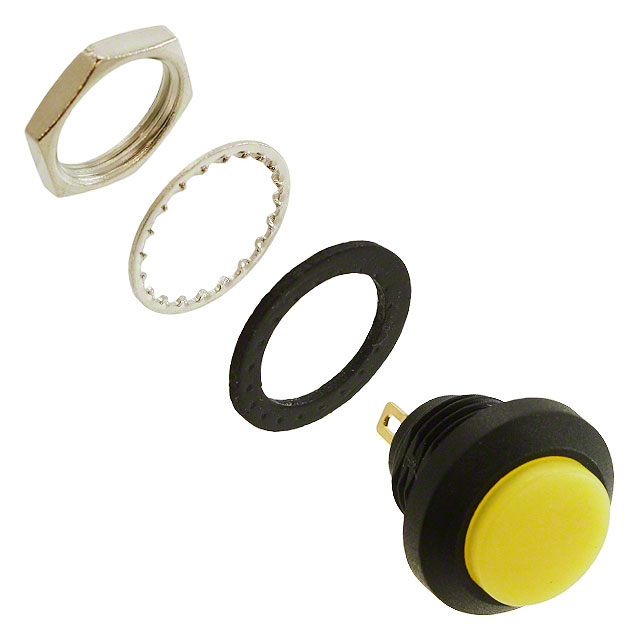

 CW Industries | IP67 - Dust Tight Waterproof | Panel Mount Front | 100 mA 125 mA | Standard | Off-Mom | 85 °C | -25 °C | 125 V | SPST-NO | Button Round | Solder Lug | Amber | 12 mm | No Marking | 50 VDC | ||

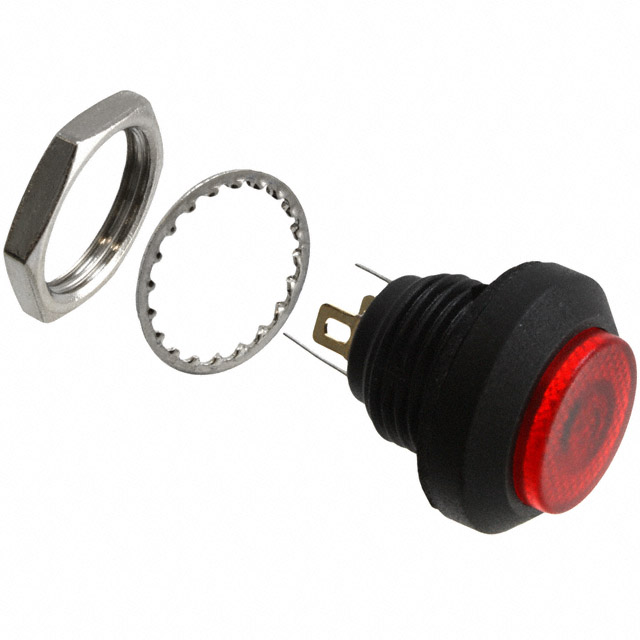

 CW Industries | IP67 - Dust Tight Waterproof | Panel Mount Front | 125 mA | Illuminated Standard | Off-Mom | 85 °C | -25 °C | 125 V | SPST-NO | Button Round | Solder Lug | Red | 12 mm | No Marking | LED Red | 2 VDC | |

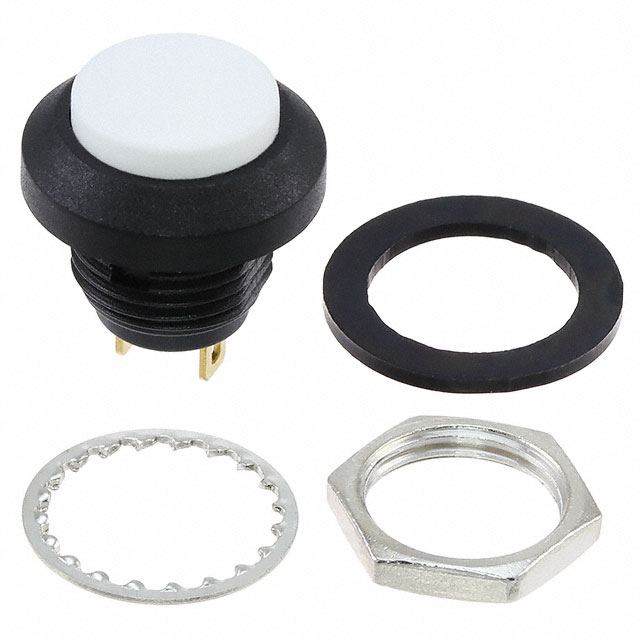

 CW Industries | IP67 - Dust Tight Waterproof | Panel Mount Front | 100 mA 125 mA | Standard | Off-Mom | 85 °C | -25 °C | 125 V | SPST-NO | Button Round | Solder Lug | White | 12 mm | No Marking | 50 VDC | ||

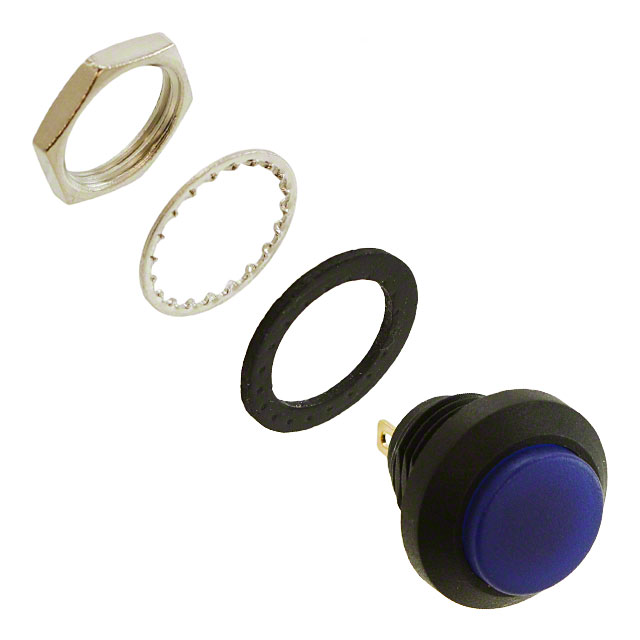

 CW Industries | IP67 - Dust Tight Waterproof | Panel Mount Front | 100 mA 125 mA | Standard | Off-Mom | 85 °C | -25 °C | 125 V | SPST-NO | Button Round | Solder Lug | Blue | 12 mm | No Marking | 50 VDC | ||

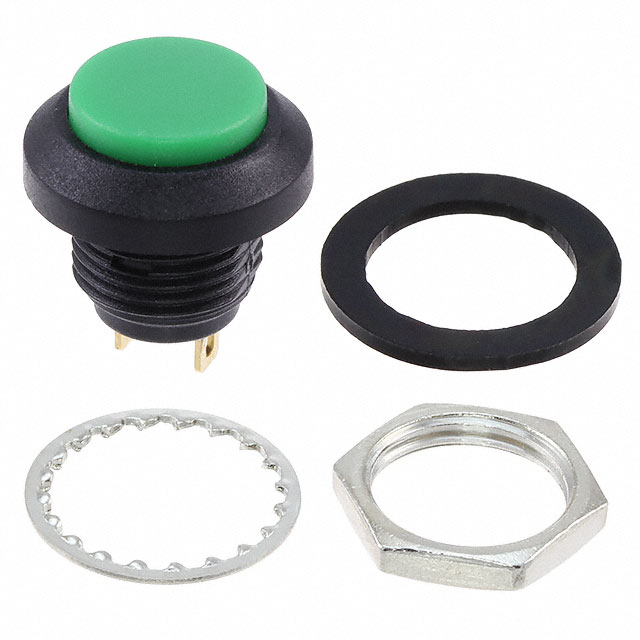

 CW Industries | IP67 - Dust Tight Waterproof | Panel Mount Front | 100 mA 125 mA | Standard | Off-Mom | 85 °C | -25 °C | 125 V | SPST-NO | Button Round | Solder Lug | Green | 12 mm | No Marking | 50 VDC | ||

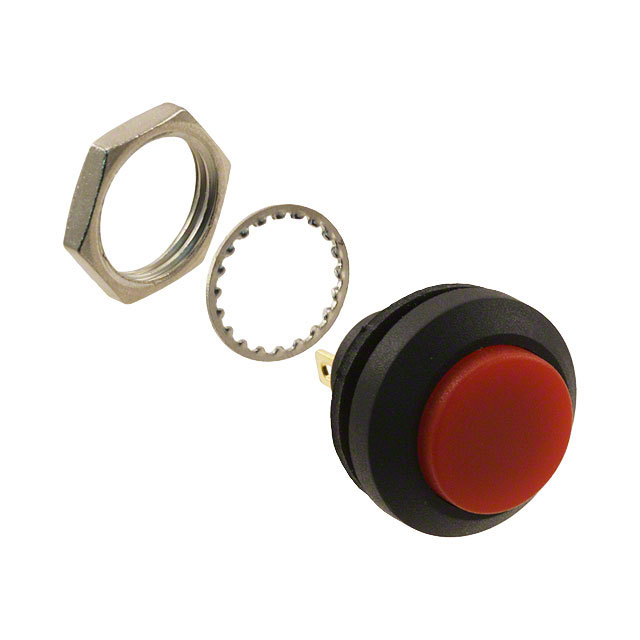

 CW Industries | IP67 - Dust Tight Waterproof | Panel Mount Front | 100 mA 125 mA | Standard | Off-Mom | 85 °C | -25 °C | 125 V | SPST-NO | Button Round | Solder Lug | Red | 12 mm | No Marking | 50 VDC |
