AR0330CM Series

CMOS Image Sensor, 3 MP, 1/3"

Catalog

CMOS Image Sensor, 3 MP, 1/3"

Part	Frames per Second	Type	Pixel Size [y]	Pixel Size [x]	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Active Pixel Array [y]	Active Pixel Array [x]	Voltage - Supply	Supplier Device Package [x]	Supplier Device Package [y]	Supplied Contents	Sensor Type	Utilized IC / Part
ON Semiconductor AR0330CS1C12SPKA0-CP	30	CMOS	2.2 µm	2.2 µm	64-VFBGA CSPBGA	64-CSP (6.28x6.65)	1.9 V	1.7 V	-30 °C	70 °C

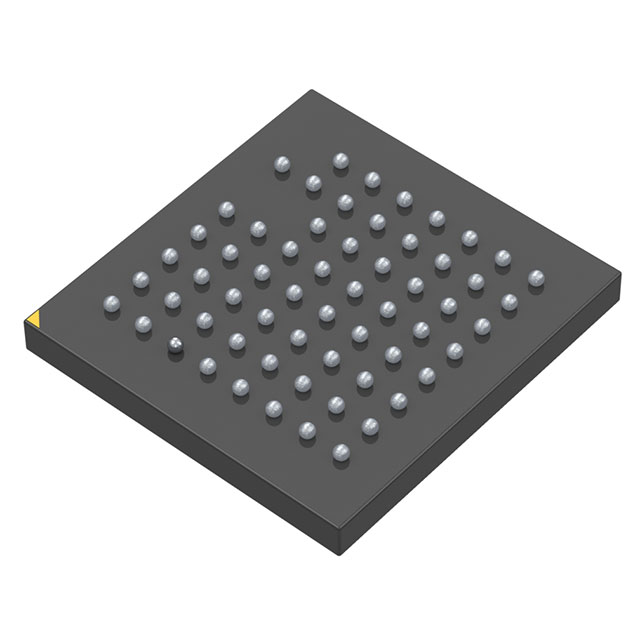

ON Semiconductor AR0330CS1C12SPKA0-CP2	30	CMOS	2.2 µm	2.2 µm	61-WFBGA	61-ODCSP (6.28x6.65)	1.9 V 2.9 V	1.7 V 2.7 V	-30 °C	70 °C	CSPBGA
ON Semiconductor AR0330CM1C21SUD20
ON Semiconductor AR0330CM1C00SHKA0-CP	60	CMOS	2.2 µm	2.2 µm	64-VFBGA CSPBGA	64-CSP (6.28x6.65)	1.9 V	1.7 V	-30 °C	70 °C
ON Semiconductor AR0330CM1C00SHAA0-DR1	60	CMOS	2.2 µm	2.2 µm	48-CLCC	48-CLCC (11.43x11.43)			-30 ░C	70 °C		1296	2304	1.8 V 2.8 V
ON Semiconductor AR0330CM1C00SHAA0-DR	60	CMOS	2.2 µm	2.2 µm	48-CLCC	48-CLCC (11.43x11.43)	1.9 V	1.7 V	-30 °C	70 °C

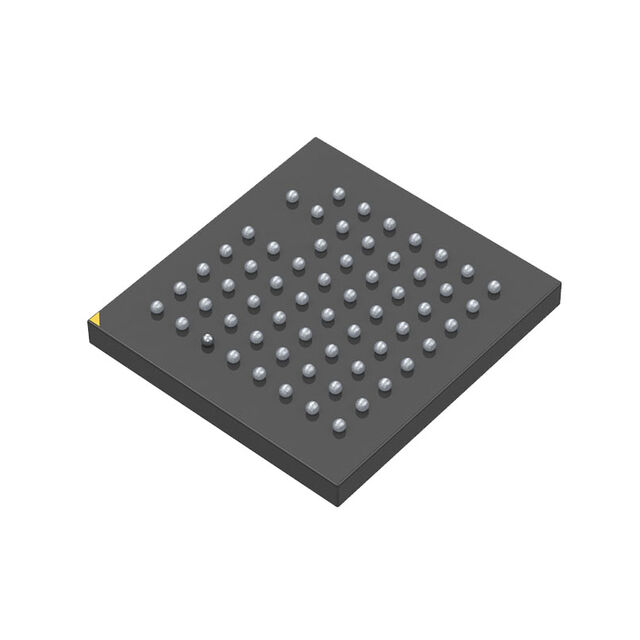

ON Semiconductor AR0330CM1C12SHKA0-CP	60	CMOS	2.2 µm	2.2 µm	64-VFBGA CSPBGA	64-CSP (6.28x6.65)	1.9 V	1.7 V	-30 °C	70 °C		1296	2304
ON Semiconductor AR0330CSSC12SPBA0-DR	30	CMOS	2.2 µm	2.2 µm	48-LCC	48-PLCC	1.9 V	1.7 V	-30 °C	70 °C					11.43	11.43
ON Semiconductor AR0330CM1C12SHKA0-CR	60	CMOS	2.2 µm	2.2 µm	64-VFBGA CSPBGA	64-CSP (6.28x6.65)	1.9 V	1.7 V	-30 °C	70 °C
ON Semiconductor AR0330CS1C12SPKAH3-GEVB																	Board(s)	Image Sensor	AR0330CS

Catalog

CMOS Image Sensor, 3 MP, 1/3"

Key Features

• 2.2 µm pixel with ON Semiconductor A-Pix™ technology

• Full HD support at 60 fps (2304H x 1296V) for maximum video performance

• Superior low-light performance

• 3.4Mp (3:2) and 3.15 Mp (4:3)still images

• Support for external mechanical shutter

• Support for external LED or Xenon flash

• Data interfaces: four-lane serial high-speed pixelinterface (HiSPi™) differential signaling (SLVS), four-lane serial MIPI interface, Parallel

• On-chip phase-locked loop (PLL) oscillator

• Simple two-wire serial interface

• Auto black level calibration

• 12-to-10 bit output A-Law compression

• Slave mode for precise frame-rate control and for synchronizing two sensors

Description

ON Semiconductor's focus on pixel performance excellence provides the foundation for this sensor's exceptional image quality with superior color accuracy, low-light sensitivity, and low noise level. This cost-effective CMOS imaging solution enables high speed image capture capabilities, and includes variable functions, including gain, frame rate, and exposure while maintaining low power consumption.
