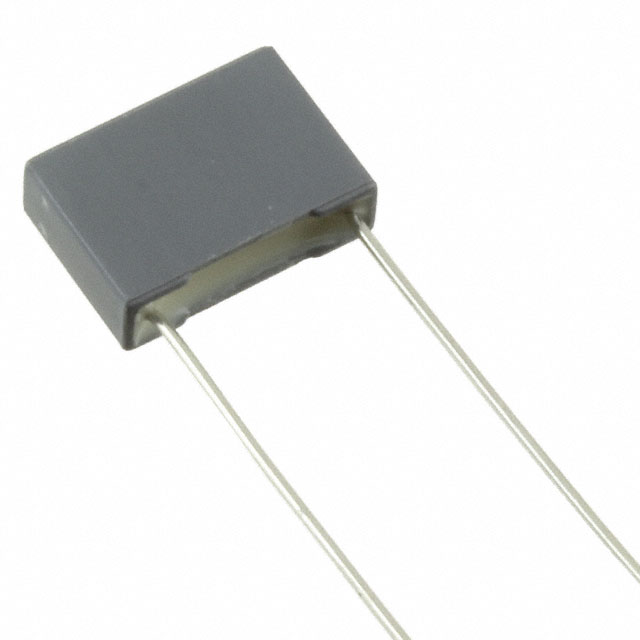

R474F Series

Manufacturer: KEMET

Catalog

CAP FILM 10000PF 10% 1KVDC RAD

Part	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Tolerance	Termination	Mounting Type	Capacitance	Voltage Rating - AC	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
KEMET R474F210050A1KV057	Polypropylene (PP) Metallized	1 kV	1 kVDC	10 %	PC Pins	Through Hole	10000 pF	440 V	AEC-Q200 X1	0.476 "	12.1 mm	-40 C	110 °C	Automotive EMI RFI Suppression	Radial	0.394 in	10 mm
KEMET R474F182050A1KV057	Polypropylene (PP) Metallized	1 kV	1 kVDC	10 %	PC Pins	Through Hole		440 V	AEC-Q200 X1	0.476 "	12.1 mm	-40 C	110 °C	Automotive EMI RFI Suppression	Radial	0.394 in	10 mm
KEMET R474F168050A1M	Polypropylene (PP) Metallized	1 kV	1 kVDC	20 %	PC Pins	Through Hole	6800 pF	440 V	AEC-Q200 X1	0.437 in		-40 C	110 °C	Automotive EMI RFI Suppression	Radial	0.394 in	10 mm	13 mm	0.512 "	5 mm	0.197 "	11.1 mm
KEMET R474F168050A1KV057	Polypropylene (PP) Metallized	1 kV	1 kVDC	10 %	PC Pins	Through Hole	6800 pF	440 V	AEC-Q200 X1	0.437 in		-40 C	110 °C	Automotive EMI RFI Suppression	Radial	0.394 in	10 mm	13 mm	0.512 "	5 mm	0.197 "	11.1 mm
KEMET R474F147050A1KV057	Polypropylene (PP) Metallized	1 kV	1 kVDC	10 %	PC Pins	Through Hole	0.0047 µF	440 V	AEC-Q200 X1		9.1 mm	-40 C	110 °C	Automotive EMI RFI Suppression	Radial	0.394 in	10 mm	13 mm	0.512 "	4 mm	0.157 "		0.358 in
