MX23A18N Series

Catalog

CONN HEADER 18PS R/A REVERSE PIN

Part	Applications	Shrouding	Contact Material	Mounting Type	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Material	Contact Finish - Post	Style	Number of Rows [custom]	Ingress Protection	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Number of Positions	Connector Type	Features	Fastening Type
JAE Electronics MX23A18NFG

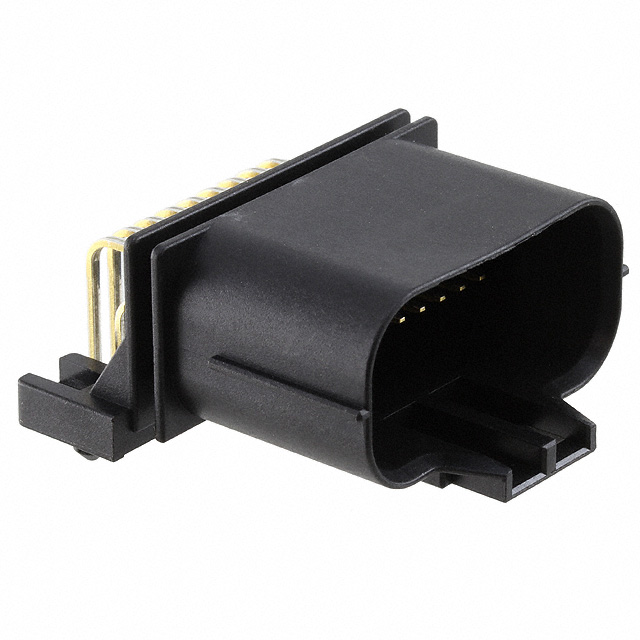

JAE Electronics MX23A18NF2	Automotive	Shrouded - 4 Wall	Brass	Right Angle Through Hole	Male Pin	All	2.5 mm	0.098 in	Square	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Board to Cable/Wire	2	Waterproof	4.4 mm	0.173 "	0.72 in	18.3 mm	125 °C	-40 C	Solder	Black	0.122 in	3.1 mm	3 A	18	Header	Board Guide	Latch Holder
JAE Electronics MX23A18NF3	Automotive	Shrouded - 4 Wall	Brass	Right Angle Through Hole	Male Pin	All	2.5 mm	0.098 in	Square	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Board to Cable/Wire	2	Waterproof	4.4 mm	0.173 "	0.72 in	18.3 mm	125 °C	-40 C	Solder	Black	0.122 in	3.1 mm	3 A	18	Header	Mounting Flange	Latch Holder

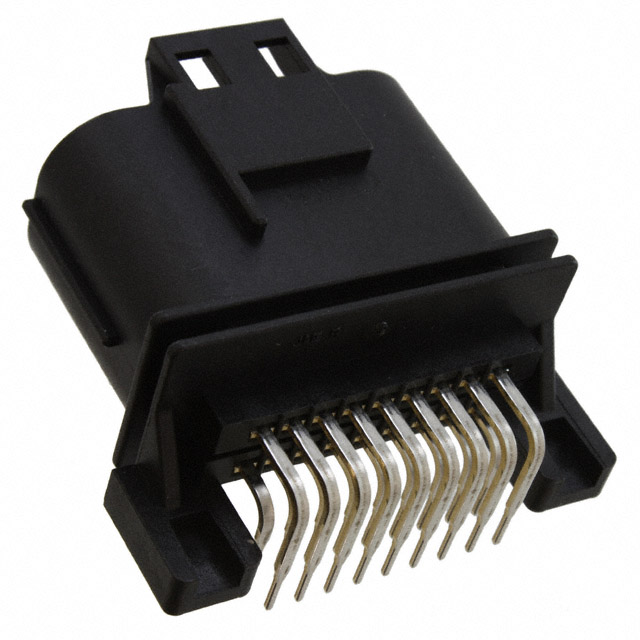

JAE Electronics MX23A18NF1	Automotive	Shrouded - 4 Wall	Brass	Right Angle Through Hole	Male Pin	All	2.5 mm	0.098 in	Square	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Board to Cable/Wire	2	Waterproof	4.4 mm	0.173 "	0.72 in	18.3 mm	125 °C	-40 C	Solder	Black	0.122 in	3.1 mm	3 A	18	Header	Board Guide	Latch Holder
