PSR1635 Series

Catalog

CABLE FLAT FLEX 14COND 0.100"

Part	Voltage Rating	Wire Gauge	Current Rating (Amps)	Operating Temperature	Conductor Thickness	Conductor Thickness	Cable Width	Cable Width	Pitch	Pitch	Cable Length	Cable Length	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Cable Width [x]	Cable Width [x]
Parlex USA LLC PSR1635-14	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	38.1 mm	1.5 in	0.1 "	2.54 mm	5 ft 10 ft 25 ft 50 ft 100 ' 250 ft 500 ft	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	14	Polyester

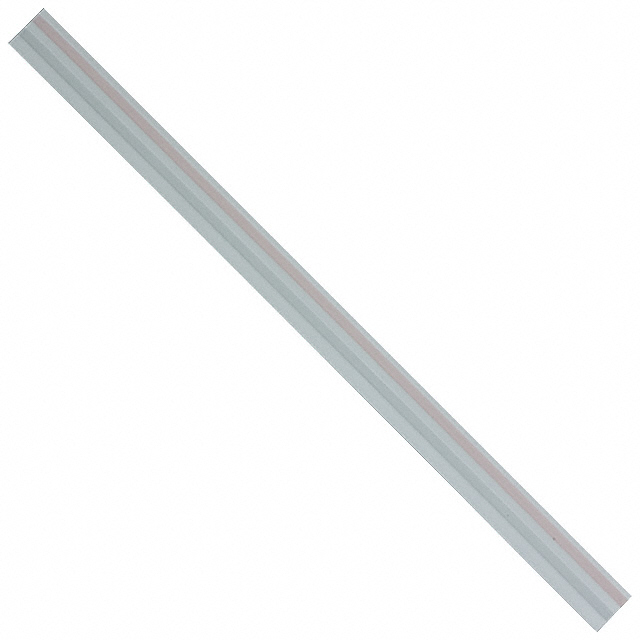

Parlex USA LLC PSR1635-02	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	7.57 mm	0.3 in	0.1 "	2.54 mm	5 ft 10 ft 25 ft 50 ft 100 ' 250 ft 500 ft	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	2	Polyester

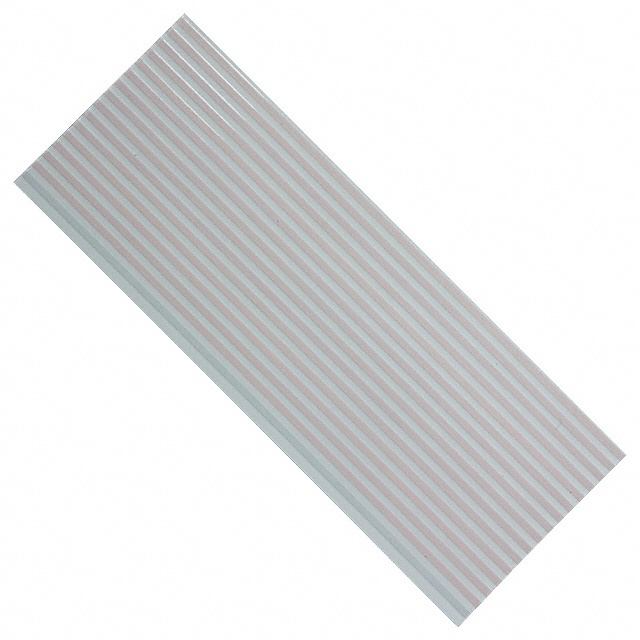

Parlex USA LLC PSR1635-16	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	43.18 mm	1.7 in	0.1 "	2.54 mm	5 ft 10 ft 25 ft 50 ft 100 ' 250 ft 500 ft	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	16	Polyester
Parlex USA LLC PSR1635-35	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	91.44 mm	3.6 in	0.1 "	2.54 mm	500 ft	152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	35	Polyester

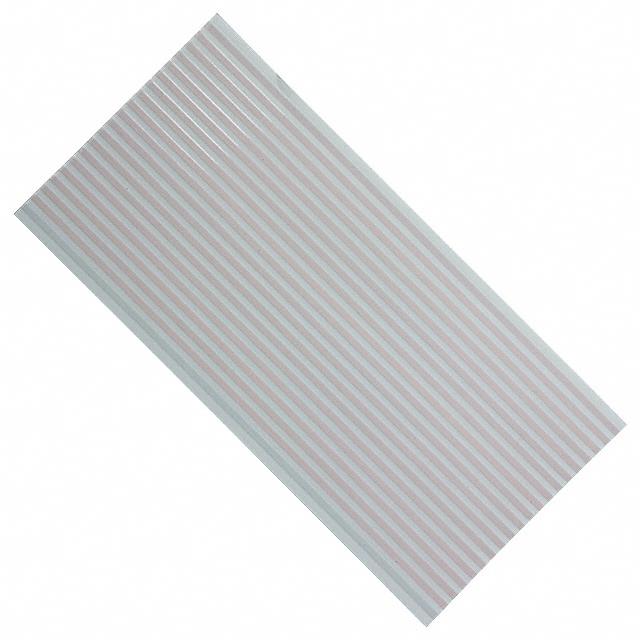

Parlex USA LLC PSR1635-20	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in			0.1 "	2.54 mm	5 ft 10 ft 25 ft 50 ft 100 ' 250 ft 500 ft	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	20	Polyester	53.34 mm	2.1 in
Parlex USA LLC PSR1635-19	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	50.8 mm	2 in	0.1 "	2.54 mm	500 ft	152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	19	Polyester
Parlex USA LLC PSR1635-24	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in			0.1 "	2.54 mm	500 ft	152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	24	Polyester	63.5 mm	2.5 "

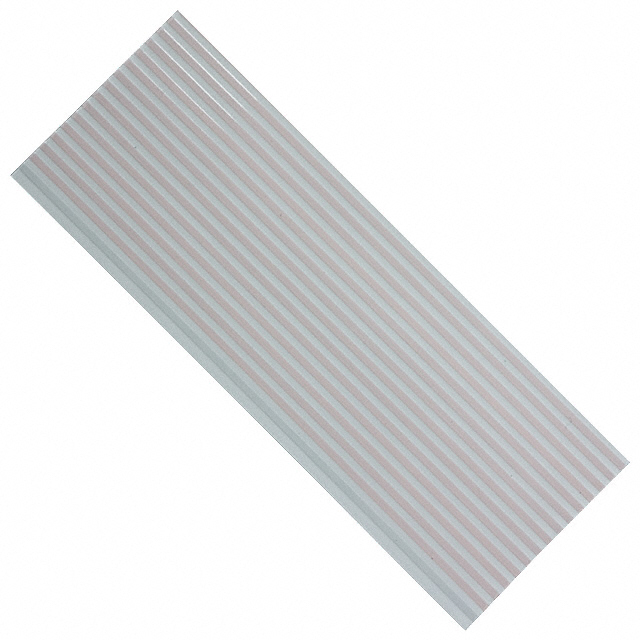

Parlex USA LLC PSR1635-15	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	40.64 mm	1.6 in	0.1 "	2.54 mm	5 ft 10 ft 25 ft 50 ft 100 ' 250 ft 500 ft	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	15	Polyester

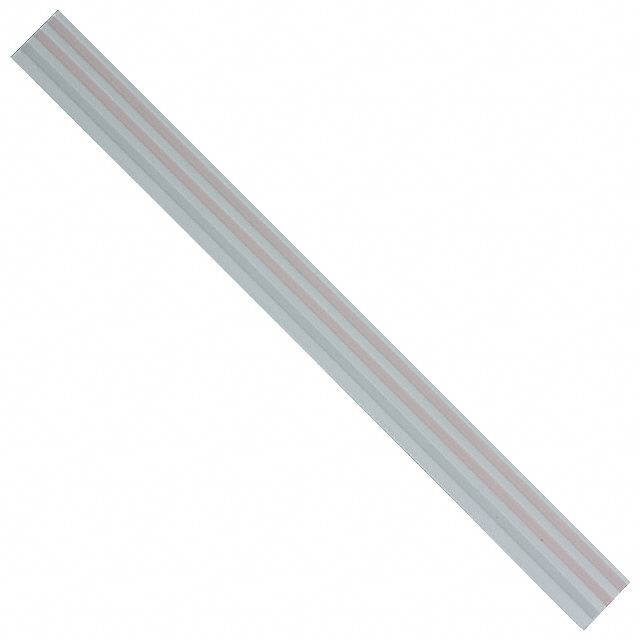

Parlex USA LLC PSR1635-03	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	10.16 mm	0.4 in	0.1 "	2.54 mm	5 ft 10 ft 25 ft 50 ft 100 ' 250 ft 500 ft	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	3	Polyester

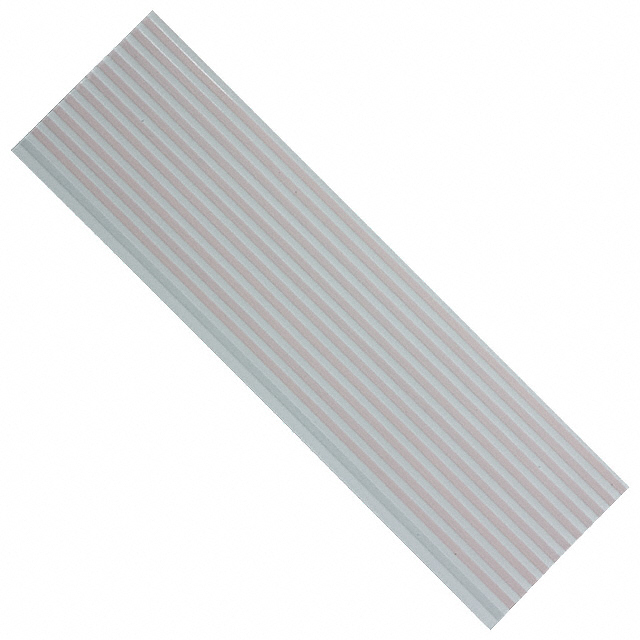

Parlex USA LLC PSR1635-12	300 VDC	27 AWG	3 A	105 C	0.08 mm	0.003 in	33.02 mm	1.3 in	0.1 "	2.54 mm	5 ft 10 ft 25 ft 50 ft 100 ' 250 ft 500 ft	1.52 m 3.05 m 7.62 m 15.24 m 30.5 m 76.2 m 152.4 m	UL Style 2643	0.05 mm	0.002 in	Conductor 1 Tinned	Copper Bare	12	Polyester
