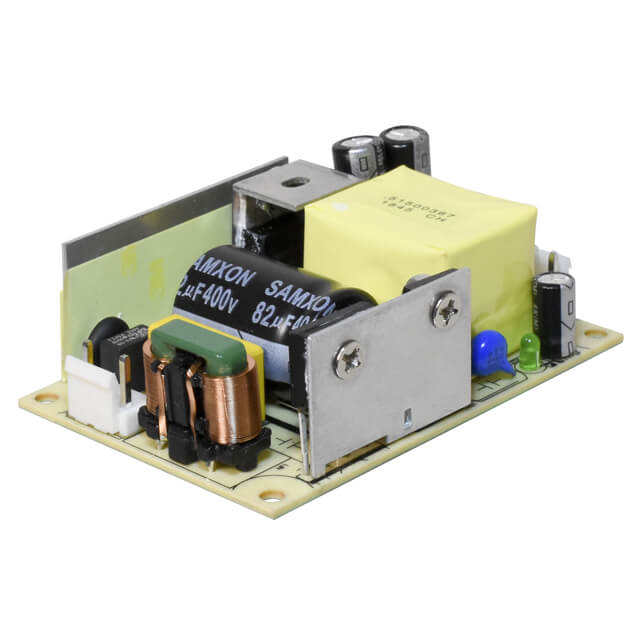

VOF-65C Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 15V 65W
| Part | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | Type | Efficiency | Current - Output 1 | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Approval Agency | Number of Outputs | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Universal Input | Chassis Mount | 70 °C | -25 °C | 3000 V | 55024 55032 Class A 62368-1 | 85 VAC 100 V | 264 VAC 370 VDC | Open Frame | 85 % | 4.34 A | ITE (Commercial) | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 15 V | CB Scheme EN IEC UL | 1 | |
CUI Inc. | Universal Input | Chassis Mount | 70 °C | -25 °C | 3000 V | 55024 55032 Class A 62368-1 | 85 VAC 100 V | 264 VAC 370 VDC | Open Frame | 80 % | 10 A | ITE (Commercial) | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 5 V | CB Scheme EN IEC UL | 1 | 50 W |
CUI Inc. | Universal Input | Chassis Mount | 70 °C | -25 °C | 3000 V | 55024 55032 Class A 62368-1 | 85 VAC 100 V | 264 VAC 370 VDC | Open Frame | 87 % | 1.36 A | ITE (Commercial) | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 48 V | CB Scheme EN IEC UL | 1 |
