Kmr20 Series Series

Microminiature SMT Top Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Microminiature SMT Top Actuated

Part	Switch Function	Circuit	Switch Travel	Mechanical Life	Contact Rating @ Voltage	Operating Force	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Outline [x]	Outline [y]	Mounting Type	Features	Termination Style	Actuator Height off PCB, Vertical	Actuator Orientation
Littelfuse/Commercial Vehicle Products KMR233GLFG	Off-Mom	SPST-NO	0.25 mm	150000 Cycles	0.01 A 32 VDC	300 gf	Standard	125 °C	-40 °C	Non-Illuminated	4.6 mm	2.8 mm	Surface Mount	Grounding Pin	Gull Wing	1.9 mm	Top Actuated
Littelfuse/Commercial Vehicle Products KMR211NGLFS
Littelfuse/Commercial Vehicle Products KMR223NGULCLFG	Off-Mom	SPST-NO	0.25 mm	200000 Cycles	0.01 A 32 VDC	200 gf	Standard	125 °C	-40 °C	Non-Illuminated	4.6 mm	2.8 mm	Surface Mount		SMD (SMT) Tab	1.9 mm	Top Actuated
Littelfuse/Commercial Vehicle Products KMR231GLFS	Off-Mom	SPST-NO	0.25 mm	150000 Cycles	0.05 A	300 gf	Standard	85 °C	-40 °C	Non-Illuminated	4.6 mm	2.8 mm	Surface Mount	Grounding Pin	Gull Wing	1.9 mm	Top Actuated
Littelfuse/Commercial Vehicle Products KMR221GULCLFS	Off-Mom	SPST-NO	0.25 mm	200000 Cycles	0.05 A	200 gf	Standard	85 °C	-40 °C	Non-Illuminated	4.6 mm	2.8 mm	Surface Mount	Grounding Pin	Gull Wing	1.9 mm	Top Actuated

Catalog

Microminiature SMT Top Actuated

Key Features

• Ultra low current capabilities

• Excellent tactile feel

• Long Life version

Description

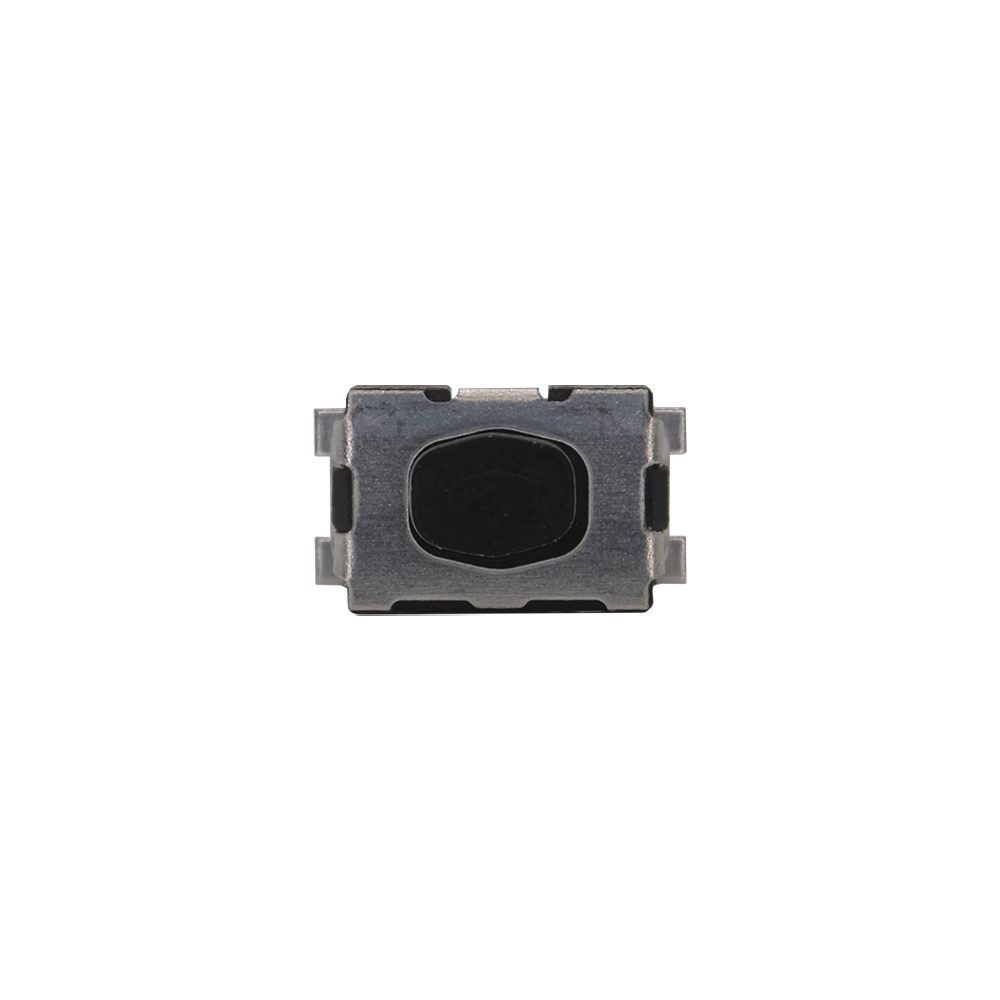

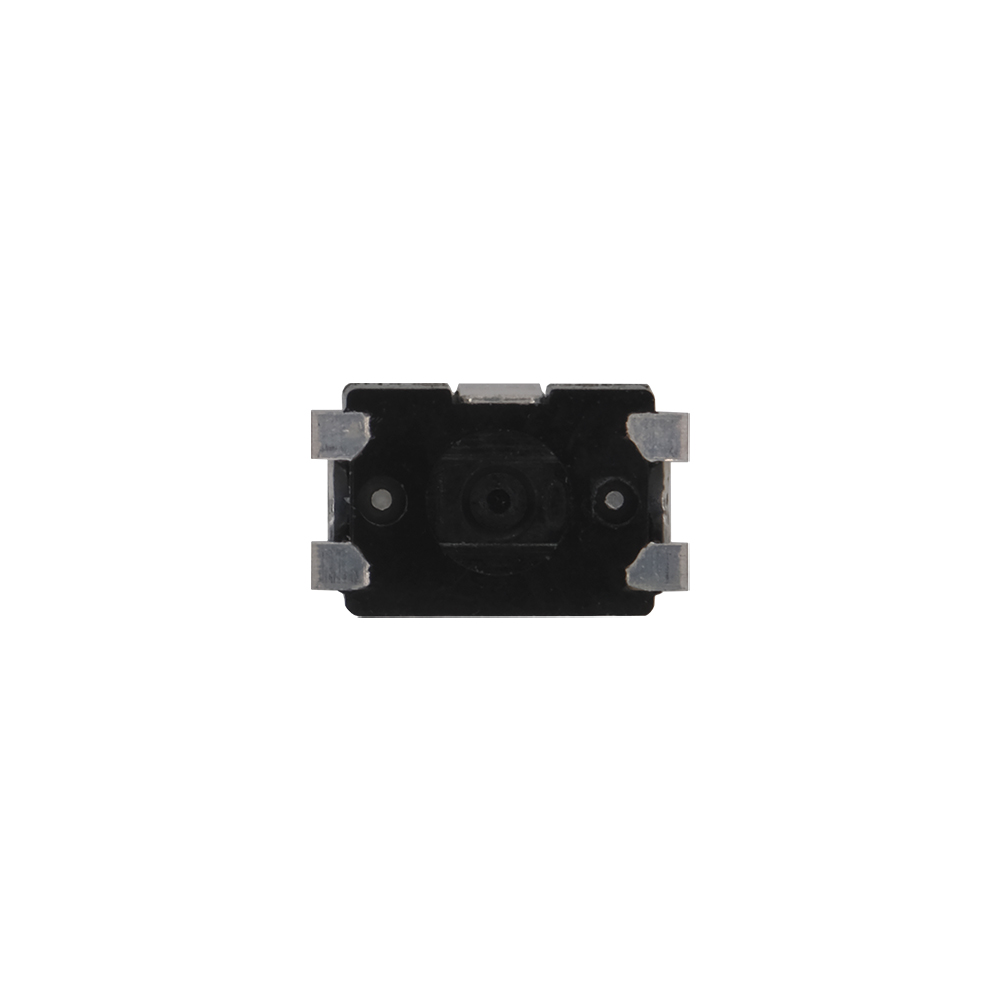

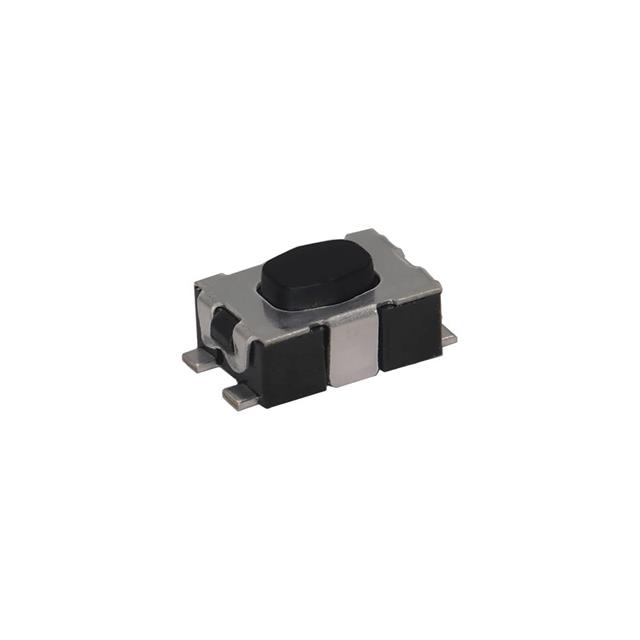

C&K’s KMR2 series microminiature SMT top actuated switch is built to be highly responsive with its excellent tactile feel and is long-lasting to withstand harsh environments. It has ultra-low current capabilities and is ideal for industrial, medical and automotive applications.
