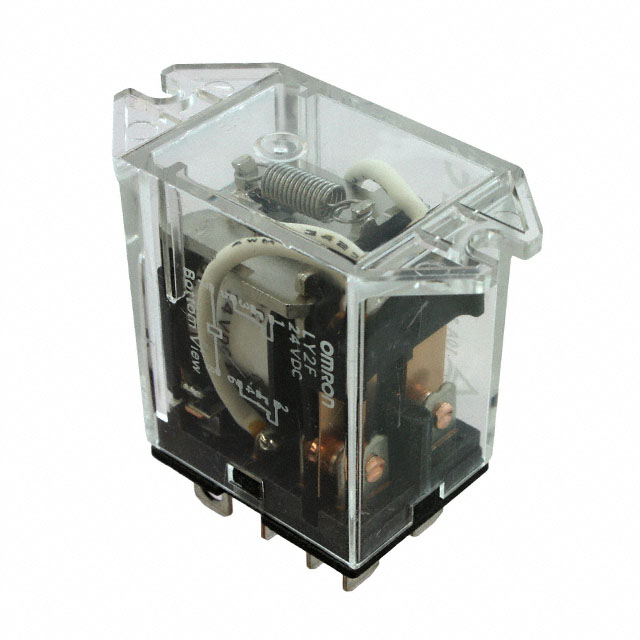

LY2ZF-AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 24V
| Part | Must Operate Voltage | Coil Current | Must Release Voltage | Coil Voltage | Termination Style | Release Time | Contact Form | Mounting Type | Contact Rating (Current) | Coil Resistance | Load - Max Switching | Contact Material | Relay Type | Coil Type | Approval Agency | Operate Time | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 19.2 VAC | 46 mA | 7.2 VAC | 24 VAC | Plug In | 25 ms | DPDT (2 Form C) | Chassis Mount | 5 A | 180 Ohms | 625 W 1250 VA | Silver Alloy | General Purpose | Non Latching | CE CSA TUV UR | 25 ms | 125 VDC 250 VAC | 55 °C | -25 °C |
