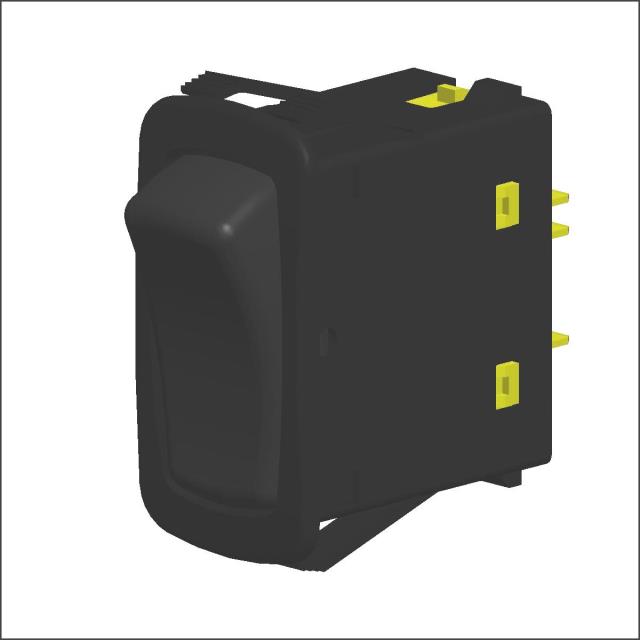

L16D1S001 Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER SPDT 20A 12V
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Type | Current Rating (Amps) | Mounting Type | Circuit | Ingress Protection | Mechanical Life | Voltage Rating - DC | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies | 100000 Cycles | 85 °C | -40 °C | On-Off-On | Actuator Arm Cap Required | 20 A | Panel Mount Snap-In | SPDT | IP67 - Dust Tight Waterproof | 100000 Cycles | 12 V | No Marking | 44.04 mm | 22.02 mm | Quick Connect - 0.250" (6.3mm) | |
Carling Technologies | 100000 Cycles | 85 °C | -40 °C | On-Off-On | Paddle | 20 A | Panel Mount Snap-In | SPDT | IP67 - Dust Tight Waterproof | 100000 Cycles | 12 V | Low Beam Vertical | 44.04 mm | 22.02 mm | Quick Connect - 0.250" (6.3mm) | Black |
 Carling Technologies | 100000 Cycles | 85 °C | -40 °C | On-Off-On | Concave (Curved) | 20 A | Panel Mount Snap-In | SPDT | IP67 - Dust Tight Waterproof | 100000 Cycles | 12 V | No Marking | 44.04 mm | 22.02 mm | Quick Connect - 0.250" (6.3mm) | Black |
Carling Technologies | 100000 Cycles | 85 °C | -40 °C | On-Off-On | Concave (Curved) | 20 A | Panel Mount Snap-In | SPDT | IP67 - Dust Tight Waterproof | 100000 Cycles | 12 V | Low Beam Vertical | 44.04 mm | 22.02 mm | Quick Connect - 0.250" (6.3mm) | Black |
