325-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K

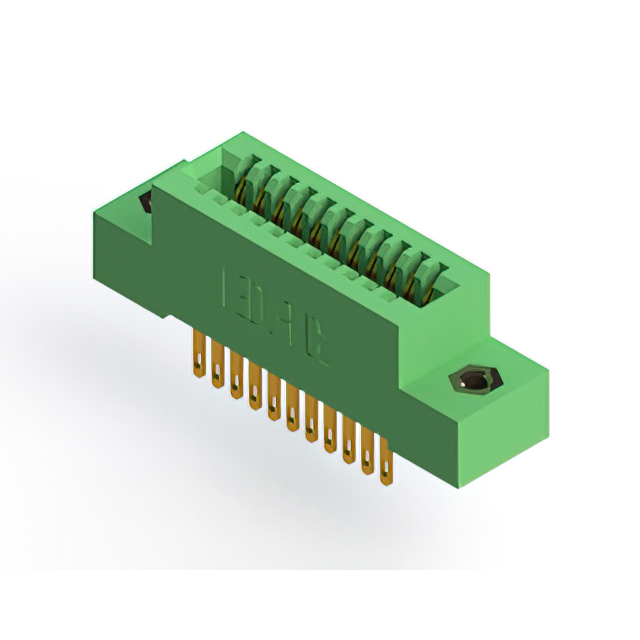

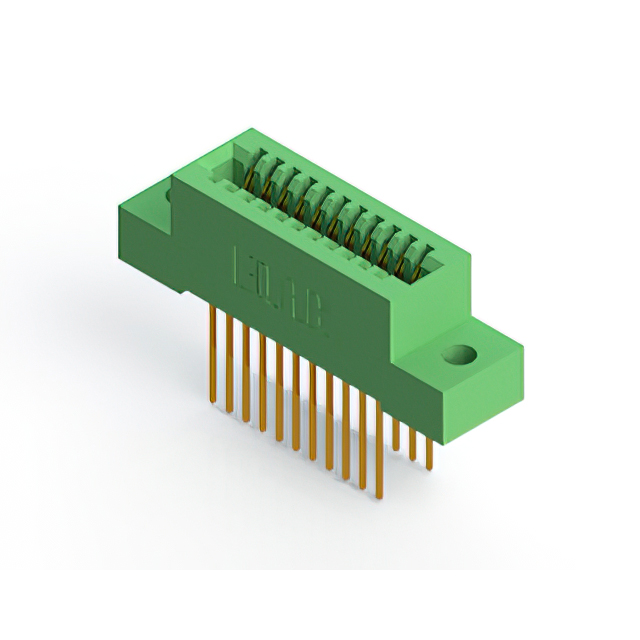

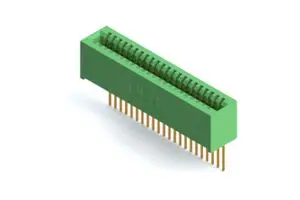

CONN EDGE DUAL FMALE 22POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Pitch | Pitch | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Type | Card Thickness | Card Thickness | Number of Positions | Color | Number of Rows [custom] | Gender | Mounting Type | Contact Material | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 11 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | 0.1 " | 2.54 mm | Gold | -65 ░C | 125 °C | Dual | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 22 | Green | 2 | Female | Through Hole | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 11 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 0.25 Ám | 10 Áin | Cantilever | 0.1 " | 2.54 mm | Gold | -65 ░C | 125 °C | Dual | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 22 | Green | 2 | Female | Through Hole | Copper Alloy | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 22 | Wire Wrap | 0.25 Ám | 10 Áin | Cantilever | 0.1 " | 2.54 mm | Gold | -65 ░C | 125 °C | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | 22 | Green | Female | Through Hole | Copper Alloy | 1 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 11 | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Cantilever | 0.1 " | 2.54 mm | Gold | -65 ░C | 125 °C | Dual | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 22 | Green | 2 | Female | Through Hole | Copper Alloy | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 22 | Flush Mount M3 Threaded Insert Top Opening | Solder | 0.25 Ám | 10 Áin | Cantilever | 0.1 " | 2.54 mm | Gold | -65 ░C | 125 °C | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | 22 | Green | Female | Through Hole | Copper Alloy | 1 | 1 | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 22 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 0.25 Ám | 10 Áin | Cantilever | 0.1 " | 2.54 mm | Gold | -65 ░C | 125 °C | Single | Non Specified - Single Edge | 3.18 mm | 0.125 in | 22 | Green | Female | Through Hole | Copper Alloy | 1 | 1 |
