HCPL-315 Series

Catalog

OPTOISO 5KV 2CH GATE DVR 16SO

Part	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Pulse Width Distortion (Max) [Max]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Technology	Number of Channels [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case	Mounting Type	Current - Peak Output	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - DC Forward (If) (Max) [Max]	Approval Agency	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Forward (Vf) (Typ)

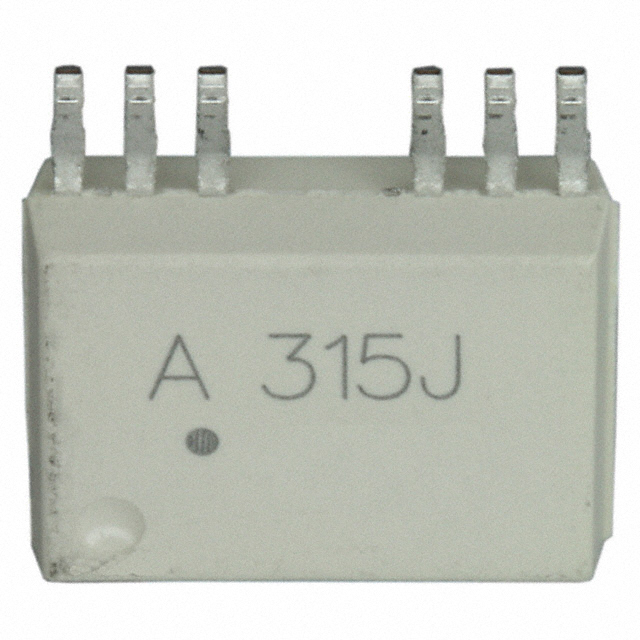

Broadcom Limited HCPL-315J-000E	15 kV/µs	16-SO	100 °C	-40 °C	300 ns	15 V	30 V	Optical Coupling	2	100 ns	100 ns	0.295 in	7.5 mm	16-SOIC	12	Surface Mount	600 mA	500 mA	500 mA	25 mA	CSA IEC/EN/DIN UR	500 ns	500 ns	1.6 V
