071 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 6.88"L X 4.88"W

Part	Weight	Weight	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Design	Material	Thickness	Thickness	Material Flammability Rating	Height [z]	Height [z]	Color	Container Type	Ratings	Area (L x W)	Area (L x W)

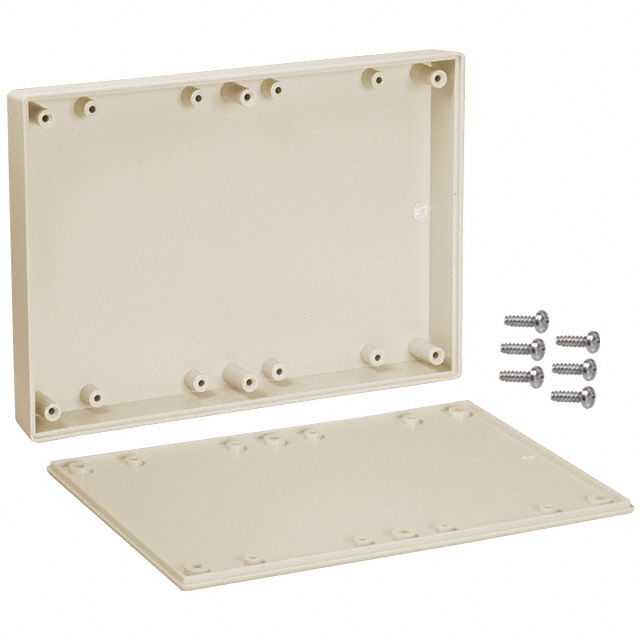

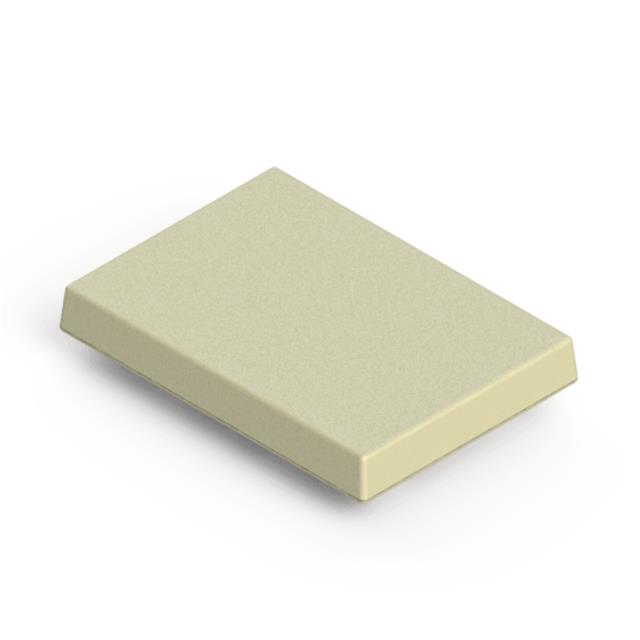

Serpac 071,AL	139.71 g	0.308 lb	PCB Supports	6.88 in	123.95 mm	174.75 mm	4.88 in	Cover Included Hand Held	ABS Plastic	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Almond	Box	IP40 NEMA 1	217 cm²	33.6 in²

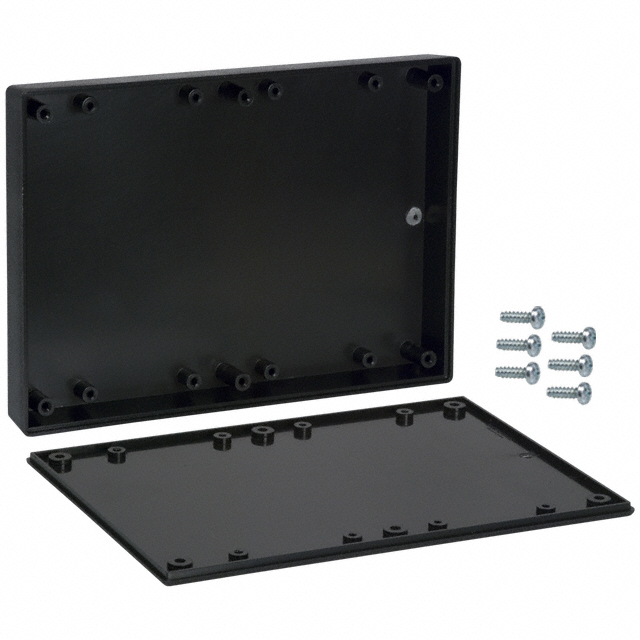

Serpac 071,BK	139.71 g	0.308 lb	PCB Supports	6.88 in	123.95 mm	174.75 mm	4.88 in	Cover Included Hand Held	ABS Plastic	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Black	Box	IP40 NEMA 1	217 cm²	33.6 in²

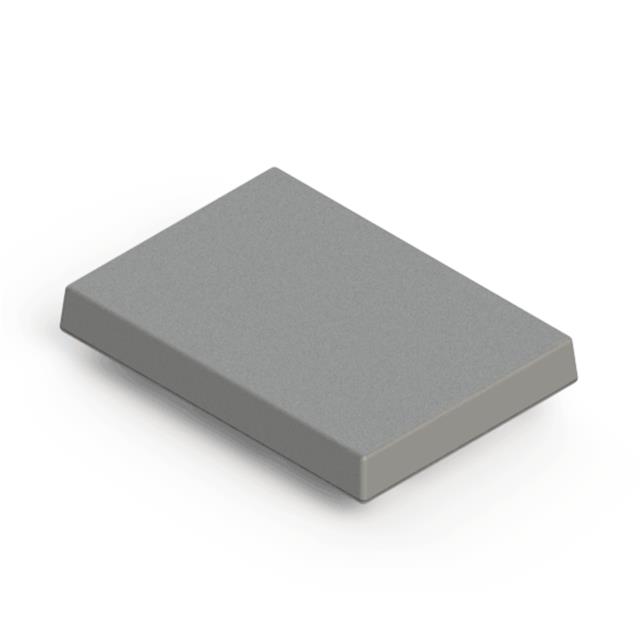

Serpac 071,GY	139.71 g	0.308 lb	PCB Supports	6.88 in	123.95 mm	174.75 mm	4.88 in	Cover Included Hand Held	ABS Plastic	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Gray	Box	IP40 NEMA 1	217 cm²	33.6 in²
Serpac 071,BK-BULK	139.71 g	0.308 lb	PCB Supports	6.88 in	123.95 mm	174.75 mm	4.88 in	Cover Included Hand Held	ABS Plastic	2.54 mm	0.1 in	UL94 HB	22.86 mm	0.9 in	Black	Box	IP40 NEMA 1	217 cm²	33.6 in²
