79203 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

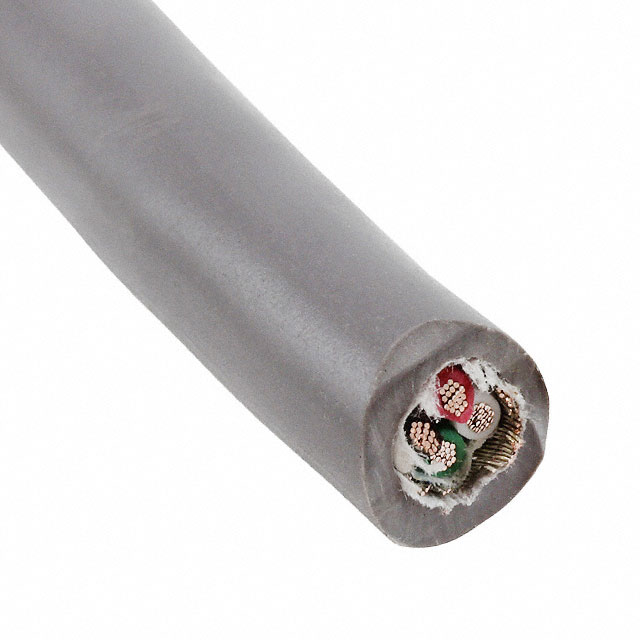

CABLE 4COND 20AWG SLATE SHLD
| Part | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Voltage | Shield Coverage | Ratings | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Material | Wire Gauge | Shield Material | Shield Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | 0.889 mm | 0.035 in | Slate | 600 V | 70 % 100 % | ISO 10993 | 30.5 m | 100 ft | 0.239 in | 6.07 mm | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | 20 AWG | Copper Tinned Suprashield® | Braid Foil | Biological Compatibility | 30 AWG | 10 | Copper Tinned | 4 | ||
 ALPHA WIRE | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | 0.889 mm | 0.035 in | Slate | 600 V | 70 % 100 % | ISO 10993 | 0.239 in | 6.07 mm | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | 20 AWG | Copper Tinned Suprashield® | Braid Foil | Biological Compatibility | 30 AWG | 10 | Copper Tinned | 4 | 1000 ft | 304.8 m | ||
ALPHA WIRE | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | 0.889 mm | 0.035 in | Slate | 600 V | 70 % 100 % | ISO 10993 | 0.239 in | 6.07 mm | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | 20 AWG | Copper Tinned Suprashield® | Braid Foil | Biological Compatibility | 30 AWG | 10 | Copper Tinned | 4 |
