FFSD-12 Series

Catalog

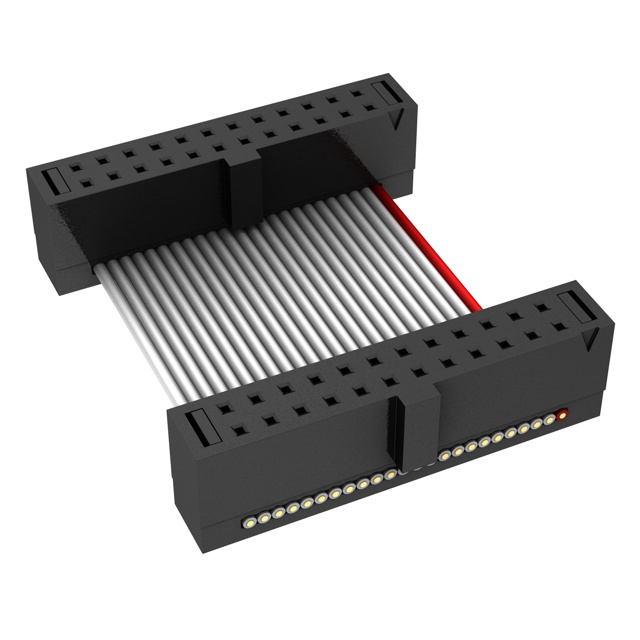

.050 X .050 C.L. FEMALE IDC ASSE

Part	Pitch - Cable [x]	Pitch - Cable	Number of Rows	Shielding	Cable Termination	Pitch - Connector	Pitch - Connector	Features	Connector Type	Number of Positions	Length [x]	Length [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length	Length	Length	Length
Samtec Inc. FFSD-12-D-13.00-01-N	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key	Socket to Socket	24	330.2 mm	1.08 '	Gold	10 Áin	0.25 Ám
Samtec Inc. FFSD-12-D-02.50-01-N	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key	Socket to Socket	24	63.5 mm	2.496 in	Gold	10 Áin	0.25 Ám	2.5 in
Samtec Inc. FFSD-12-S-17.00-01-N	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key	Socket to Cable	24	432 mm	1.42 ft	Gold	10 Áin	0.25 Ám
Samtec Inc. FFSD-12-D-06.00-01-N-SR	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key Strain Relief	Socket to Socket	24			Gold	10 Áin	0.25 Ám		152.4 mm	6 "	0.5 '
Samtec Inc. FFSD-12-D-12.00-01-N-SR	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key Strain Relief	Socket to Socket	24			Gold	10 Áin	0.25 Ám		304.8 mm			1 ft
Samtec Inc. FFSD-12-S-05.90-01-N	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key	Socket to Cable	24			Gold	10 Áin	0.25 Ám		149.86 mm	5.9 in		0.492 ft
Samtec Inc. FFSD-12-S-17.50-01-N	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key	Socket to Cable	24	444.5 mm	1.46 ft	Gold	10 Áin	0.25 Ám
Samtec Inc. FFSD-12-D-27.00-01-N	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key	Socket to Socket	24			Gold	10 Áin	0.25 Ám		685.8 mm			2.25 ft
Samtec Inc. FFSD-12-S-05.00-01-N	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key	Socket to Cable	24	127 mm	0.417 '	Gold	10 Áin	0.25 Ám	5 "
Samtec Inc. FFSD-12-D-02.00-01-N-R	0.025 in	0.64 mm	2	Unshielded	IDC	0.05 in	1.27 mm	Polarizing Key Reverse Wiring	Socket to Socket Reversed	24			Gold	10 Áin	0.25 Ám		50.8 mm	2 "		0.167 '
