Corcom P Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MAINS POWER CONNECTOR, 115/230VA

Part	Mounting Type	Switch Features	Features	Current Rating - Appliance Inlet	Filter Type	Fuse Holder, Drawer	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Connector Style	Termination	Termination	Termination	Current Rating - Filter	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Connector Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions
TE Connectivity AMP Connectors PS0SXSS3B
TE Connectivity AMP Connectors PM0S0SM3E	Flange Panel Mount	Switch On-Off	Conversion Clip Shielded	3 A	Filtered (EMI RFI) - Commercial	Fuse Holder	55.91 mm	28.45 mm	CSA UL VDE	IEC 320-C14	Quick Connect	0.187 "	4.7 mm	3 A	120 VAC	250 VAC	Receptacle Male Blades - Module

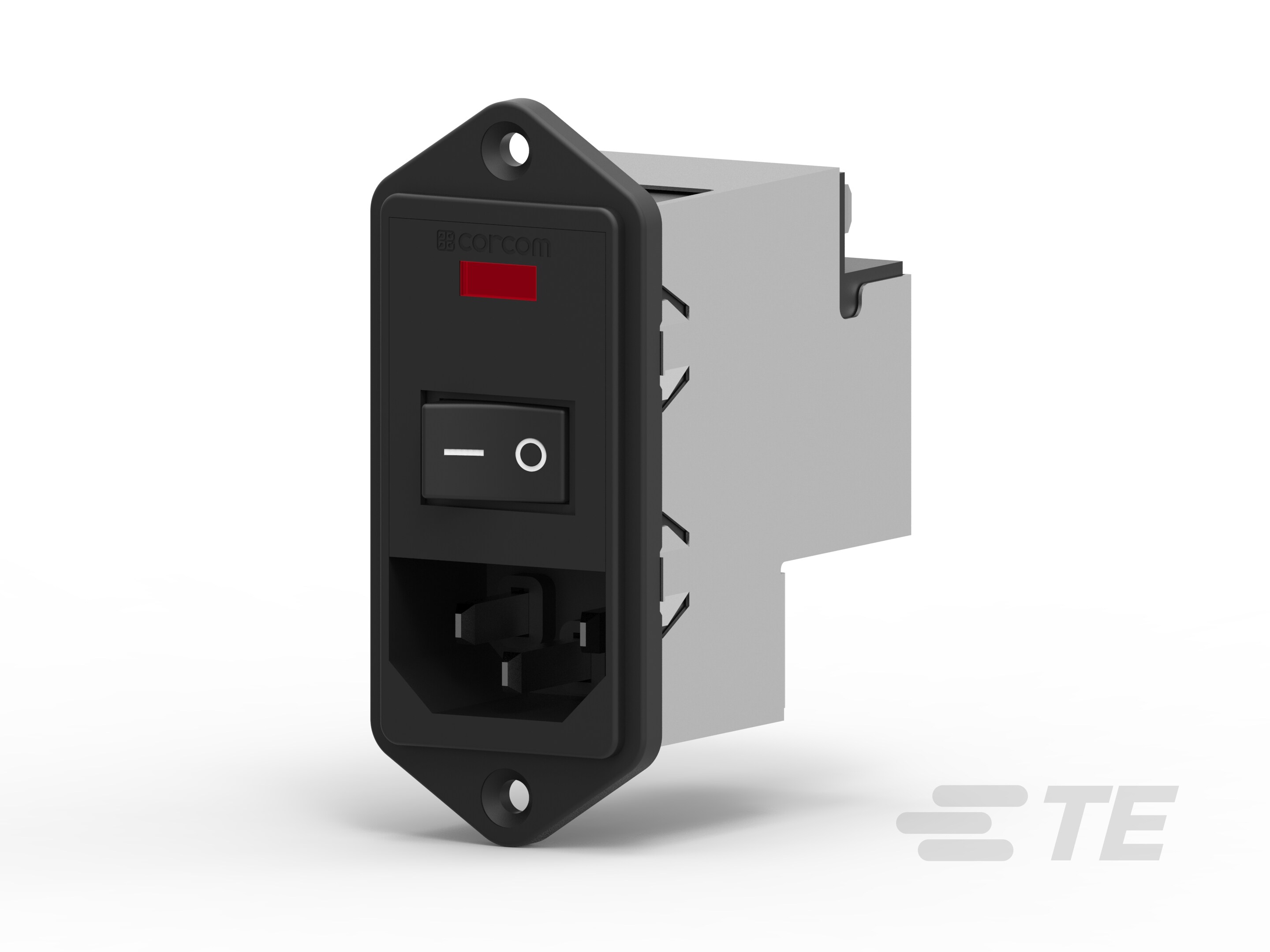

TE Connectivity AMP Connectors PM0S0DH6B
TE Connectivity AMP Connectors PS0S0SMXE	Panel Mount Snap-In	Switch On-Off	Conversion Clip Shielded	10 A	Filtered (EMI RFI) - Commercial	Fuse Holder			CSA UL VDE	IEC 320-C14	Quick Connect	0.187 "	4.7 mm	10 A	120 VAC	250 VAC	Receptacle Male Blades - Module	0.79 mm	2.9 mm	0.031 "	0.114 in	Variable Size
TE Connectivity AMP Connectors PM0SXSH3B

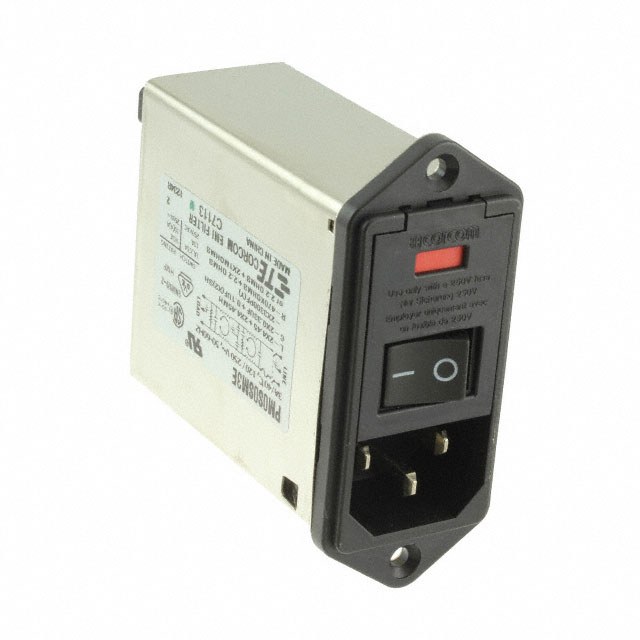

TE Connectivity AMP Connectors PM0S0SMXE	Flange Panel Mount	Switch On-Off	Conversion Clip Shielded	10 A	Filtered (EMI RFI) - Commercial	Fuse Holder	55.91 mm	28.45 mm	CSA UL VDE	IEC 320-C14	Quick Connect	0.187 "	4.7 mm	10 A	120 VAC	250 VAC	Receptacle Male Blades - Module

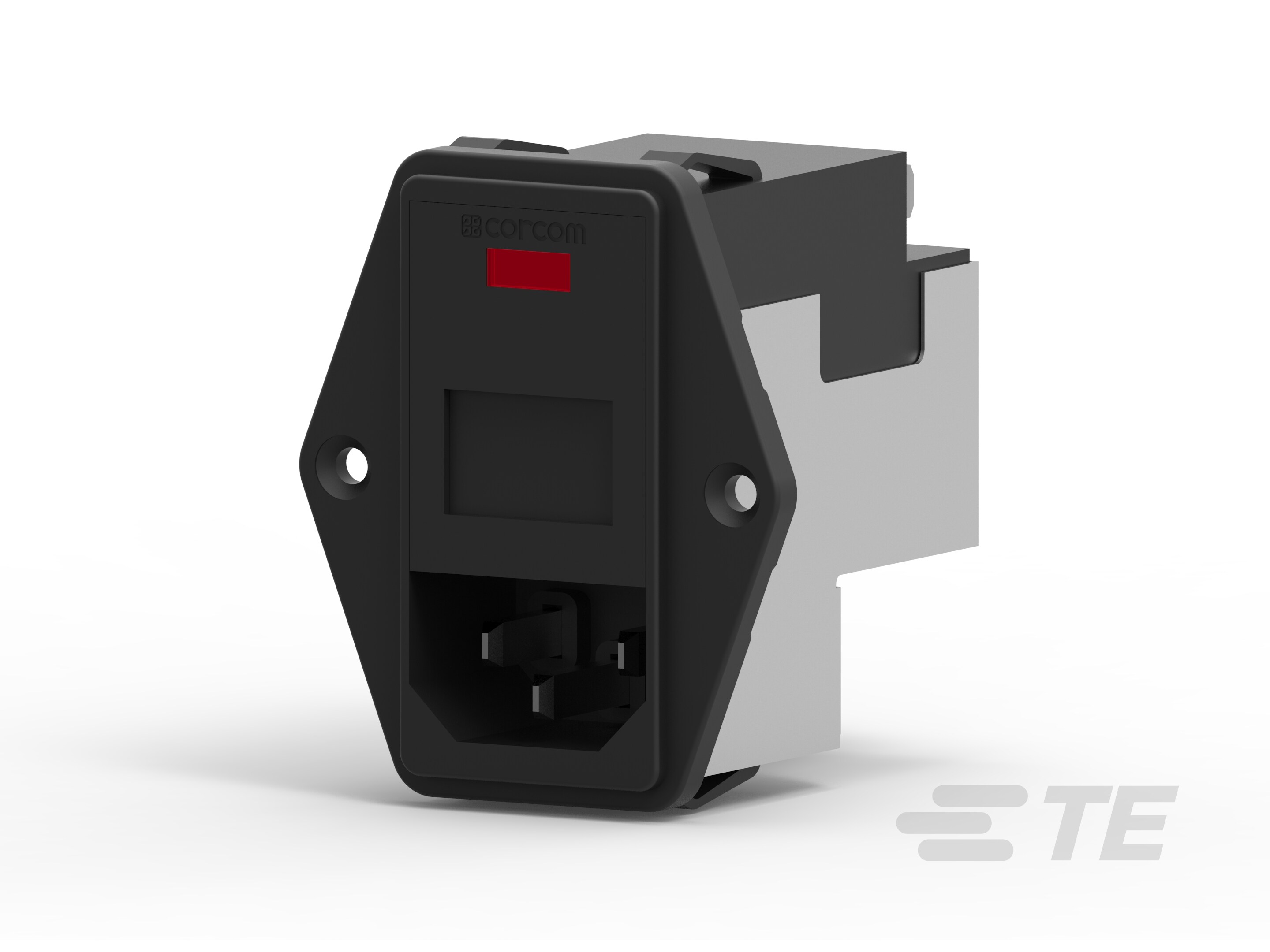

TE Connectivity AMP Connectors PE000DS6A

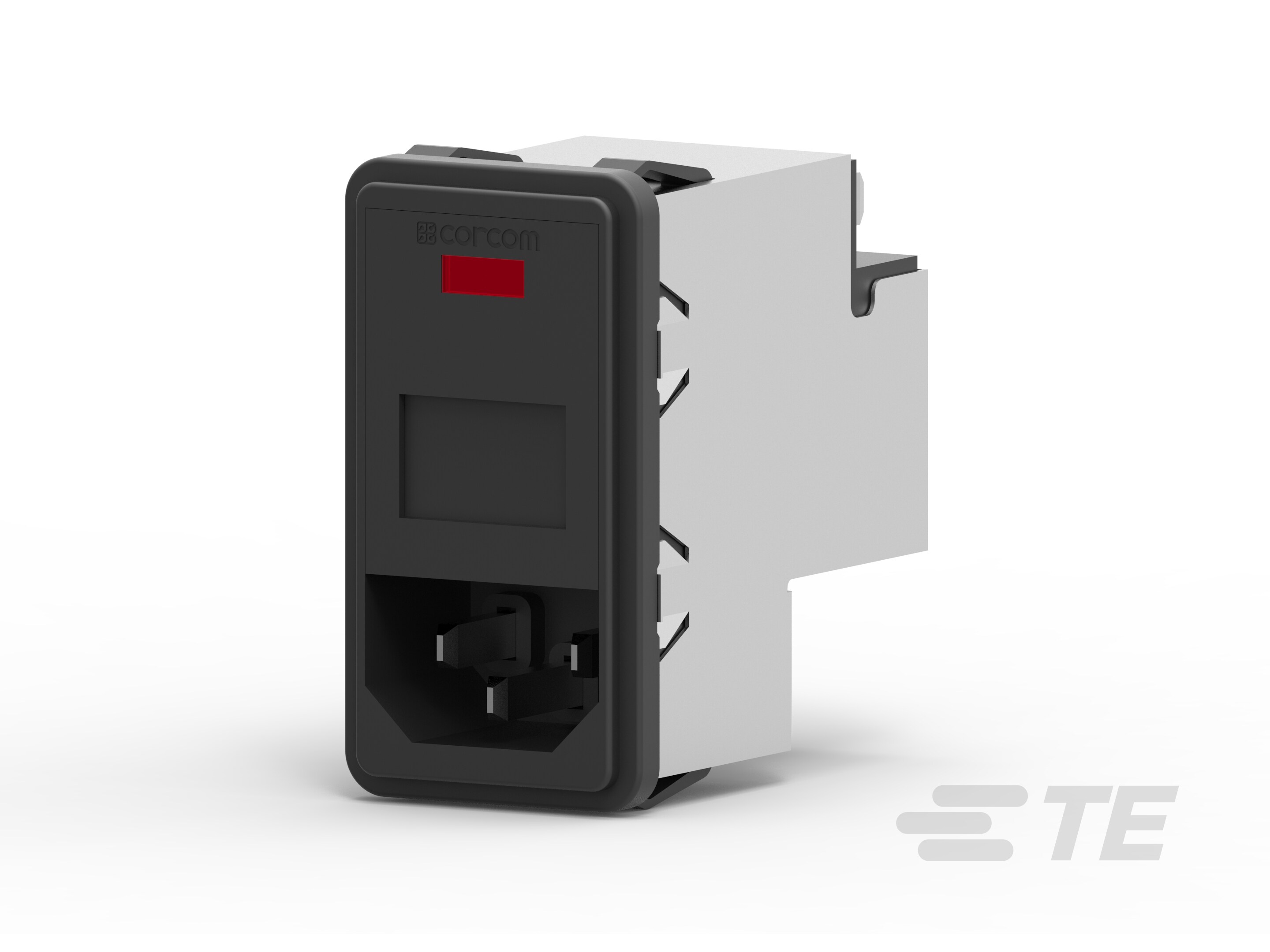

TE Connectivity AMP Connectors PS000DS6B

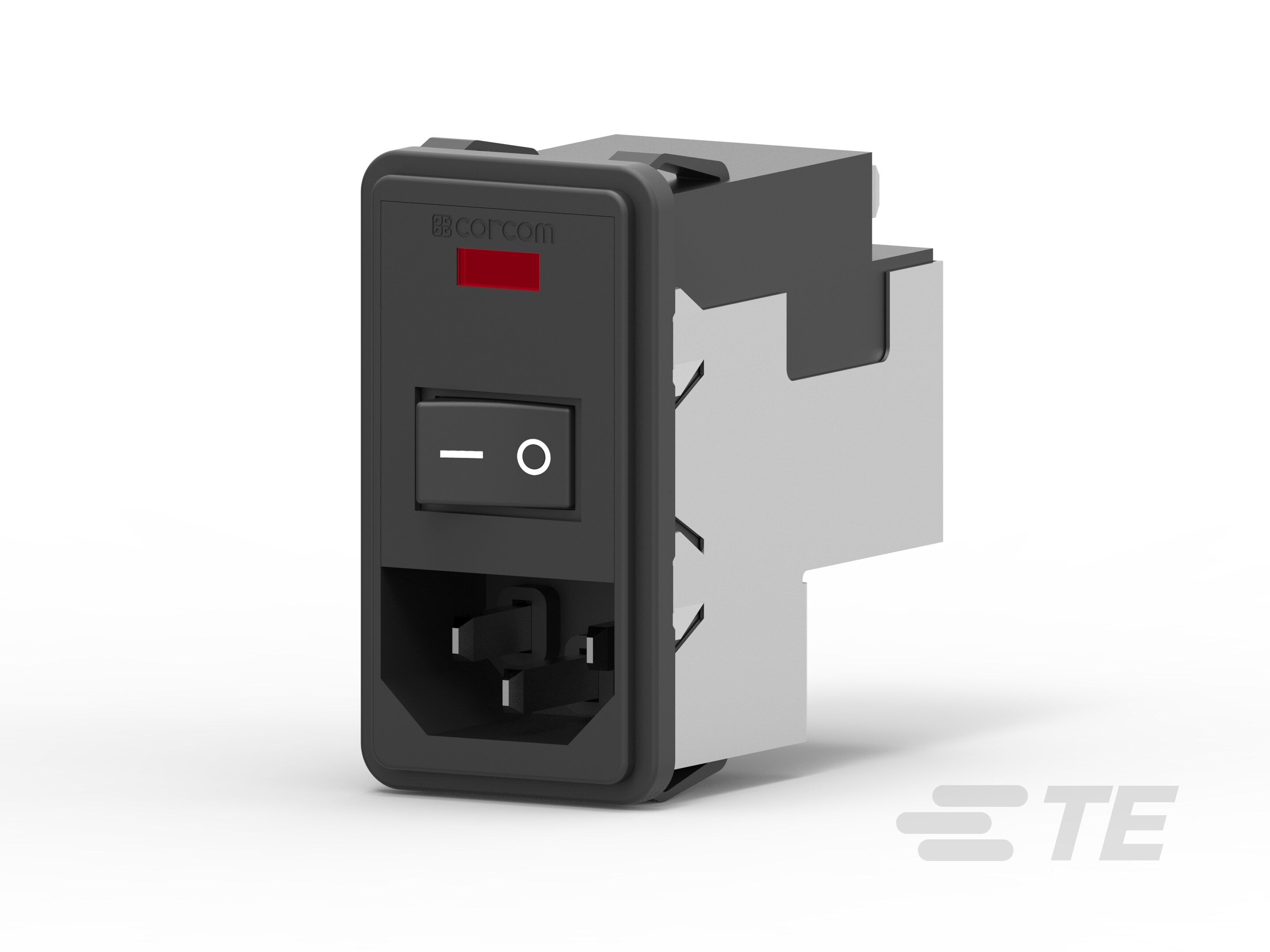

TE Connectivity AMP Connectors PS0S0DSXA
TE Connectivity AMP Connectors PM0S0DSX0
