160860 Series

Catalog

CONN QC RCPT 17-20AWG 0.250

Part	Contact Material	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Gender	Contact Finish	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Mounting Type

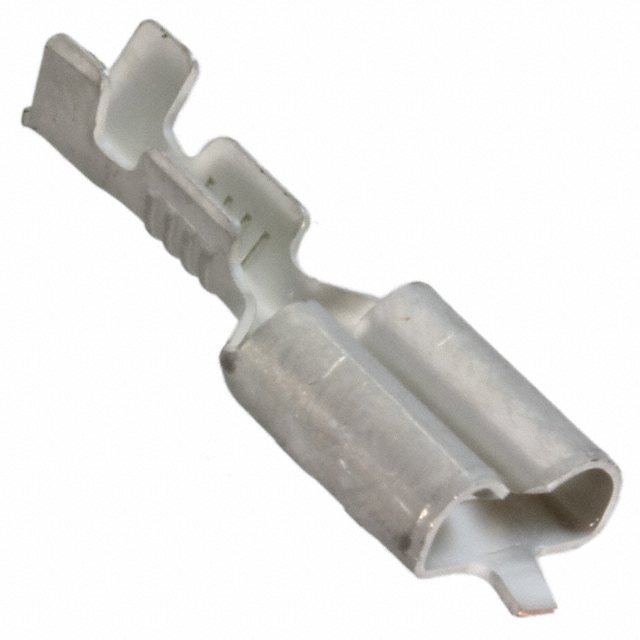

TE Connectivity Raychem Cable Protection 160860-4	Phosphor Bronze	0.756 in	19.2 mm	Standard	0.055 " 1.4 mm	0.091 " 2.31 mm	Female	Tin	7.75 mm	0.305 in	0.032 in	0.81 mm	6.35 mm	0.25 in	Crimp	17 AWG	20 AWG	Non-Insulated	Free Hanging (In-Line)

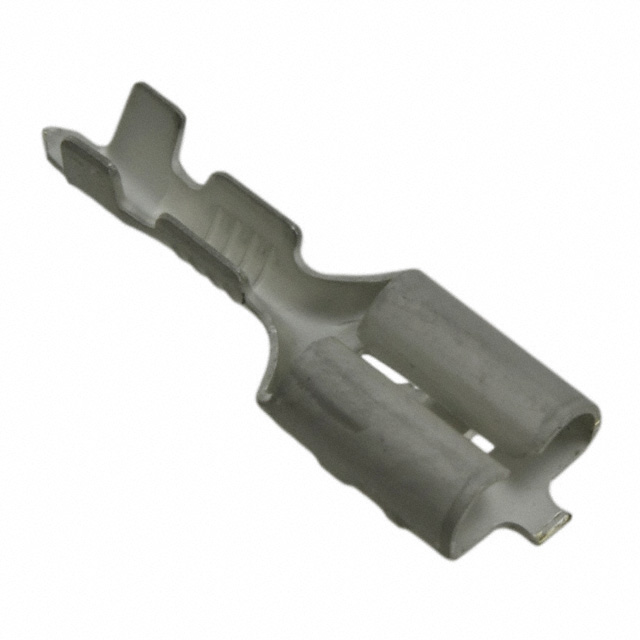

TE Connectivity Raychem Cable Protection 160860-2	Brass	0.756 in	19.2 mm	Standard	0.055 " 1.4 mm	0.091 " 2.31 mm	Female	Tin	7.75 mm	0.305 in	0.032 in	0.81 mm	6.35 mm	0.25 in	Crimp	17 AWG	20 AWG	Non-Insulated	Free Hanging (In-Line)
