GLDA0 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 6A 120V

Part	Termination Style	Current Rating (Amps)	Pretravel	Pretravel	Operating Force	Circuit	Mechanical Life	Switch Function	Actuator Type	Voltage Rating - AC	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Ingress Protection	Overtravel	Overtravel	Features	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions GLDA01C	Screw Terminal	6 A 550 mA	0.12 in	3 mm	1632 gf	SPDT	15000000 Cycles	On-Mom	Roller Plunger	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	1.1 in	28 mm	IP67 - Dust Tight Waterproof	3 mm	0.118 in
Honeywell Sensing and Productivity Solutions GLDA06C	Screw Terminal	6 A 550 mA	0.12 in	3 mm	1632 gf		15000000 Cycles	On-Mom	Roller Plunger	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	1.1 in	28 mm	IP67 - Dust Tight Waterproof	3 mm	0.118 in

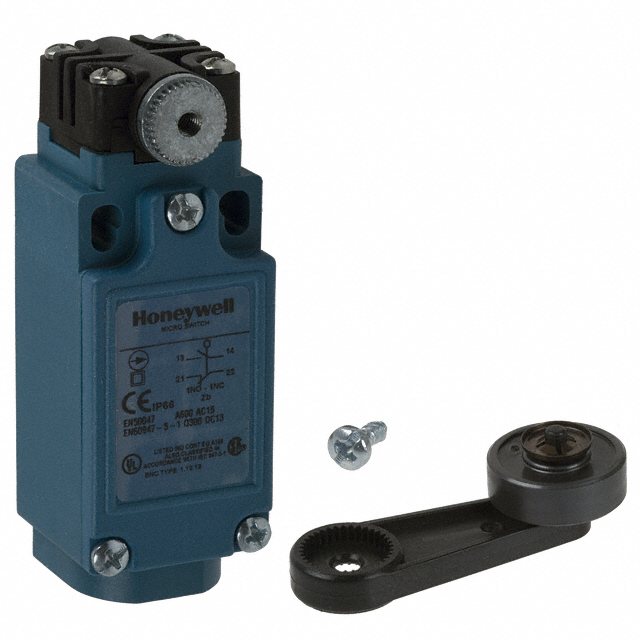

Honeywell Sensing and Productivity Solutions GLDA01A1A	Screw Terminal	6 A 550 mA	26 °		12 gfm	SPDT	10000000 Cycles	On-Mom	Roller Side Rotary	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	26 °		IP67 - Dust Tight Waterproof		49 °	Nylon Roller	12 °

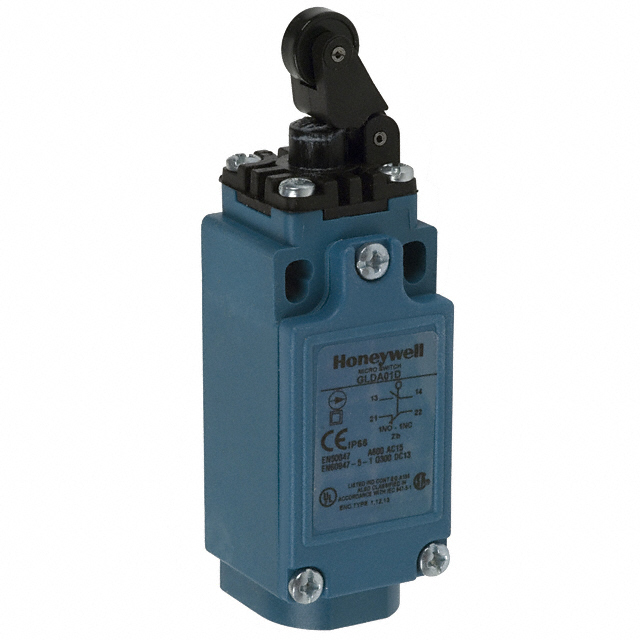

Honeywell Sensing and Productivity Solutions GLDA01D	Screw Terminal	6 A 550 mA	0.138 in	3.5 mm	953 gf	SPDT	10000000 Cycles	On-Mom	Lever Roller	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	1.409 in	35.8 mm	IP67 - Dust Tight Waterproof	5.2 mm	0.205 in		0.05 in	1.3 mm

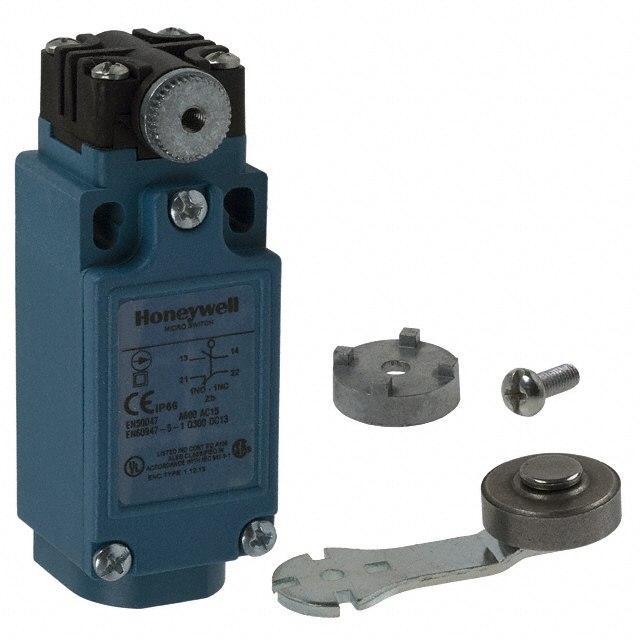

Honeywell Sensing and Productivity Solutions GLDA01A1B	Screw Terminal	6 A 550 mA	26 °		12 gfm	SPDT	10000000 Cycles	On-Mom	Roller Side Rotary	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	26 °		IP67 - Dust Tight Waterproof		49 °	Steel Roller	12 °
Honeywell Sensing and Productivity Solutions GLDA06D	Screw Terminal	6 A 550 mA	0.138 in	3.5 mm	953 gf		10000000 Cycles	On-Mom	Lever Roller	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	1.409 in	35.8 mm	IP67 - Dust Tight Waterproof	5.2 mm	0.205 in		0.05 in	1.3 mm
Honeywell Sensing and Productivity Solutions GLDA01A5B-F035	Screw Terminal	6 A 550 mA	26 °		12 gfm	SPDT	10000000 Cycles	On-Mom	Roller Side Rotary	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	26 °		IP67 - Dust Tight Waterproof		49 °	Steel Roller	12 °

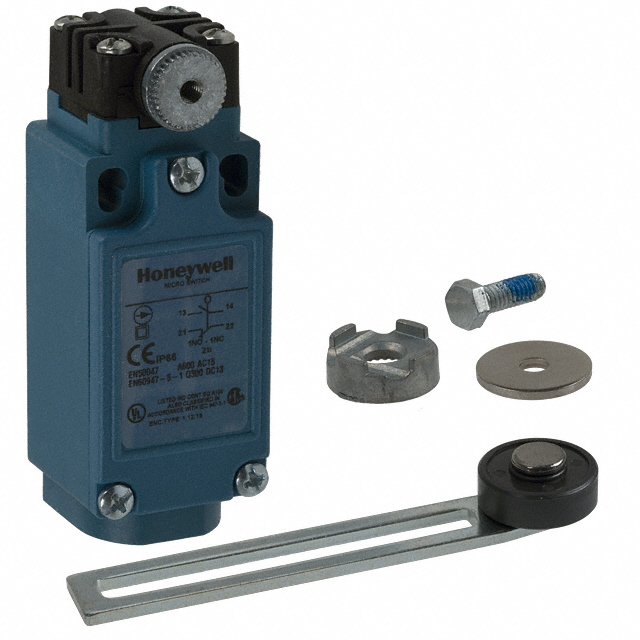

Honeywell Sensing and Productivity Solutions GLDA01A2A	Screw Terminal	6 A 550 mA	26 °		12 gfm	SPDT	10000000 Cycles	On-Mom	Side Rotary Adjustable Roller	120 V	Chassis Mount	125 VDC	85 °C	-40 °C	26 °		IP67 - Dust Tight Waterproof		49 °	Nylon Roller	12 °
