ta-ta2 Series

Catalog

SWITCH: TOGGLE; POS: 2; SPST; OFF-(ON); 21A/14VDC; LEADS: CONNECTORS

Part	Electrical Life (Cycles)	Illumination	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage Rating - DC	Circuit	Switch Function	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape	Termination Style	Actuator Length	Current Rating	Bushing Thread	Ingress Protection Description	Ingress Protection IP Rating	Quick Connect Size (0.250")

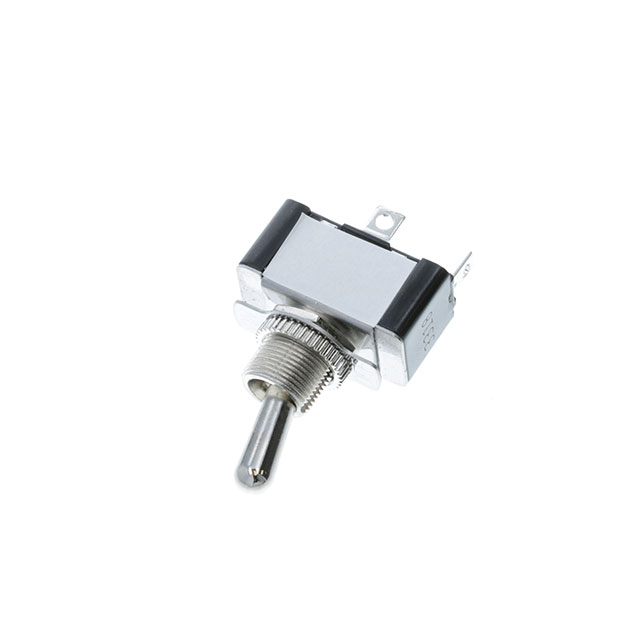

Switch Components TA2-1B-DC-5	6000 Cycles	Non-Illuminated	125 V	85 °C	-20 °C	Panel Mount	14 V	SPST-NO	Off-Mom	Standard Round	12 mm	Circular	Solder Lug	16.5 mm	20 A 21 A	15/32-32
Switch Components TA2-1G-DC-1-O	6000 Cycles	Non-Illuminated	125 V	85 °C	-20 °C	Panel Mount	14 V	SPDT	Mom-Off-Mom	Standard Round	12 mm	Circular	Quick Connect	16.5 mm	20 A 21 A	15/32-32	Dust Protected Water Resistant	IP55	0.25 in

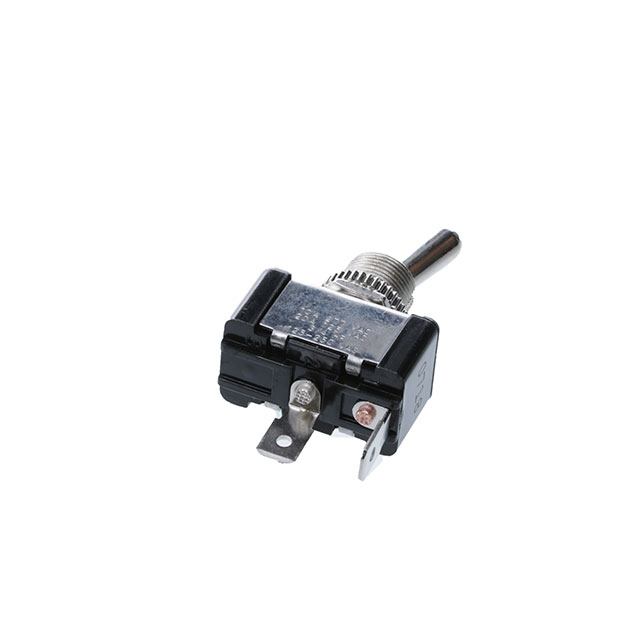

Switch Components TA2-1B-DC-1	6000 Cycles	Non-Illuminated	125 V	85 °C	-20 °C	Panel Mount	14 V	SPST-NO	Off-Mom	Standard Round	12 mm	Circular	Quick Connect	16.5 mm	20 A 21 A	15/32-32			0.25 in

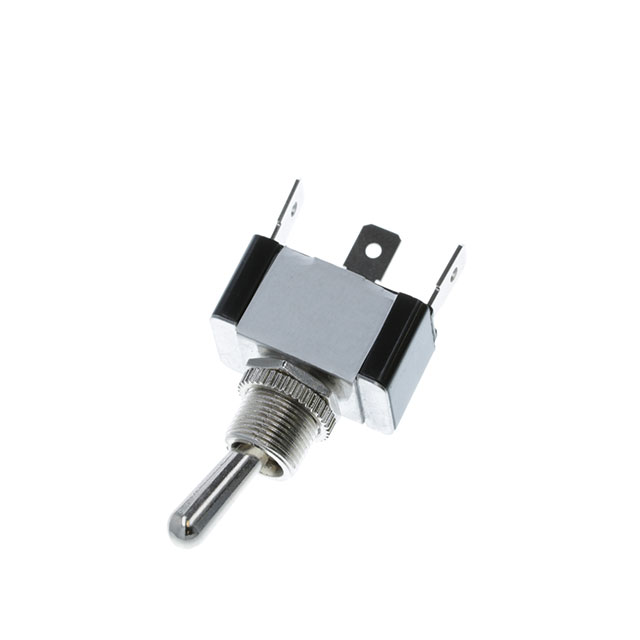

Switch Components TA2-1D-DC-1-O	6000 Cycles	Non-Illuminated	125 V	85 °C	-20 °C	Panel Mount	14 V	SPDT	On-On	Standard Round	12 mm	Circular	Quick Connect	16.5 mm	20 A 21 A	15/32-32	Dust Protected Water Resistant	IP55	0.25 in
Switch Components TA2-1A-DC-5		Non-Illuminated	125 V	85 °C	-20 °C	Panel Mount	14 V	SPST	On-Off	Standard Round	12 mm	Circular	Solder Lug	16.5 mm	20 A 21 A	15/32-32

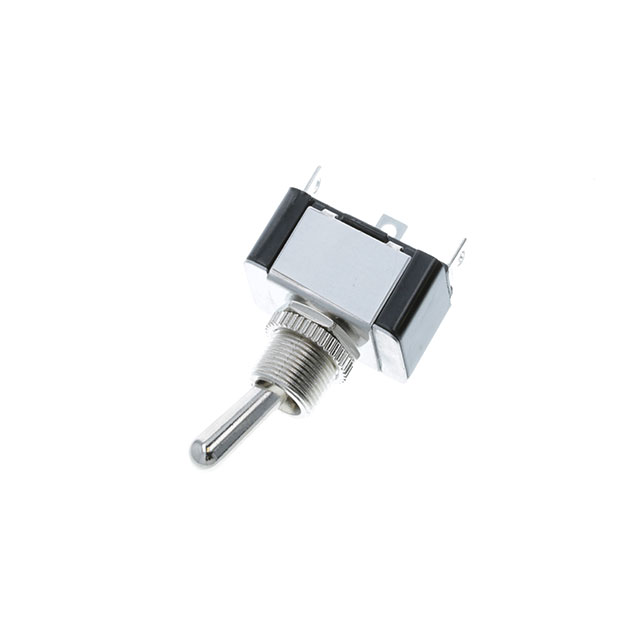

Switch Components TA2-1D-DC-5	6000 Cycles	Non-Illuminated	125 V	85 °C	-20 °C	Panel Mount	14 V	SPDT	On-On	Standard Round	12 mm	Circular	Solder Lug	16.5 mm	20 A 21 A	15/32-32
