XZMYK54 Series

Manufacturer: SunLED

Catalog

LED YELLOW CLEAR CHIP SMD

Part	Supplier Device Package	Color	Lens Color	Wavelength - Peak	Configuration	Viewing Angle	Package / Case	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Height (Max) [Max] [z]	Current - Test	Mounting Type	Millicandela Rating	Lens Style	Lens Size [y]	Lens Size [x]	Height (Max) [z]

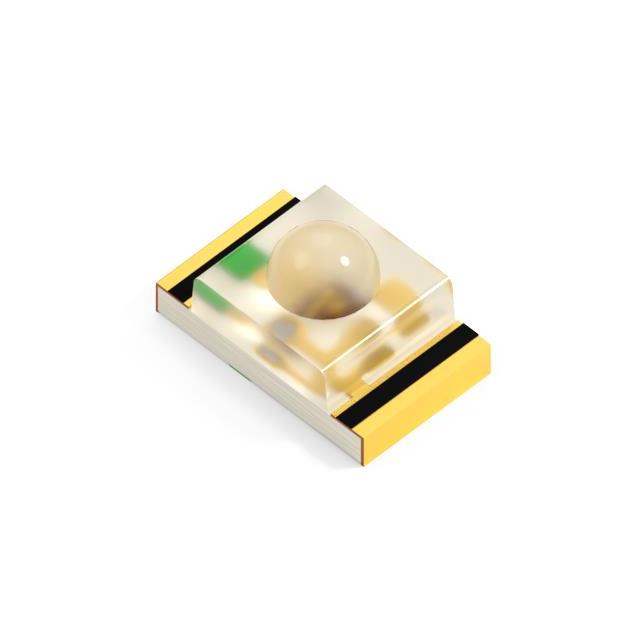

SunLED XZMYK54W-8	Chip LED	Yellow	Colorless	590 nm	Standard	40 °	0805	590 nm	2 V	2 mm	1.25 mm	Clear	1.2 mm	20 mA	Surface Mount	865 mcd	Round with Domed Top

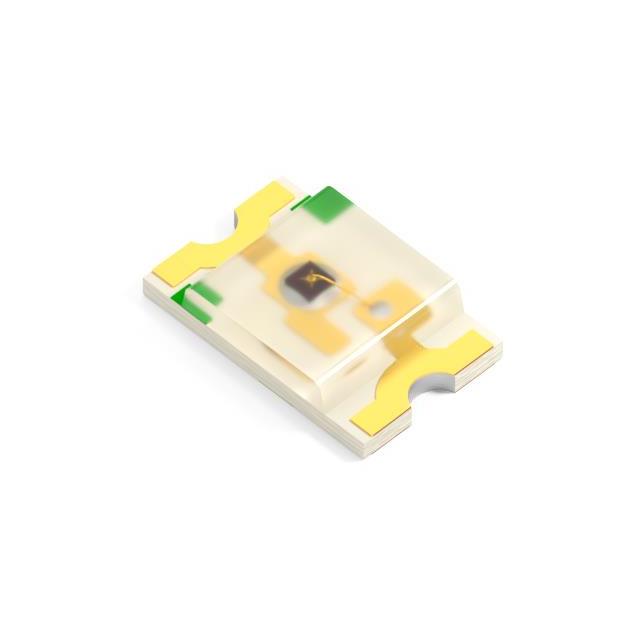

SunLED XZMYK54W-4	0805	Yellow	Colorless	590 nm		140 °	0805	590 nm	2 V	2 mm	1.25 mm	Clear		20 mA	Surface Mount	148 mcd	Rectangle with Flat Top	1.25 mm	1.3 mm	0.5 mm
SunLED XZMYK54W-1	Chip LED	Yellow	Colorless	590 nm	Standard	120 °	0805	590 nm	2 V	2 mm	1.25 mm	Clear		20 mA	Surface Mount	148 mcd	Rectangle with Flat Top	1.25 mm	1.2 mm
