GBC21S Series

Catalog

CONN HEADER SMD R/A 21POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Termination	Fastening Type	Number of Positions	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Material Flammability Rating	Number of Rows	Shrouding	Contact Shape	Insulation Color	Style	Insulation Height	Insulation Height	Current Rating (Amps)

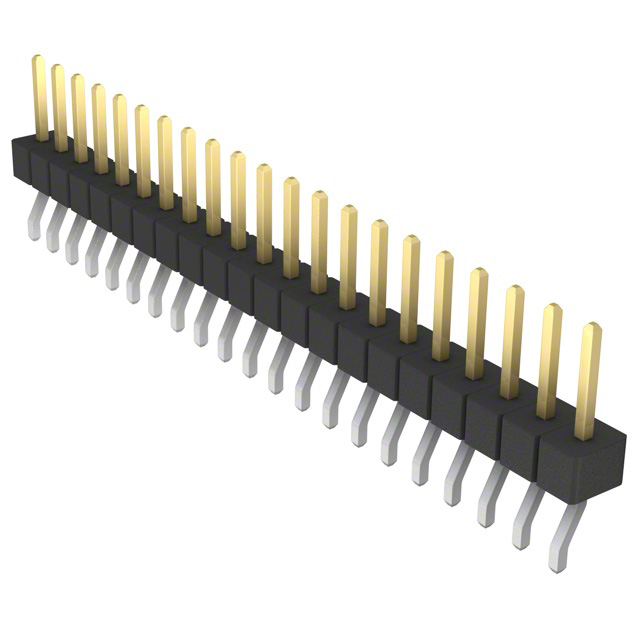

Sullins Connector Solutions GBC21SBSN-M89	2.54 µm	100 µin	All	Solder	Push-Pull	21	Header Breakaway	0.23 in	5.84 mm	Nylon 9T Polyamide (PA9T)	0.1 "	2.54 mm	150 °C	-65 ░C	Male Pin	0.25 µm	10 µin	Phosphor Bronze	Gold	Tin	Right Angle Surface Mount	UL94 V-0	1	Unshrouded	Square	Black	Board to Board Cable	3.56 mm	0.14 in	3 A
Sullins Connector Solutions GBC21SABN-M30	2.54 µm	100 µin	All	Solder	Push-Pull	21	Header Breakaway	0.23 in	5.84 mm	Nylon 9T Polyamide (PA9T)	0.1 "	2.54 mm	150 °C	-65 ░C	Male Pin	0.25 µm	10 µin	Phosphor Bronze	Gold	Tin	Surface Mount	UL94 V-0	1	Unshrouded	Square	Black	Board to Board Cable	2.54 mm	0.1 in	3 A
Sullins Connector Solutions GBC21SFBN-M30	2.54 µm	100 µin	All	Solder	Push-Pull	21	Header Breakaway	0.318 in	8.08 mm	Nylon 9T Polyamide (PA9T)	0.1 "	2.54 mm	150 °C	-65 ░C	Male Pin	0.25 µm	10 µin	Phosphor Bronze	Gold	Tin	Surface Mount	UL94 V-0	1	Unshrouded	Square	Black	Board to Board Cable	2.54 mm	0.1 in	3 A
