SFV7R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

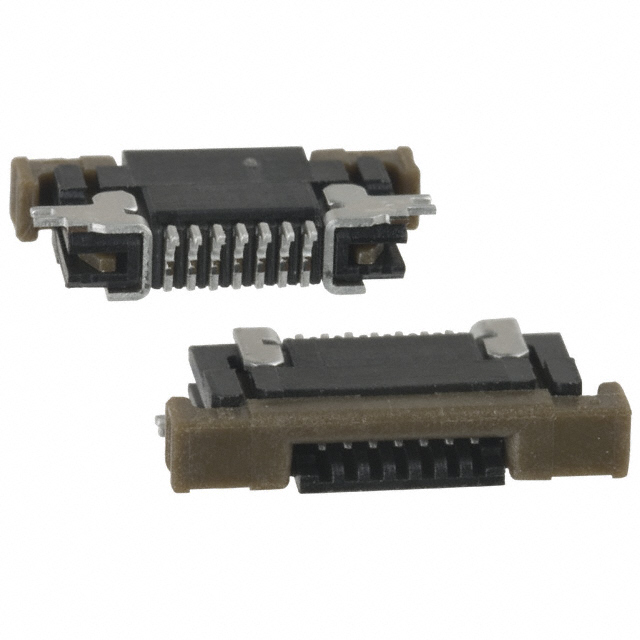

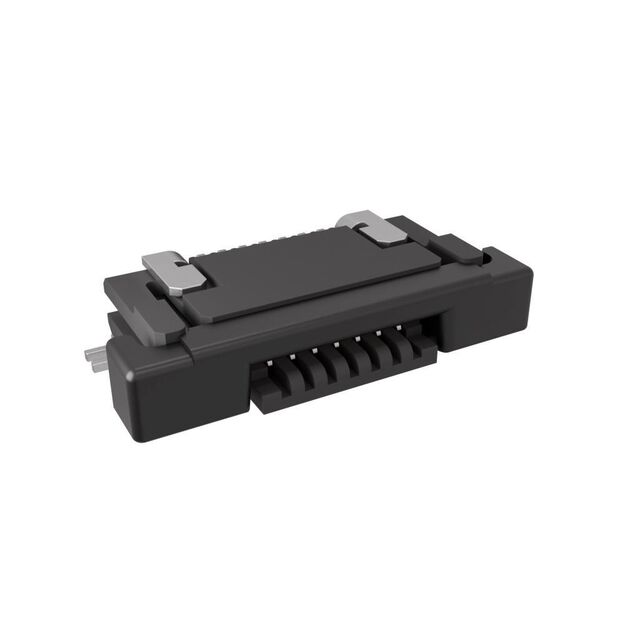

CONN FFC BOTTOM 7POS 0.5MM R/A
| Part | Actuator Color | Housing Color | Mating Cycles | Current Rating (Amps) | Housing Material | Pitch | Pitch | Termination | Connector/Contact Type | Actuator Material | Locking Feature | Material Flammability Rating | FFC, FCB Thickness | Voltage Rating | Contact Finish | Features | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Cable End Type | Number of Positions | Contact Material | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | Black | 20 | 0.5 A | Glass Filled Halogen Free Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Solder | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | UL94 V-0 | 0.3 mm | 50 V | Tin | Solder Retention Zero Insertion Force (ZIF) | FFC FPC | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | Straight | 7 | Phosphor Bronze | ||
 Amphenol ICC (FCI) | Brown | Black | 20 | 0.5 A | Glass Filled Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Solder | Contacts Top | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | UL94 V-0 | 50 V | Tin Alloy | Solder Retention Zero Insertion Force (ZIF) | FFC FPC | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | Straight Tapered | 7 | Phosphor Bronze | 0.3 mm | 0.33 mm | |
 Amphenol ICC (FCI) | Brown | Black | 20 | 0.5 A | Glass Filled Halogen Free Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Solder | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | UL94 V-0 | 50 V | Tin | FPC | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | Notched | 7 | Phosphor Bronze | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Black | Black | 20 | 0.5 A | Glass Filled Halogen Free Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Solder | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | UL94 V-0 | 0.3 mm | 50 V | Gold | Solder Retention Zero Insertion Force (ZIF) | FFC FPC | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | Tapered | 7 | Phosphor Bronze | ||
 Amphenol ICC (FCI) | Black | Black | 20 | 0.5 A | Glass Filled Halogen Free Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Solder | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | UL94 V-0 | 0.3 mm | 50 V | Gold | Solder Retention Zero Insertion Force (ZIF) | FPC | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | Straight | 7 | Phosphor Bronze | ||
 Amphenol ICC (FCI) | Black | Black | 20 | 0.5 A | Glass Filled Halogen Free Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Solder | Contacts Top | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | UL94 V-0 | 0.3 mm | 50 V | Tin | Solder Retention Zero Insertion Force (ZIF) | FPC | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | Straight | 7 | Phosphor Bronze | ||
 Amphenol ICC (FCI) | Brown | Black | 0.5 A | Glass Filled Nylon Polyamide (PA) | 0.02 " | 0.5 mm | Solder | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | UL94 V-0 | 50 V | Tin | Solder Retention Zero Insertion Force (ZIF) | FFC FPC | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | Straight Tapered | 7 | Phosphor Bronze | 0.3 mm | 0.33 mm |
