CC2510F32 Series
2.4 GHz Radio Transceiver, 8051 MCU, and 16KB or 32 KB Memory
Manufacturer: Texas Instruments
Catalog
2.4 GHz Radio Transceiver, 8051 MCU, and 16KB or 32 KB Memory
| Part | GPIO | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | RF Family/Standard | Serial Interfaces | Type | Supplier Device Package | Power - Output | Modulation | Sensitivity | Data Rate (Max) | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Receiving [Min] | Current - Receiving [Max] | Current - Transmitting [Max] | Current - Transmitting [Min] | Package / Case | Mounting Type | Memory Size [custom] | Memory Size [custom] | Memory Size | Supplied Contents | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | |||||
Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | |||||
 Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | 16 kB | 2 kB | |||
 Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | 1 kB 8 kB | ||||
Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | 16 kB | 2 kB | |||
Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | 1 kB 8 kB | ||||
Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | |||||
Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount | |||||

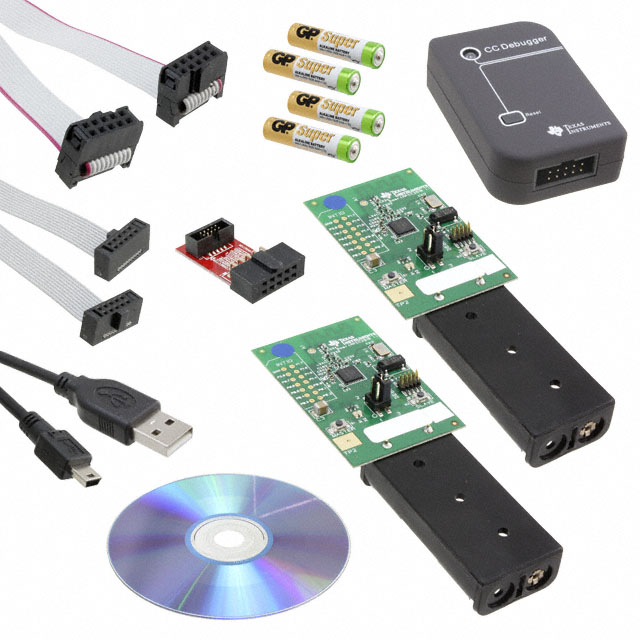

 Texas Instruments | 2.4 GHz | Transceiver | Accessories Board(s) Cable(s) | CC2510 | |||||||||||||||||||||
Texas Instruments | 21 | 85 °C | -40 °C | 2.4 GHz | General ISM > 1GHz | I2S SPI USART | TxRx + MCU | 36-VQFN (6x6) | 1 dBm | 2FSK GFSK MSK | -103 dBm | 500 kBaud | 3.6 V | 2 V | 14.7 mA | 22.9 mA | 26 mA | 15.5 mA | 36-VFQFN Exposed Pad | Surface Mount |
Key Features
• RadioHigh-performance RF transceiver based on themarket-leading CC2500Excellent receiver selectivity and blockingperformanceHigh sensitivity (−103 dBm at 2.4 kBaud)Programmable data rate up to 500 kBaudProgrammable output power up to 1 dBm for allsupported frequenciesFrequency range: 2400 - 2483.5 MHzDigital RSSI / LQI supportCurrent ConsumptionLow current consumption (RX: 17.1 mA @ 2.4 kBaud,TX: 16 mA @ −6 dBm output power)0.3 µA in PM3 (the operating mode with the lowest power consumption)MCU, Memory, and PeripheralsHigh performance and low power 8051 microcontroller core.8/16/32 kB in-system programmable flash, and 1/2/4 kB RAMFull-Speed USB Controller with 1 kB USB FIFO (CC2511Fx)I2S interface7 – 12 bit ADC with up to eight inputs128-bit AES security coprocessorPowerful DMA functionalityTwo USARTs16-bit timer with DSM modeThree 8-bit timersHardware debug support21 (CC2510Fx ) or 19 (CC2511Fx ) GPIO pinsGeneralWide supply voltage range (2.0V - 3.6V)Green package: RoHS compliant and no antimony or bromine,6×6mm QFN 36RadioHigh-performance RF transceiver based on themarket-leading CC2500Excellent receiver selectivity and blockingperformanceHigh sensitivity (−103 dBm at 2.4 kBaud)Programmable data rate up to 500 kBaudProgrammable output power up to 1 dBm for allsupported frequenciesFrequency range: 2400 - 2483.5 MHzDigital RSSI / LQI supportCurrent ConsumptionLow current consumption (RX: 17.1 mA @ 2.4 kBaud,TX: 16 mA @ −6 dBm output power)0.3 µA in PM3 (the operating mode with the lowest power consumption)MCU, Memory, and PeripheralsHigh performance and low power 8051 microcontroller core.8/16/32 kB in-system programmable flash, and 1/2/4 kB RAMFull-Speed USB Controller with 1 kB USB FIFO (CC2511Fx)I2S interface7 – 12 bit ADC with up to eight inputs128-bit AES security coprocessorPowerful DMA functionalityTwo USARTs16-bit timer with DSM modeThree 8-bit timersHardware debug support21 (CC2510Fx ) or 19 (CC2511Fx ) GPIO pinsGeneralWide supply voltage range (2.0V - 3.6V)Green package: RoHS compliant and no antimony or bromine,6×6mm QFN 36
Description
AI
The CC2510Fx/CC2511Fx is a true low-cost 2.4 GHz system-on-chip (SoC) designed for lowpower wireless applications. The CC2510Fx/CC2511Fx combines the excellent performance of the state-of-the-art RF transceiver CC2500 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations.
The CC2510Fx/CC2511Fx is highly suited for systems where very low power consumption is required. This is ensured by several advanced low-power operating modes. The CC2511Fx adds a full-speed USB controller to the feature set of the CC2510Fx. Interfacing to a PC using the USB interface is quick and easy, and the high data rate (12 Mbps) of the USB interface avoids the bottlenecks of RS-232 or low-speed USB interfaces.
The CC2510Fx/CC2511Fx is a true low-cost 2.4 GHz system-on-chip (SoC) designed for lowpower wireless applications. The CC2510Fx/CC2511Fx combines the excellent performance of the state-of-the-art RF transceiver CC2500 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations.
The CC2510Fx/CC2511Fx is highly suited for systems where very low power consumption is required. This is ensured by several advanced low-power operating modes. The CC2511Fx adds a full-speed USB controller to the feature set of the CC2510Fx. Interfacing to a PC using the USB interface is quick and easy, and the high data rate (12 Mbps) of the USB interface avoids the bottlenecks of RS-232 or low-speed USB interfaces.
