NDFP03N150C Series

N-Channel Power MOSFET, 1500V, 2.5A, 10.5Ω

Catalog

N-Channel Power MOSFET, 1500V, 2.5A, 10.5Ω

Part	Power Dissipation (Max)	Supplier Device Package	Vgs (Max)	FET Type	Operating Temperature	Rds On (Max) @ Id, Vgs	Package / Case	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Technology	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)

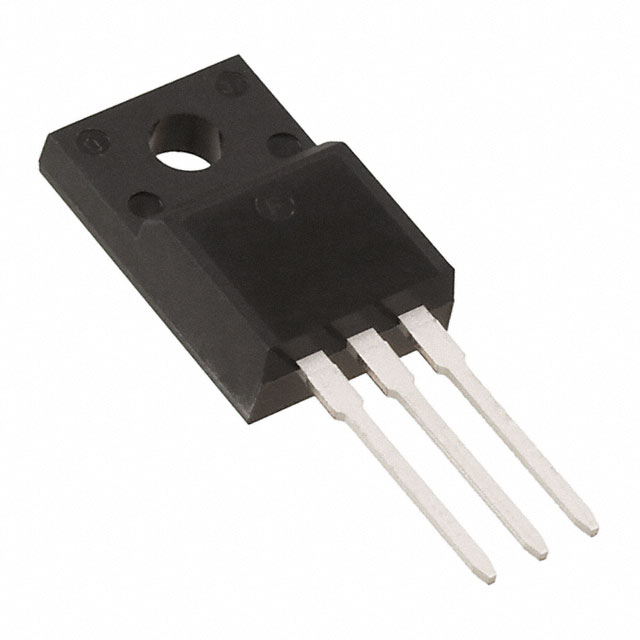

ON Semiconductor NDFP03N150CG	2 W 32 W	TO-220-3	30 V	N-Channel	150 °C	10.5 Ohm	TO-220-3 Full Pack	Through Hole	650 pF	34 nC	MOSFET (Metal Oxide)	2.5 A	1500 V	10 V

Catalog

N-Channel Power MOSFET, 1500V, 2.5A, 10.5Ω

Key Features

• Avalanche guarantee

• High speed switching and Low loss

• On-Resistance rDS(on)= 8Ω (typ.)

• Input Capacitance Ciss= 650pF (typ.)

• 10V Drive

Description

The 1500V HV MOSFET "NDFP03N150C", with low on resistance and high speed switching, contributes to low power consumption and high efficiency of the industrial equipment-related applications which require HV power supplies.
