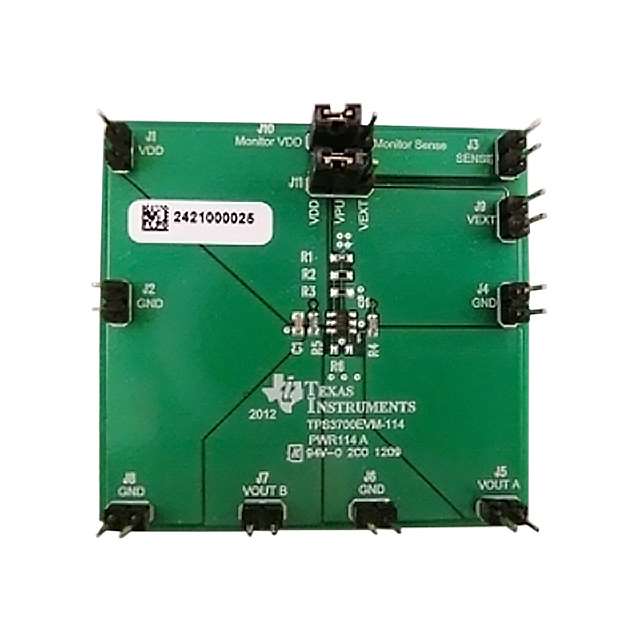

TPS3700-Q1 Series
Automotive high-voltage (18-V) window voltage detector for overvoltage and undervoltage monitoring
Manufacturer: Texas Instruments
Catalog
Automotive high-voltage (18-V) window voltage detector for overvoltage and undervoltage monitoring
Key Features
• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C6Functional Safety-CapableDocumentation available to aid functional safety system designWide Supply Voltage Range: 1.8 V to 18 VAdjustable Threshold: Down to 400 mVOpen-Drain Outputs for Overvoltage and Undervoltage DetectionLow Quiescent Current: 5.5 µA (typ)High Threshold Accuracy:1% Over Temperature0.25% (typ)Internal Hysteresis: 5.5 mV (typ)Available in ThinSOT23-6 and WSON PackagesQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C6Functional Safety-CapableDocumentation available to aid functional safety system designWide Supply Voltage Range: 1.8 V to 18 VAdjustable Threshold: Down to 400 mVOpen-Drain Outputs for Overvoltage and Undervoltage DetectionLow Quiescent Current: 5.5 µA (typ)High Threshold Accuracy:1% Over Temperature0.25% (typ)Internal Hysteresis: 5.5 mV (typ)Available in ThinSOT23-6 and WSON Packages
Description
AI
The TPS3700-Q1 wide-supply window voltage detector operates over a 1.8 V to 18 V range. The device has two high-accuracy comparators with an internal 400-mV reference and two open-drain outputs rated to 18 V for overvoltage and undervoltage detection. The TPS3700-Q1 device can be used as a window voltage detector or as two independent voltage monitors; the monitored voltage can be set with the use of external resistors. For even wider input voltage capability up to 65 V, see theTPS37A-Q1or theTPS38A-Q1devices.
The OUTA terminal is driven low when the voltage at the INA+ terminal drops below (VIT+– Vhys), and goes high when the voltage returns above the respective threshold (VIT+). The OUTB terminal is driven low when the voltage at the INB– terminal rises above VIT+, and goes high when the voltage drops below the respective threshold (VIT+– Vhys). Both comparators in the TPS3700-Q1 device include built-in hysteresis for filtering to reject brief glitches, thereby ensuring stable output operation without false triggering.
The TPS3700-Q1 device is available in a Thin SOT-6 and a 1.5-mm x 1.5-mm WSON-6 package and is specified over the junction temperature range of –40°C to 125°C.
The TPS3700-Q1 wide-supply window voltage detector operates over a 1.8 V to 18 V range. The device has two high-accuracy comparators with an internal 400-mV reference and two open-drain outputs rated to 18 V for overvoltage and undervoltage detection. The TPS3700-Q1 device can be used as a window voltage detector or as two independent voltage monitors; the monitored voltage can be set with the use of external resistors. For even wider input voltage capability up to 65 V, see theTPS37A-Q1or theTPS38A-Q1devices.
The OUTA terminal is driven low when the voltage at the INA+ terminal drops below (VIT+– Vhys), and goes high when the voltage returns above the respective threshold (VIT+). The OUTB terminal is driven low when the voltage at the INB– terminal rises above VIT+, and goes high when the voltage drops below the respective threshold (VIT+– Vhys). Both comparators in the TPS3700-Q1 device include built-in hysteresis for filtering to reject brief glitches, thereby ensuring stable output operation without false triggering.
The TPS3700-Q1 device is available in a Thin SOT-6 and a 1.5-mm x 1.5-mm WSON-6 package and is specified over the junction temperature range of –40°C to 125°C.
