28341 Series
Manufacturer: Phoenix Contact
Beta
⌘K

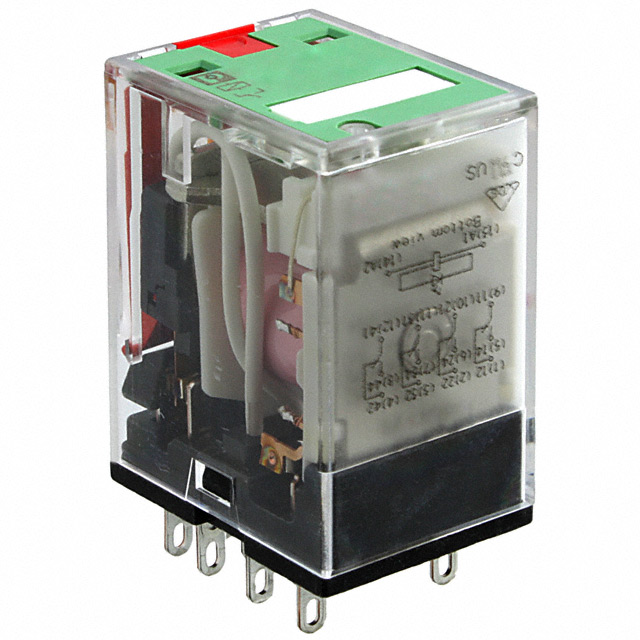

RELAY GEN PURPOSE DPDT 10A 48V
| Part | Coil Resistance | Mounting Type | Operate Time | Release Time | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Contact Material | Switching Voltage | Coil Current | Features | Termination Style | Approval Agency | Coil Type | Contact Rating (Current) | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 2560 Ohms | Socketable | 13 ms | 5 ms | DPDT (2 Form C) | -55 C | 70 °C | 48 VDC | Silver (Ag) | 250 VAC 250 VDC | 19 mA | Diode Lighted Indicator Test Button | Plug In | cULus EAC UL VDE | Non Latching | 10 A | General Purpose |
Phoenix Contact | 18.79 kOhms | Socketable | 10 ms | 12 ms | 4PDT (4 Form C) | -55 C | 70 °C | 230 VAC | Gold (Au) Silver Nickel (AgNi) | 250 VAC 250 VDC | Plug In | cULus EAC UL VDE | Non Latching | 5 A | General Purpose | ||
 Phoenix Contact | 4.43 kOhms | Socketable | 10 ms | 12 ms | 4PDT (4 Form C) | -55 C | 70 °C | 120 VAC | Silver Nickel (AgNi) | 250 VAC 250 VDC | 11 mA | Plug In | cULus EAC UL VDE | Non Latching | 5 A | General Purpose | |
Phoenix Contact | 2560 Ohms | Socketable | 13 ms | 5 ms | 4PDT (4 Form C) | -55 C | 70 °C | 48 VDC | Silver Nickel (AgNi) | 250 VAC 250 VDC | 19 mA | Plug In | cULus EAC UL VDE | Non Latching | 5 A | General Purpose | |
Phoenix Contact | 630 Ohms | Socketable | 13 ms | 5 ms | DPDT (2 Form C) | -55 C | 70 °C | 24 VDC | Silver (Ag) | 250 VAC 250 VDC | 38 mA | Diode Lighted Indicator Test Button | Plug In | cULus EAC UL VDE | Non Latching | 10 A | General Purpose |
