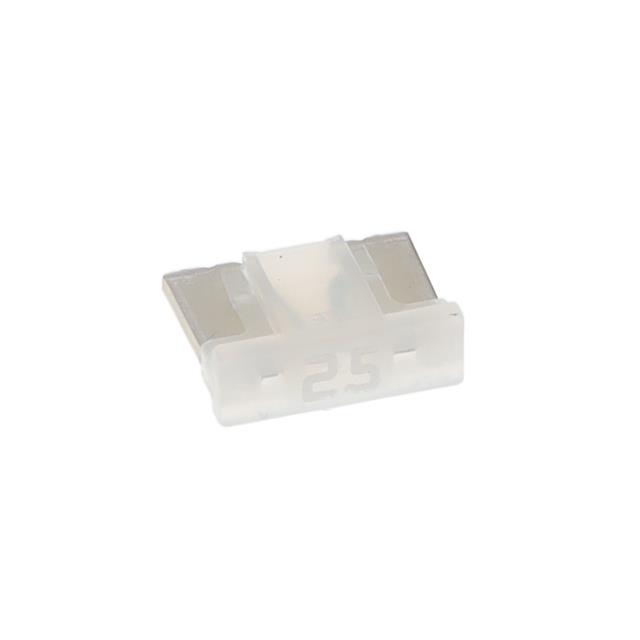

0891025.NXWS Series

Fuse - LP Mini 58VDC 10.9mm Blade Ag 25A

Catalog

Fuse - LP Mini 58VDC 10.9mm Blade Ag 25A

Part	Melting I²t	Mounting Type	DC Cold Resistance	Voltage Rating - DC	Fuse Type	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Package / Case	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]
Littelfuse/Commercial Vehicle Products 0891025.NXWS	613	Requires Holder	2.56 Ohms	58 VDC	Automotive	25 A	1 kA	Blade Miniature (Low Profile)	Clear	0.429 "	0.15 in	3.81 mm	8.73 mm	0.344 "	10.9 mm	125 °C	-40 °C

Fuse - LP Mini 58VDC 10.9mm Blade Ag 25A

• Fast-acting

• Clear housing indicates 25 A rating

• Silver-plated zinc terminals

• Net weight 0.4 g ±15 %

• Complies with ISO 8820-9

• UL Recognized as a UL 248 Special Purpose Fuse

This 25 A Low Profile MINI® 10.9 mm fuse protects circuit protection as well as larger and heavier MINI 58V blade fuses.
