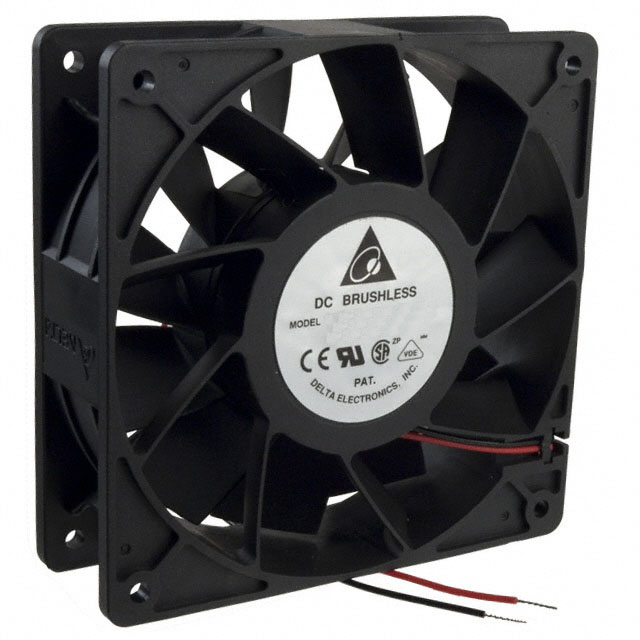

PFB1248 Series

Catalog

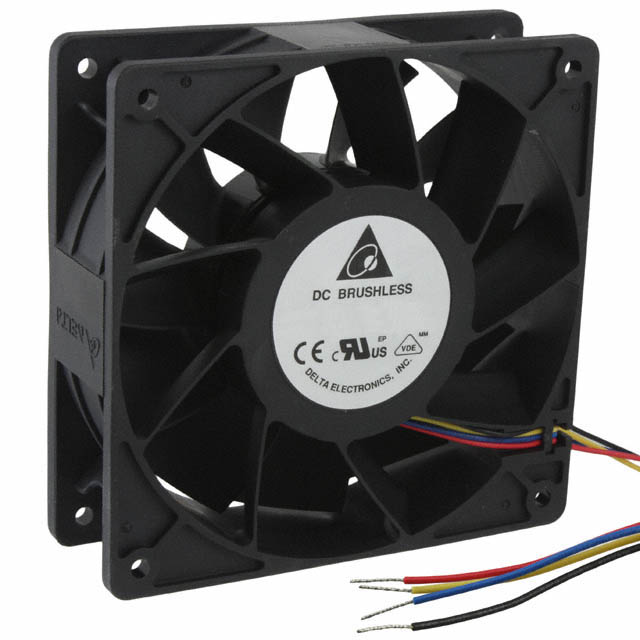

FAN AXIAL 120X38MM 48VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Bearing Type	Static Pressure	Static Pressure	RPM	Voltage - Rated	Termination	Weight	Weight	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Fan Type	Approval Agency	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Features
Delta Electronics PFB1248EHE	56 VDC	30 VDC	Plastic	70000 Hrs	0.45 A	Plastic	5.08 mł/min	181.3 CFM	120 mm	120 mm	21.6 W	Ball	187 Pa	0.751 in H2O	4000 RPM	48 VDC	2 Wire Leads	0.838 lb	380.11 g	59 dB(A)	-10 °C	60 °C	38 mm	Tubeaxial	CE CSA UL VDE
Delta Electronics PFB1248UHE-EP	60 V	30 VDC	Plastic	70000 Hrs	880 mA	Plastic	6.82 mł/min	243.7 CFM	120 mm	120 mm	42.24 W	Ball	326.6 Pa	1.311 in H2O	5300 RPM	48 VDC	4 Wire Leads	0.838 lb	380.11 g		-40 C	75 ░C	38 mm	Tubeaxial	CE CSA UL VDE	IP56 - Dust Protected Water Resistant	-40 °C	75 °C	GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach)
Delta Electronics PFB1248XHE-TP17	52.8 VDC	33 VDC	Plastic	40 °C 50000 Hrs	1.6 A	Plastic	8.59 m³/min	306.9 CFM	120 mm	120 mm	76.8 W	Ball	541.8 Pa	2.175 in H2O	7000 RPM	48 VDC	4 Wire Leads	0.838 lb	380.11 g	55.5 dB	-10 °C	60 °C	38 mm	Tubeaxial	CE CSA UL VDE				Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics PFB1248UHE	56 VDC	30 VDC	Plastic	70000 Hrs	1 A	Plastic	7.08 mł/min	252.9 CFM	120 mm	120 mm	48 W	Ball	326.6 Pa	1.311 in H2O	5500 RPM	48 VDC	2 Wire Leads	0.838 lb	380.11 g	66.5 dB(A)	-10 °C	60 °C	38 mm	Tubeaxial	CE CSA UL VDE
