CFM21S050 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

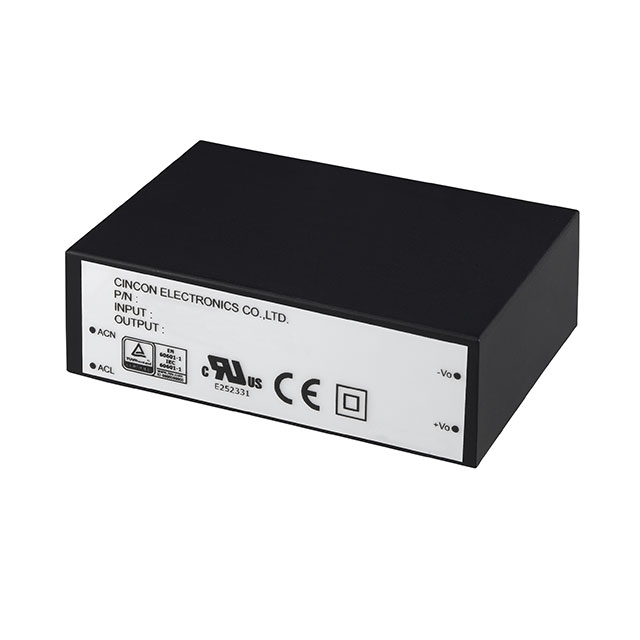

AC/DC CONVERTER 5V 20W
| Part | Line Regulation | Load Regulation | Voltage - Output 1 | Mounting Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Input [Max] | Voltage - Input [Min] | Type | Standard Number | Applications | Package / Case | Approval Agency | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 0.5 % | ±1% | 5 V | Through Hole | 1 | 70 °C | -25 °C | Universal Input | 264 VAC | 90 VAC | Enclosed | 60601-1 60950-1 | ITE (Commercial) Medical | Module | CE cURus TUV | 80 % | 1.74 " | 64.2 mm | 0.8 " | 20.4 mm | 44.2 mm | 2.53 in | 20 W | 4 A |
