2016-130 Series
Manufacturer: WAGO Corporation
Beta
⌘K
DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 4 AWG, 25 MM², CLAMP, 76 A
| Part | Stripping Length [Max] | Stripping Length [Min] | Material - Insulation | Current - UL | Voltage - UL | Voltage - IEC | Type | Current - IEC | Termination Style | Terminal - Width [y] | Number of Levels | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WAGO Corporation | 20 mm | 18 mm | Nylon 6/6 Polyamide (PA66) | 85 A | 600 V | 800 V | Feed Through | 90 A | Push In Spring | 12 mm | 1 | 16 mm² | 6 mm² | 14 AWG | 6 AWG | Gray |

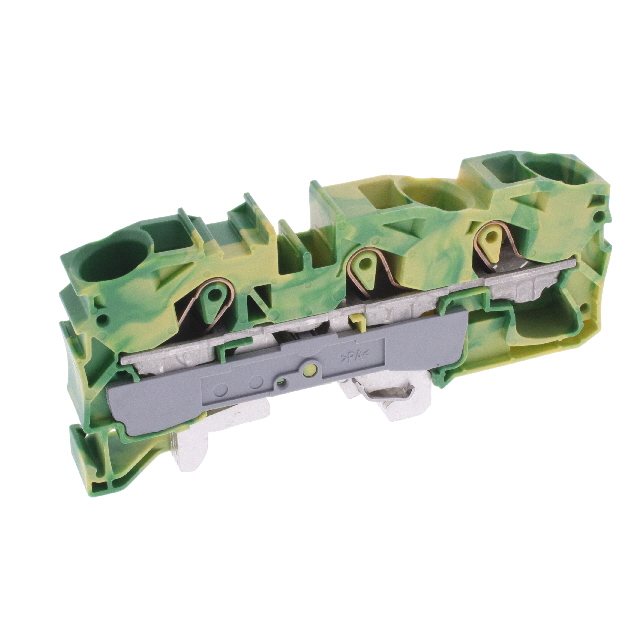

 WAGO Corporation | 20 mm | 18 mm | Nylon 6/6 Polyamide (PA66) | Ground Earth | Push In Spring | 12 mm | 1 | 16 mm² | 6 mm² | 14 AWG | 6 AWG | Green Yellow |
