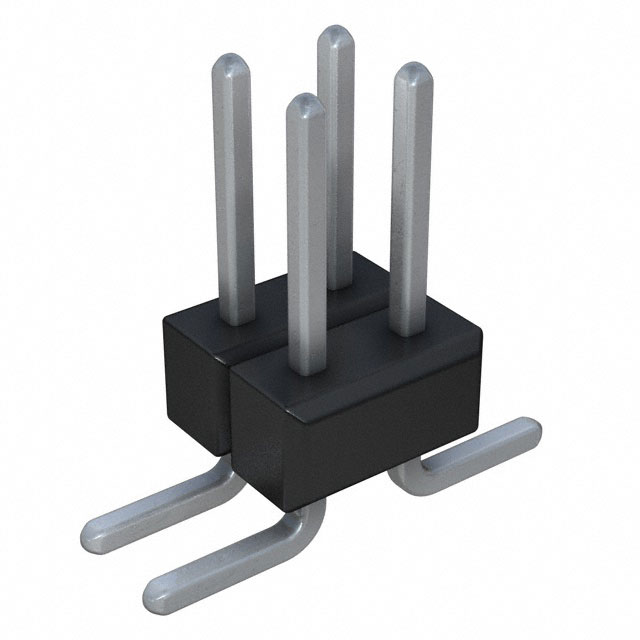

GTC04 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD R/A 4POS 2.54MM
| Part | Contact Material | Voltage Rating | Contact Shape | Shrouding | Contact Type | Fastening Type | Contact Finish - Mating | Number of Rows | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Current Rating (Amps) | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Termination | Connector Type | Style | Number of Positions | Insulation Material | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | 600 V | Square | Unshrouded | Male Pin | Push-Pull | Tin-Lead | 1 | 0.1 " | 2.54 mm | All | 3 A | Black | -65 ░C | 125 °C | 3.56 mm | 0.14 in | 100 çin | 2.54 çm | Right Angle Surface Mount | Solder | Header | Board to Board Cable | 4 | Nylon 9T Polyamide (PA9T) | Tin-Lead | 8.08 mm | 0.318 in | 2.54 µm | 100 µin | UL94 V-0 | |||
 Sullins Connector Solutions | Phosphor Bronze | 600 V | Square | Unshrouded | Male Pin | Push-Pull | Tin-Lead | 1 | 0.1 " | 2.54 mm | All | 3 A | Black | -65 ░C | 125 °C | 2.54 mm | 0.1 in | 100 çin | 2.54 çm | Surface Mount | Solder | Header | Board to Board Cable | 4 | Nylon 9T Polyamide (PA9T) | Tin-Lead | 5.84 mm | 0.23 in | 2.54 µm | 100 µin | UL94 V-0 | |||
Sullins Connector Solutions | Phosphor Bronze | 600 V | Square | Unshrouded | Male Pin | Push-Pull | Tin-Lead | 1 | 0.1 " | 2.54 mm | All | 3 A | Black | -65 ░C | 125 °C | 3.56 mm | 0.14 in | 100 çin | 2.54 çm | Right Angle Surface Mount | Solder | Header | Board to Board Cable | 4 | Nylon 9T Polyamide (PA9T) | Tin-Lead | 5.84 mm | 0.23 in | 2.54 µm | 100 µin | UL94 V-0 | |||
 Sullins Connector Solutions | Phosphor Bronze | 600 V | Square | Unshrouded | Male Pin | Push-Pull | Tin-Lead | 0.1 " | 2.54 mm | All | 3 A | Black | -65 ░C | 125 °C | 2.54 mm | 0.1 in | 100 çin | 2.54 çm | Surface Mount | Solder | Header | Board to Board Cable | 8 | Nylon 9T Polyamide (PA9T) | Tin-Lead | 5.84 mm | 0.23 in | 2.54 µm | 100 µin | UL94 V-0 | 0.1 in | 2.54 mm | 2 |
