WP119 Series
Manufacturer: Kingbright
Beta
⌘K

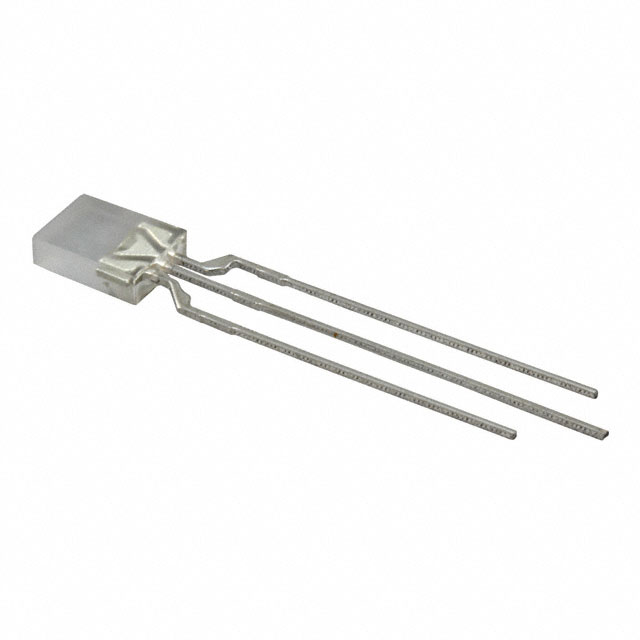

LED GRN/RED DIFF RECT 2X5MM T/H
| Part | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Viewing Angle | Millicandela Rating | Wavelength - Dominant | Supplier Device Package | Color | Current - Test [custom] | Current - Test [custom] | Configuration | Mounting Type | Wavelength - Peak | Lens Color | Lens Transparency | Lens Size [y] | Lens Size [x] | Height (Max) [Max] [z] | Package / Case | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 2 mm | 5 mm | 2 V 2.2 V | 110 ° | 9 mcd 10 mcd | 568 nm 617 nm | Rectangular 2mmx5mm | Green Red | 20 mA | 20 mA | Common Cathode | Through Hole | 565 nm 627 nm | White | Diffused | 2 mm | 5 mm | 10.5 mm | Radial - 3 Leads | Rectangle with Flat Top |
