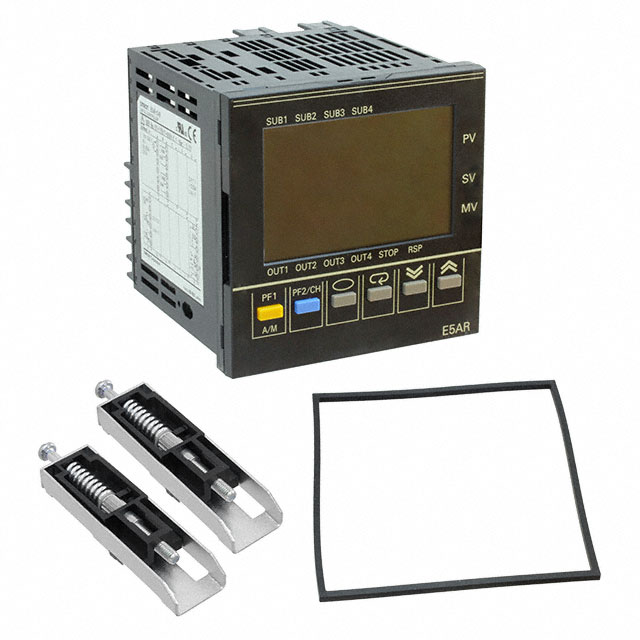

E5AR-QQ Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
CONTROL TEMP/PROC RELAY/VOLT OUT
| Part | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Termination Style | Display Characters - Height | Display Characters - Height | Features | Ingress Protection | Voltage - Supply [Min] | Voltage - Supply [Max] | Input Range [Min] | Input Range [Max] | Display Type | Number of Characters Per Row | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Weight | Weight | Control Method | Output Type | Type | Communications | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 55 °C | -10 °C | Screw Terminal | 7.7 mm 12.8 mm | 0.303 " 0.504 " | Event Input | IP66 | 100 VAC | 240 VAC | -328 °F 0 V 0 A | 10 V 20 mA 2300 °C | LCD - Tri Color Characters Backlight | 4 5 | 92 mm | 92 mm | 449.96 g | 0.992 lb | On/Off Proportional (PID) | Relay (4) Voltage (External SSR) (4) | Process Temperature Controller (RTD Type B E J K L N R S T U W) | RS-485 (CompoWay/F) | |
Omron Electronics Inc-EMC Div | 55 °C | -10 °C | Screw Terminal | 7.7 mm 12.8 mm | 0.303 " 0.504 " | Event Input | IP66 | -328 °F 0 V 0 A | 10 V 20 mA 2300 °C | LCD - Tri Color Characters Backlight | 4 5 | 92 mm | 92 mm | 449.96 g | 0.992 lb | On/Off Proportional (PID) | Relay (4) Voltage (External SSR) (4) | Process Temperature Controller (RTD Type B E J K L N R S T U W) | RS-485 (CompoWay/F) | 24 VAC |
