DHURC Series

Catalog

CBL CLIP U-TYPE NATURAL FASTENER

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Screw Size	Type Attributes	Width [x]	Width	Mounting Type	Height	Height	Panel Hole Size	Panel Hole Size	Length	Length	Material	Opening Size	Opening Size	Material Flammability Rating	Color	Features	Height [z]	Height [z]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Panel Thickness	Panel Thickness	Length [x]	Length [x]

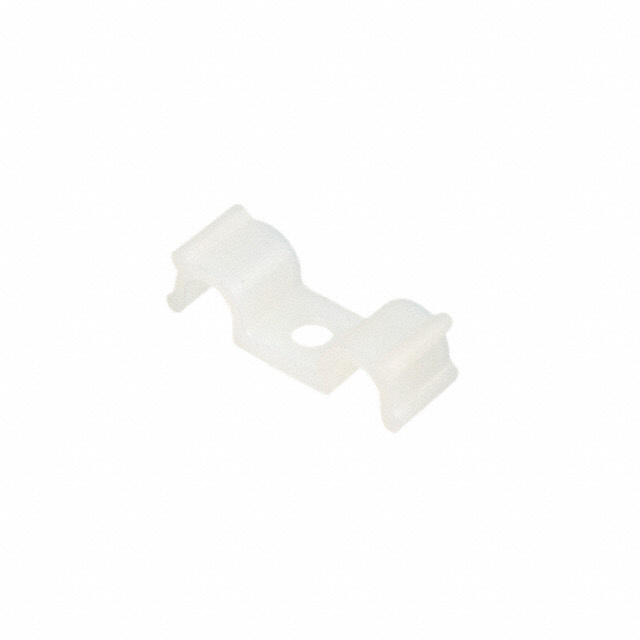

Essentra Components DHURCS-2-01	12.45 mm	0.49 "	#4 (M3) SR-30XX Series Rivet	Dual Half	0.3 in	7.62 mm	Fastener	4.32 mm	0.17 in	3.18 mm	0.125 in	0.75 in	19.05 mm	Polyamide (PA66) Nylon 6/6	3.18 mm	0.125 "	UL94 V-2	Natural
Essentra Components DHURCS-2-19	12.45 mm	0.49 "	#4 (M3) SR-30XX Series Rivet	Dual Half	0.3 in	7.62 mm	Fastener	4.32 mm	0.17 in	3.18 mm	0.125 in	0.75 in	19.05 mm	Polyamide (PA) Nylon	3.18 mm	0.125 "	UL94 V-2	Natural	Flame Retardant
Essentra Components DHURCS-3-19	14.22 mm	0.56 in	#4 (M3) SR-30XX Series Rivet	Dual Half	0.3 in	7.62 mm	Fastener			3.18 mm	0.125 in	0.89 in	22.61 mm	Polyamide (PA) Nylon	4.75 mm	0.187 in	UL94 V-2	Natural	Flame Retardant	0.24 "	6.1 mm
Essentra Components DHURCS-4-01BK	16.26 mm	0.64 in	#4 (M3) SR-30XX Series Rivet	Dual Half	0.3 in	7.62 mm	Fastener	7.62 mm	0.3 in	3.18 mm	0.125 in	1.02 in	25.91 mm	Polyamide (PA66) Nylon 6/6	6.35 mm	0.25 "	UL94 V-2	Black

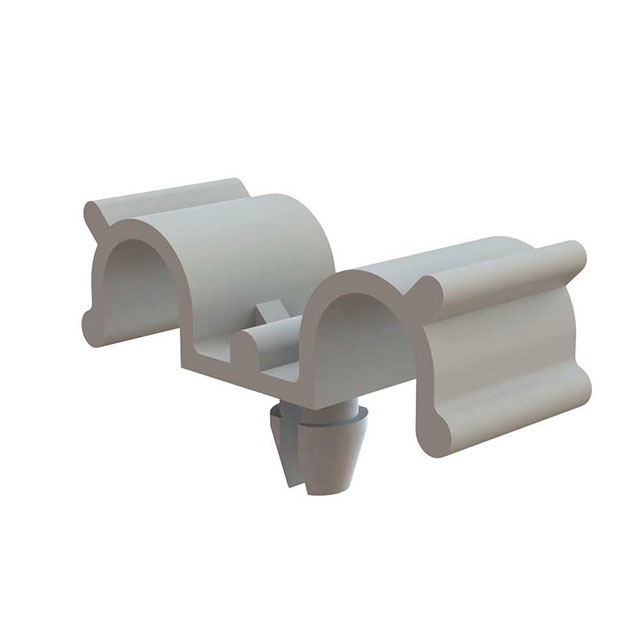

Essentra Components DHURC-4-01				Dual Half	0.3 in	7.62 mm	Push In	7.62 mm	0.3 in	3.18 mm	0.125 in	0.94 in	23.88 mm	Polyamide (PA66) Nylon 6/6	6.35 mm	0.25 "	UL94 V-2	Natural				0.55 in	13.97 mm	0.062 "	1.57 mm
Essentra Components DHURC-3-01	12.19 mm	0.48 in		Dual Half	0.3 in	7.62 mm	Push In			3.18 mm	0.125 in			Polyamide (PA66) Nylon 6/6	4.75 mm	0.187 in	UL94 V-2	Natural		0.24 "	6.1 mm			0.062 "	1.57 mm	20.07 mm	0.79 in
