Circuit Breakers EA2B02245012ADC
...
| Part | Mounting Type | Actuator Material | Termination Style | Circuit | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Switch Function | Bushing Thread | Voltage Rating - AC | Illumination | Voltage Rating - DC | Features | Current Rating (Amps) | Actuator Type | Actuator Length [x] | Actuator Length [custom] | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Through Hole Right Angle | Brass Chrome Plated | PC Pin | SPDT | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | Mom-Off-Mom | Unthreaded | 125 V | Non-Illuminated | 28 V | Epoxy Sealed Terminals | 7.5 A | Standard Round | 0.5 in | |||||||
 Littelfuse/Commercial Vehicle Products | Through Hole | Brass Chrome Plated | PC Pin | SPDT | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | Mom-Off-Mom | Unthreaded | 125 V | Non-Illuminated | 28 V | Epoxy Sealed Terminals | 7.5 A | Standard Round | 6.86 mm | |||||||
 Littelfuse/Commercial Vehicle Products | Brass Chrome Plated | PC Pin | SP3T | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | On-On-On | 1/4-40 | 20 V | Non-Illuminated | 20 V | Jumper needed to achieve triple throw | 0.4 VA | Standard Round | 10.16 mm | 0.25 in | |||||||
 Littelfuse/Commercial Vehicle Products | Through Hole | PC Pin | SPDT | -30 ░C | 85 °C | 40000 Cycles | On-On | 20 V | 20 V | Sealed - Flux Protection | 0.4 VA | Concave (Standard V) | Black | cULus | 17.96 mm | 10.62 mm | No Marking | |||||||
Littelfuse/Commercial Vehicle Products | Through Hole | Brass Chrome Plated | PC Pin | DPDT | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | On-Off-On | Unthreaded | 20 V | Non-Illuminated | 20 V | Epoxy Sealed Terminals | 0.4 VA | Standard Round | 0.5 in | |||||||
Littelfuse/Commercial Vehicle Products | Through Hole | Brass Chrome Plated | PC Pin | DPDT | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | On-On | Unthreaded | 125 V | Non-Illuminated | 28 V | Epoxy Sealed Terminals | 7.5 A | Standard Round | 6.86 mm | |||||||
Littelfuse/Commercial Vehicle Products | Through Hole | Brass Chrome Plated | PC Pin | DPDT | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | On-Off-On | Unthreaded | 125 V | Non-Illuminated | 28 V | Epoxy Sealed Terminals | 7.5 A | Standard Round | 0.5 in | |||||||
Littelfuse/Commercial Vehicle Products | Through Hole Right Angle | Brass Chrome Plated | PC Pin | SPDT | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | On-Off-On | Unthreaded | 20 V | Non-Illuminated | 20 V | Epoxy Sealed Terminals | 0.4 VA | Standard Round | 0.5 in | |||||||
 Littelfuse/Commercial Vehicle Products | Through Hole | PC Pin | SPDT | -30 ░C | 85 °C | 40000 Cycles | On-Off-On | 125 V | 28 V | Sealed - Flux Protection | 7.5 A | Concave (Standard V) | Black | cULus | No Marking | |||||||||
 Littelfuse/Commercial Vehicle Products | Right Angle Through Hole Vertical | Brass Chrome Plated | PC Pin | SPDT | IP57 - Dust Protected Waterproof | -30 ░C | 85 °C | 40000 Cycles | On-Off-Mom | Unthreaded | 20 V | Non-Illuminated | 20 V | Epoxy Sealed Terminals | 0.4 VA | Standard Round | 7.62 mm |
Key Features
• Sealed against solder and cleaning process contaminants
• UL 94V-0 Nylon case and bushing
• ESD protection available
Description
AI

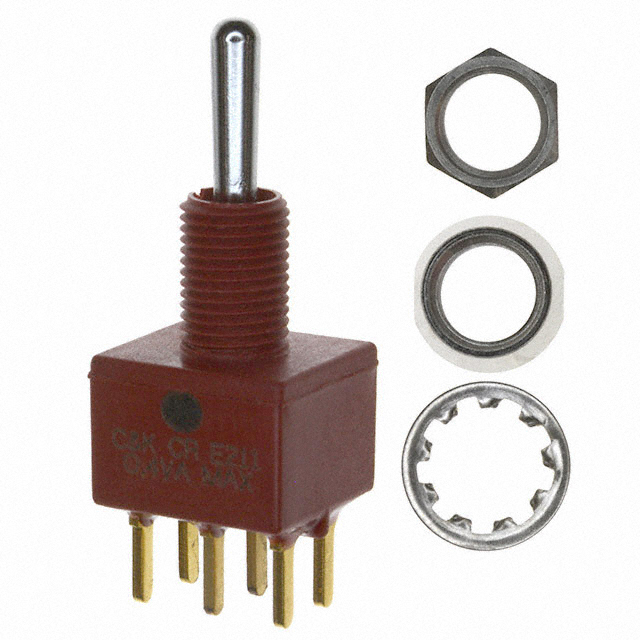

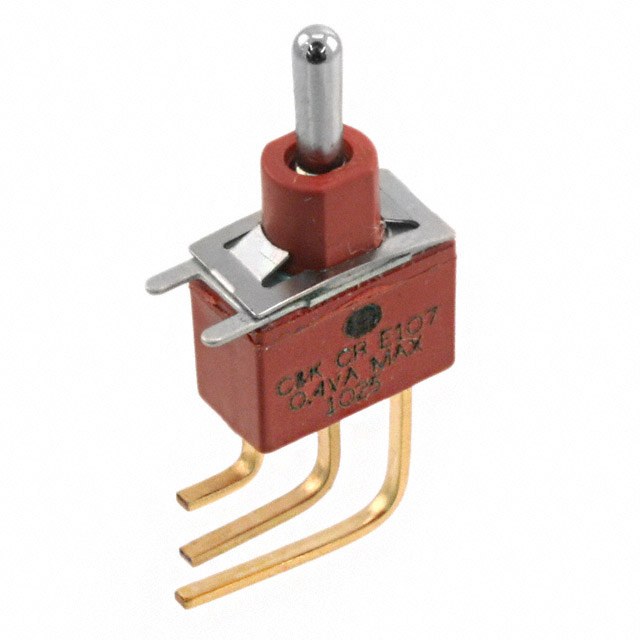

Designers in the medical equipment, instrumentation and telecommunications industries need high-quality, long-lasting switches that can withstand any environment. C&K’s E series miniature toggle switches are sealed against solder and cleaning process contaminants – and come with a UL 94V-0 nylon case and bushing, helping to ensure that the products last. ESD protection is available in the E series as well.
