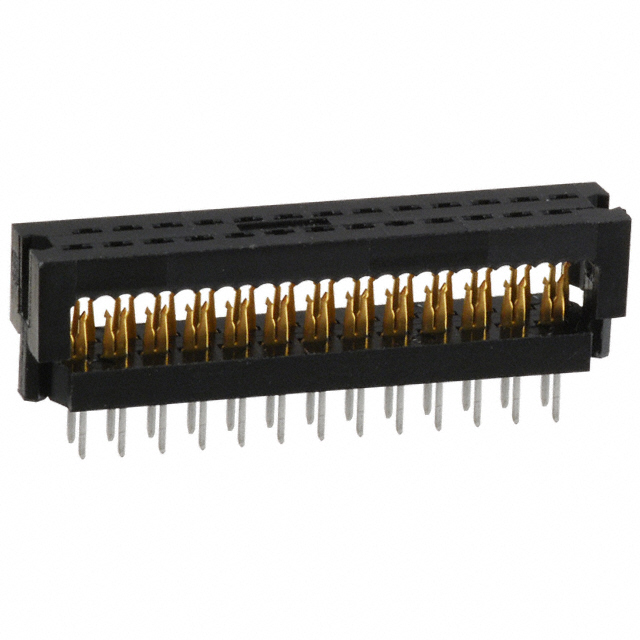

746610 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

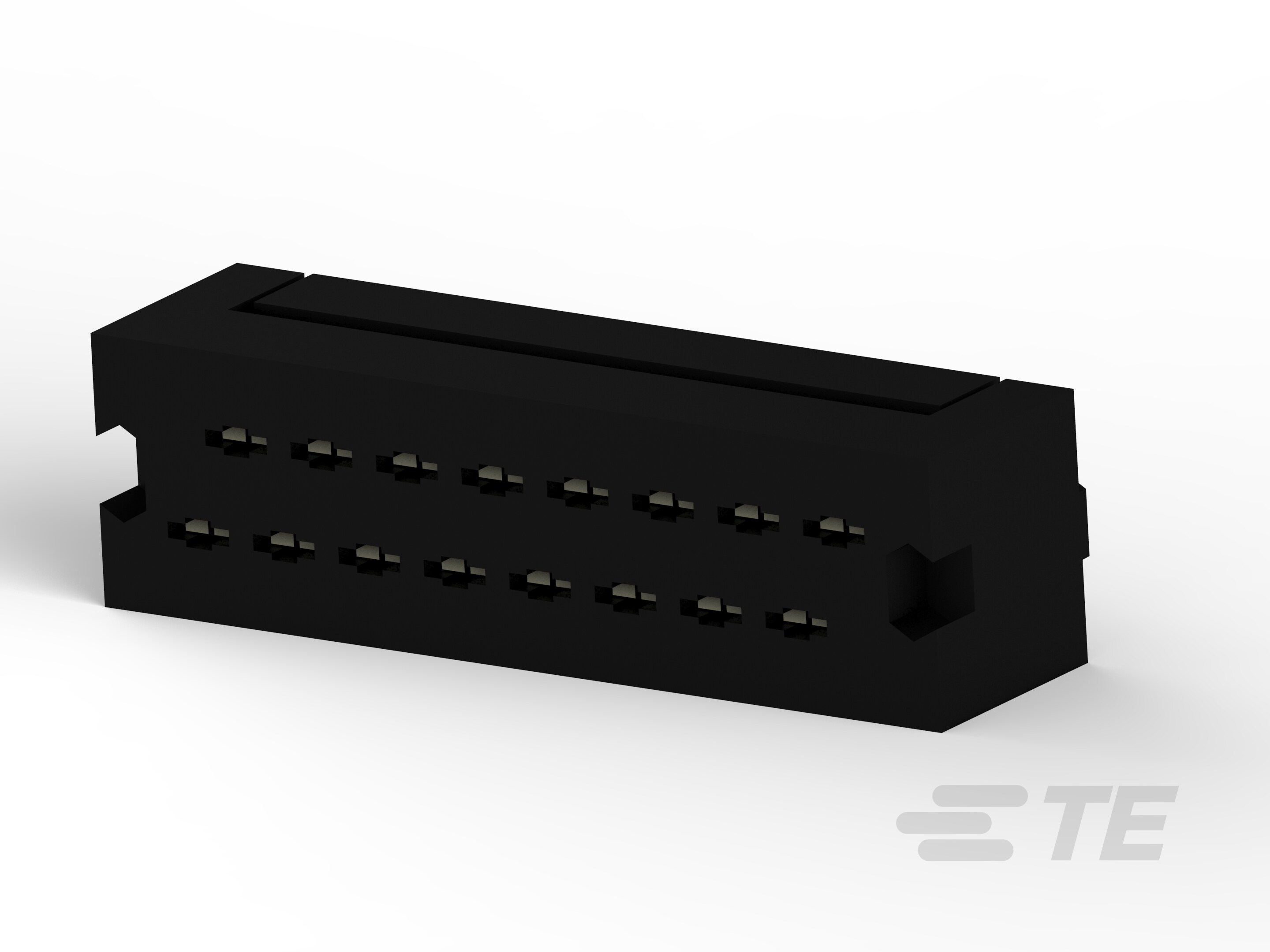

1-746610-4 - 16 DIP PLUG, 100CL, LEAD FREE ROHS COMPLIANT: YES

Part	Number of Positions Loaded	Board-Side Pitch	Board-Side Pitch	Connector Type	Cable Pitch	Cable Pitch	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Rows [custom]	Row Spacing	Row Spacing	Number of Positions	Features	Color	Cable Termination	Wire Gauge [Max] [custom]	Wire Gauge [Min] [custom]	Wire Gauge [Max] [custom]	Wire Gauge [Min] [custom]	Number of Positions [custom]
TE Connectivity AMP Connectors 1-746610-4	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin	2	2.54 mm	0.1 "	16	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 746610-8	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin-Lead	2	2.54 mm	0.1 "		Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG	34
TE Connectivity AMP Connectors 746610-3	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin-Lead	2	2.54 mm	0.1 "	16	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 1-746610-3	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin-Lead	2	2.54 mm	0.1 "	44	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 746610-5	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin-Lead	2	2.54 mm	0.1 "	24	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 746610-1	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin-Lead	2	2.54 mm	0.1 "	10	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 2-746610-3	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin	2	2.54 mm	0.1 "	24	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 1-746610-0	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin-Lead	2	2.54 mm	0.1 "	50	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 746610-2	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin-Lead	2	2.54 mm	0.1 "	14	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
TE Connectivity AMP Connectors 2-746610-6	All	2.54 mm	0.1 "	DIP Header Ribbon Cable	1.27 mm	0.05 in	2.54 µm	100 µin	Through Hole	Tin	2	2.54 mm	0.1 "	44	Feed Through	Black	IDC	30 AWG	26 AWG	28 AWG	26 AWG
