PR1K Series
Manufacturer: Teltonika
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
WIFI DUAL-BAND MAGNETIC SMA ANTE
| Part | Antenna Type | Number of Bands | Ingress Protection | RF Family/Standard | Frequency Group | VSWR | Mounting Type | Features | Gain | Frequency (Center) | Frequency (Band) | Applications | Height (Max) | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Minimum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Maximum | Termination Type | Frequency (Center/Band) | Frequency (Center/Band) - 2 | Frequency (Center/Band) - 4 | Frequency (Center/Band) - 5 | Frequency (Center/Band) - 1 | Frequency (Center/Band) - 3 | Termination Count (SMA Male) | VSWR | VSWR Maximum | VSWR Minimum | Frequency Range (Band 3) Minimum | Frequency Range (Band 5) Maximum | Frequency Range (Band 3) Maximum | Frequency Range (Band 4) Maximum | Frequency Range (Band 4) Minimum | Frequency Range (Band 5) Minimum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

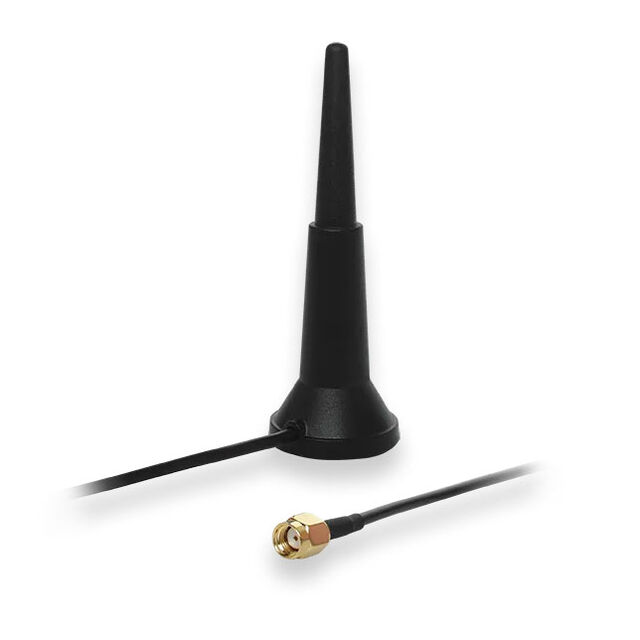

 Teltonika | Straight Whip | 2 | IP50 | General ISM | Wide Band | 2 | Magnetic | 1.5m Cable | 3 dBi | 2.45 GHz | 5.4 GHz | General Purpose | 3.484 in | 4.95 GHz | 2.4 GHz | 2.5 GHz | 5.85 GHz | RP-SMA Male | ||||||||||||||||

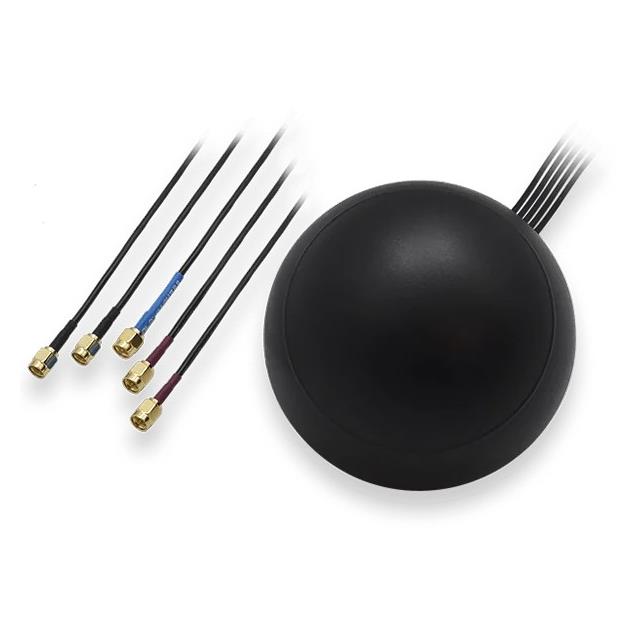

 Teltonika | Dome | 5 | IP65 | Navigation WiFi | Wide Band | Screw | 3m Cable LNA | 2 dBi 3 dBi | GNSS LTE Wi-Fi | 2.087 in | 1.575 GHz | 698 MHz | 960 MHz | 1.61 GHz | RP-SMA Male SMA Male | 1.592GHz 2.2GHz 2.44GHz 5.362GHz 829MHz | 1.592 GHz | 2.44 GHz | 5.362 GHz | 829 MHz | 2.2 GHz | 3 | 2.5 3 | 3 | 2.5 | 1.71 GHz | 5.825 GHz | 2.48 GHz | 2.69 GHz | 2.4 GHz | 4.9 GHz | |||

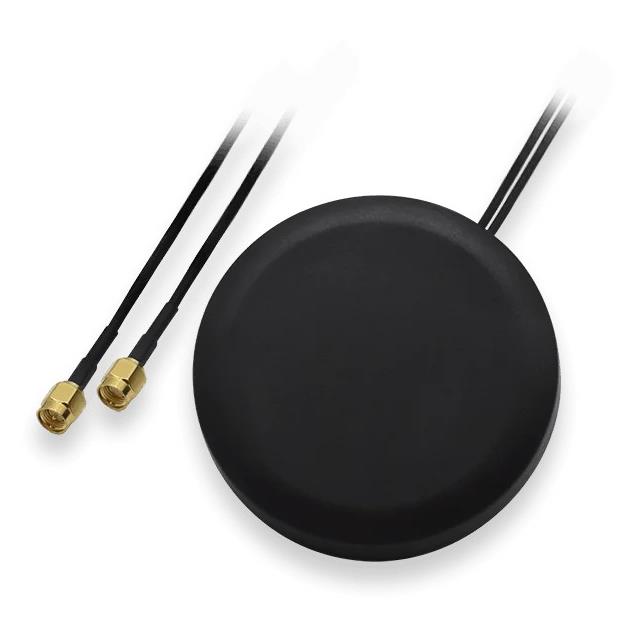

 Teltonika | Dome | 2 | IP65 | General ISM | Wide Band | 3 | Screw | 3m Cable | 2.5 dBi | 829 MHz | 2.2 GHz | General Purpose | 0.575 in | 1.71 GHz | 698 MHz | 960 MHz | 2.69 GHz | SMA Male | ||||||||||||||||

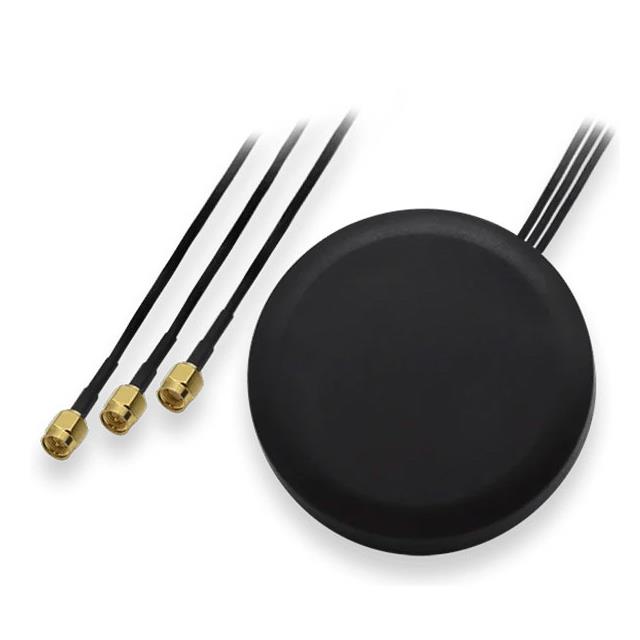

 Teltonika | Dome | 8 | IP65 | Navigation WiFi | Wide Band | 1.5 | Screw | 3m Cable LNA | 2.5 dBi 3.5 dBi | GNSS LTE Wi-Fi | 0.575 in | 1.71 GHz | 698 MHz | 960 MHz | 2.5 GHz | RP-SMA Male SMA Male | 1.8GHz 1.9GHz 2.17GHz 2.2GHz 2.425GHz 829MHz 850MHz 900MHz | 2 | 2.35 GHz | 2.69 GHz |
