Schaffner FN3280 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 160A CHASSIS MOUNT

Part	Configuration	Voltage - Rated AC (Phase to Ground/Neutral)	Filter Type	Current	Termination Style	Applications	Mounting Type	Voltage - Rated AC (Phase to Phase)	Approval Agency	Frequency - Operating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC
TE Connectivity AMP Connectors FN3280H-160-40-R69	Two Stage	300 V	Three Phase (Wye)	160 A	Terminal Block	General Purpose	Chassis Mount	520 V	CE CSA ENEC UKCA UR	60 Hz	100 °C	-25 °C
TE Connectivity AMP Connectors FN3280H-600-99-R69	Two Stage	300 V	Three Phase (Wye)	600 A	Terminal Post	General Purpose	Chassis Mount	520 V	CE CSA ENEC UKCA UR	60 Hz	100 °C	-25 °C
TE Connectivity AMP Connectors FN3280H-8-29	Two Stage	300 V	Three Phase (Wye)	8 A	Terminal Block	General Purpose	Chassis Mount	520 V	CSA ENEC UR	60 Hz	100 °C	-25 °C	480 V
TE Connectivity AMP Connectors FN3280H-600-99	Two Stage	300 V	Three Phase (Wye)	600 A	Terminal Post	General Purpose	Chassis Mount	520 V	CE CSA ENEC UKCA UR	60 Hz	100 °C	-25 °C
TE Connectivity AMP Connectors FN3280H-80-35-R69	Two Stage	300 V	Three Phase (Wye)	80 A	Terminal Block	General Purpose	Chassis Mount	520 V	CE CSA ENEC UKCA UR	60 Hz	100 °C	-25 °C
TE Connectivity AMP Connectors FN3280H-36-33	Two Stage	300 V	Three Phase (Wye)	36 A	Terminal Block	General Purpose	Chassis Mount	520 V	CSA ENEC UR	60 Hz	100 °C	-25 °C	480 V
TE Connectivity AMP Connectors FN3280H-400-99-R69	Two Stage	300 V	Three Phase (Wye)	400 A	Terminal Post	General Purpose	Chassis Mount	520 V	CE CSA ENEC UKCA UR	60 Hz	100 °C	-25 °C
TE Connectivity AMP Connectors FN3280H-8-29	Two Stage	300 V	Three Phase (Wye)	8 A	Terminal Block	General Purpose	Chassis Mount	520 V	CSA ENEC UR	60 Hz	100 °C	-25 °C	480 V

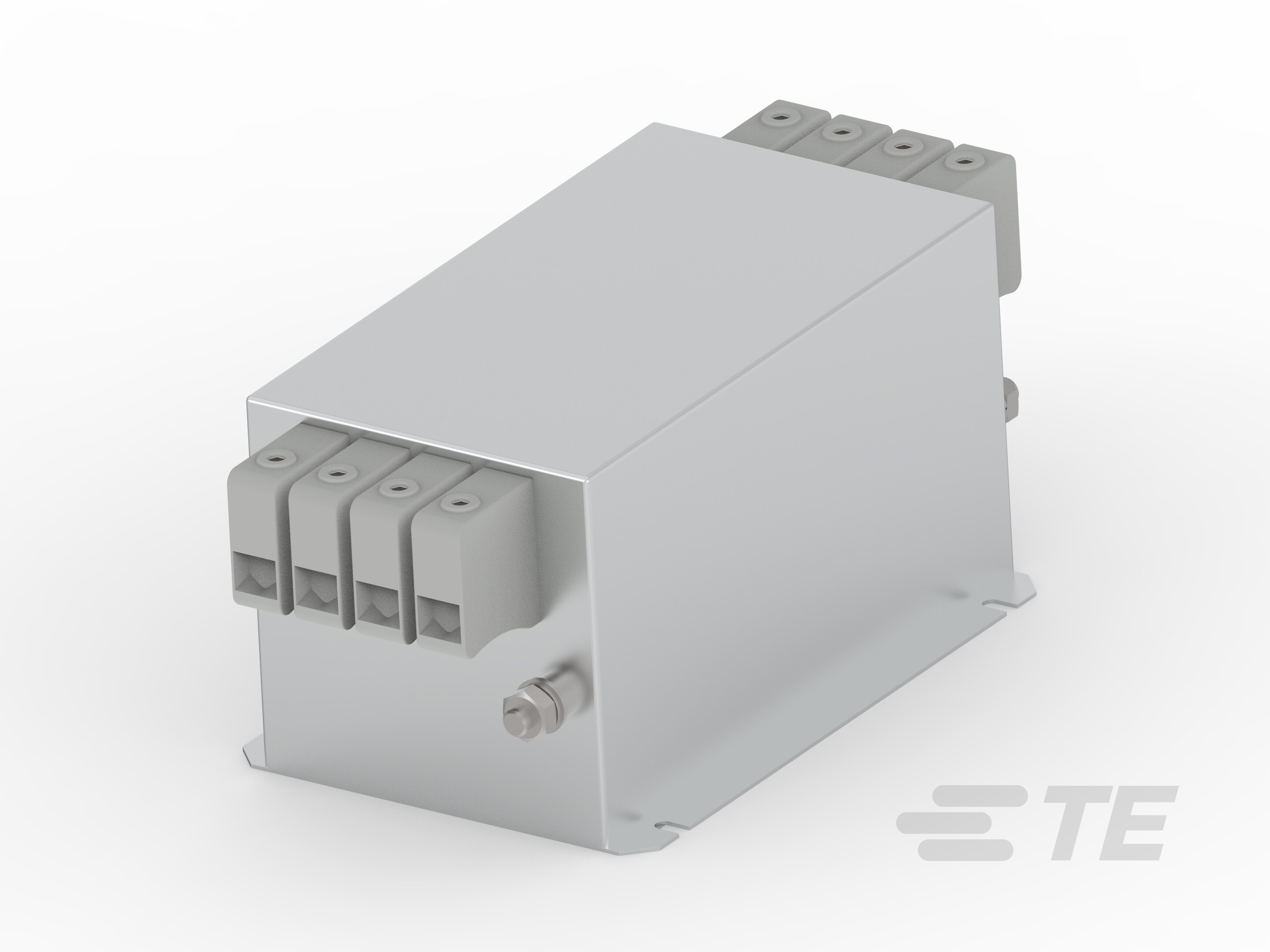

TE Connectivity AMP Connectors FN3280H-120-35-R69	Two Stage	300 V	Three Phase (Wye)	120 A	Terminal Block	General Purpose	Chassis Mount	520 V	CE CSA ENEC UKCA UR	60 Hz	100 °C	-25 °C
TE Connectivity AMP Connectors FN3280H-80-35	Two Stage	300 V	Three Phase (Wye)	80 A	Terminal Block	General Purpose	Chassis Mount	520 V	CSA ENEC UR	60 Hz	100 °C	-25 °C	480 V
