BAS70 Series

Catalog

SCHOT SOT323 70V 70MA 150DEG

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Supplier Device Package	Grade	Qualification	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Diode Configuration	Speed	Speed	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)

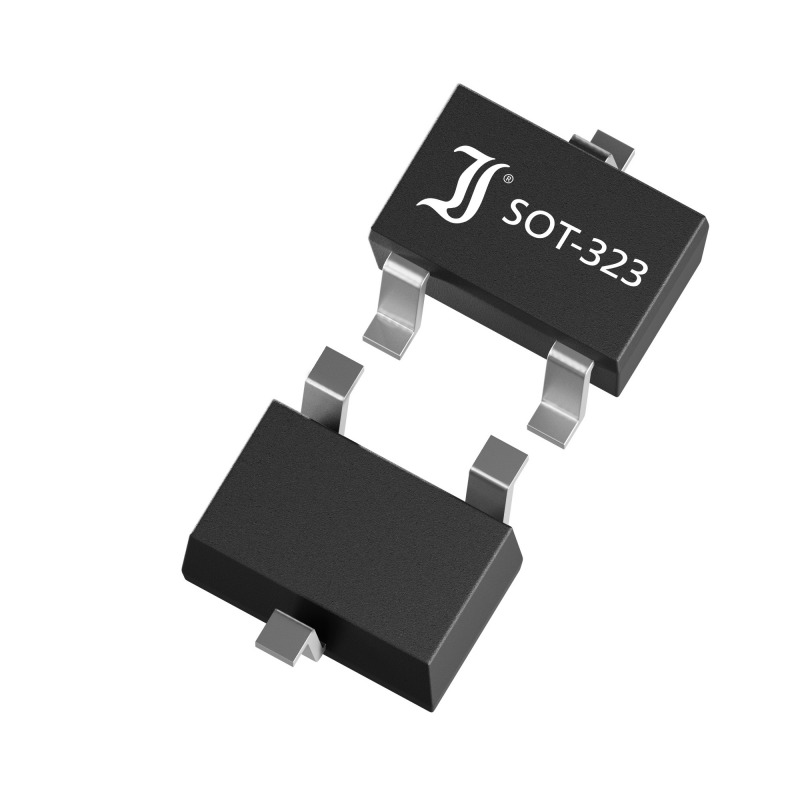

Diotec Semiconductor BAS70-04W-AQ	1 V	Surface Mount	SOT-323	Automotive	AEC-Q101	70 V	SC-70 SOT-323	100 nA	1 Pair Series Connection	200 mA	Any Speed	Schottky	-55 °C	150 °C	5 ns
Diotec Semiconductor BAS70-05E	1 V	Surface Mount	SOT-523			70 V	SOT-523	100 nA	1 Pair Common Cathode	200 mA	Any Speed	Schottky	-55 °C	125 °C	5 ns

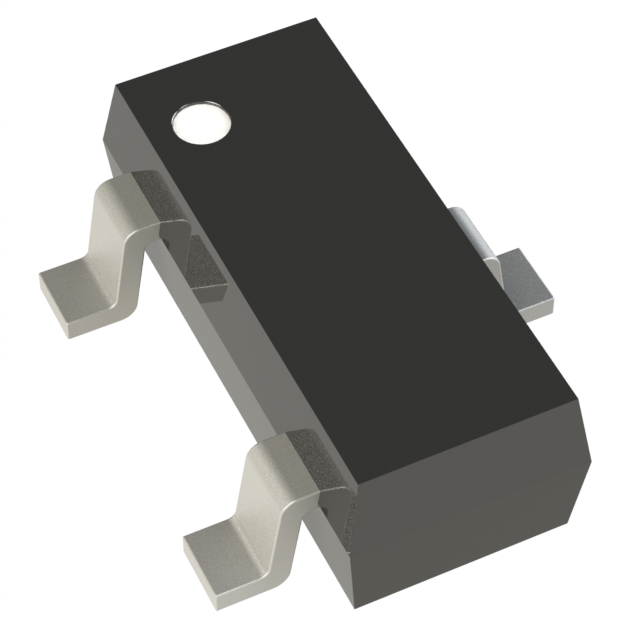

Diotec Semiconductor BAS70-06	1 V	Surface Mount	SOT-23-3 (TO-236)			70 V	SC-59 SOT-23-3 TO-236-3	100 nA	1 Pair Common Anode	200 mA	Any Speed	Schottky	-55 °C	150 °C	5 ns
Diotec Semiconductor BAS70-04W	1 V	Surface Mount	SOT-323			70 V	SC-70 SOT-323	100 nA	1 Pair Series Connection	200 mA	Any Speed	Schottky	-55 °C	150 °C	5 ns
