L117DB Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 25POS IDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Contact Material	Wire Gauge	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Material Flammability Rating	Features	Current Rating (Amps)	Number of Rows [custom]	Number of Positions	Termination	Contact Type	Mounting Type	Connector Style	Connector Type	Shell Material, Finish	Contact Finish
Amphenol ICC (Commercial Products) L117DBFRCA25S	125 °C	-40 C	250 V	Black	Phosphor Bronze	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	4-40 Mating Side Female Screwlock	B DB	3	UL94 V-0	Feed Through Strain Relief	5 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Gold
Amphenol ICC (Commercial Products) L117DBFRA25S	105 ░C	-55 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Housing/Shell (Unthreaded)	B DB	3	UL94 V-0	Feed Through Strain Relief	3 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Receptacle Female Sockets		Gold
Amphenol ICC (Commercial Products) L117DBFRAA25P	125 °C	-40 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Mating Side Female Screwlock (M3)	B DB	3	UL94 V-0	Feed Through Grounding Indents Strain Relief	5 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Plug Male Pins	Nickel Plated Steel	Gold
Amphenol ICC (Commercial Products) L117DBFRB25P	105 ░C	-55 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Housing/Shell (Unthreaded)	B DB	3	UL94 V-0	Feed Through Grounding Indents Strain Relief	3 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Plug Male Pins	Nickel Plated Steel	Gold
Amphenol ICC (Commercial Products) L117DBFRBA25P	105 ░C	-55 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Cable Side (M3)	B DB	3	UL94 V-0	Feed Through Grounding Indents Strain Relief	3 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Plug Male Pins		Gold
Amphenol ICC (Commercial Products) L117DBFRCA25P	125 °C	-40 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	4-40 Mating Side Female Screwlock	B DB	3	UL94 V-0	Feed Through Grounding Indents Strain Relief	5 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Plug Male Pins	Nickel Plated Steel	Gold
Amphenol ICC (Commercial Products) L117DBFRDA25P	125 °C	-40 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Cable Side (4-40)	B DB	3	UL94 V-0	Feed Through Grounding Indents Strain Relief	5 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Plug Male Pins	Nickel Plated Steel	Gold

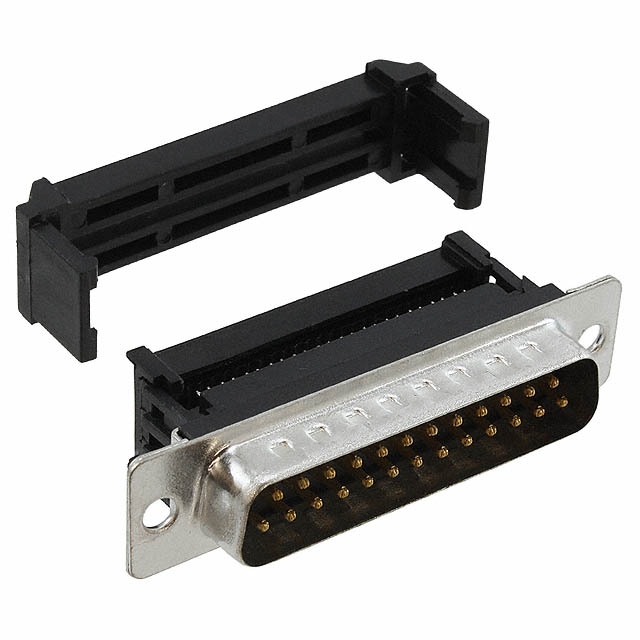

Amphenol ICC (Commercial Products) L117DBFRA25P	105 ░C	-55 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Housing/Shell (Unthreaded)	B DB	3	UL94 V-0	Feed Through Grounding Indents Strain Relief	3 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Plug Male Pins		Gold
Amphenol ICC (Commercial Products) L117DBFRDA25S	105 ░C	-55 C	250 V	Black	Brass	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Cable Side (4-40)	B DB	3	UL94 V-0	Feed Through Strain Relief	3 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Receptacle Female Sockets		Gold
Amphenol ICC (Commercial Products) L117DBFRBA25S	125 °C	-40 C	250 V	Black	Phosphor Bronze	26 AWG	Thermoplastic Glass Filled	0.38 µm	15 µin	Cable Side (M3)	B DB	3	UL94 V-0	Feed Through Strain Relief	5 A	2	25	IDC Ribbon Cable	Signal	Free Hanging (In-Line)	D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Gold
