ATS-560 Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

HEAT SINK 58MM X 30MM X 9MM

Part	Type	Material Finish	Material	Fin Height	Fin Height	Width [x]	Width [x]	Attachment Method	Thermal Resistance @ Forced Air Flow	Shape [custom]	Shape [custom]	Length [x]	Length [x]	Package Cooled	Shape [custom]	Fin Height [z]	Fin Height [z]	Width	Width	Length	Length	Width [y]	Width [y]

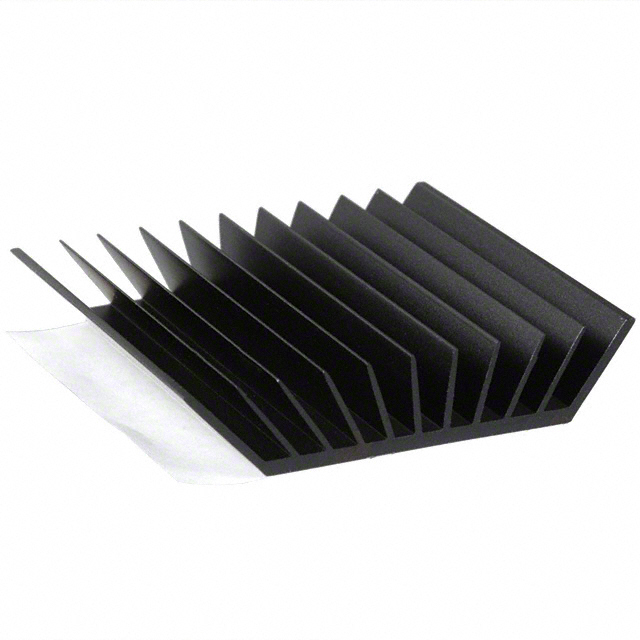

Advanced Thermal Solutions Inc. ATS-56009-C3-R0	Top Mount	Black Anodized	Aluminum	9 mm	0.354 in	30 mm	1.181 in	Thermal Tape Adhesive (Included)	4.8 °C/W	Rectangular	Angled Fins	2.283 "	58 mm	ASIC

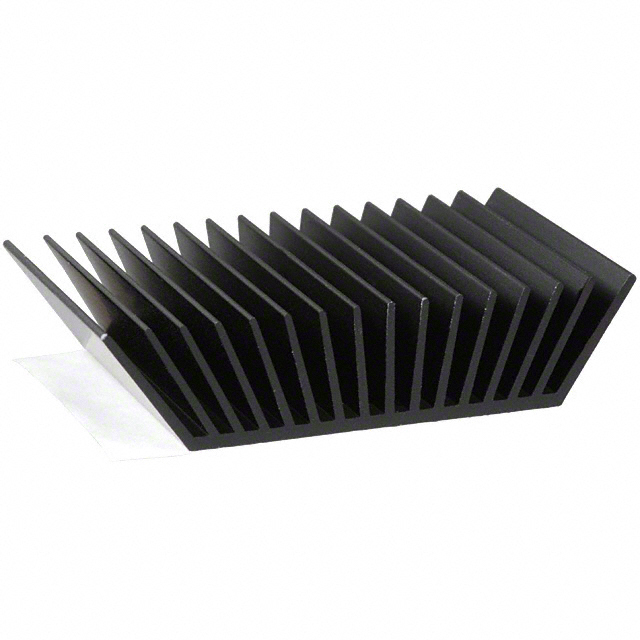

Advanced Thermal Solutions Inc. ATS-56007-C3-R0	Top Mount	Black Anodized	Aluminum					Thermal Tape Adhesive (Included)	2.4 °C/W	Square		1.772 in	45 mm	ASIC	Angled Fins	15 mm	0.59 in	1.772 in	45 mm

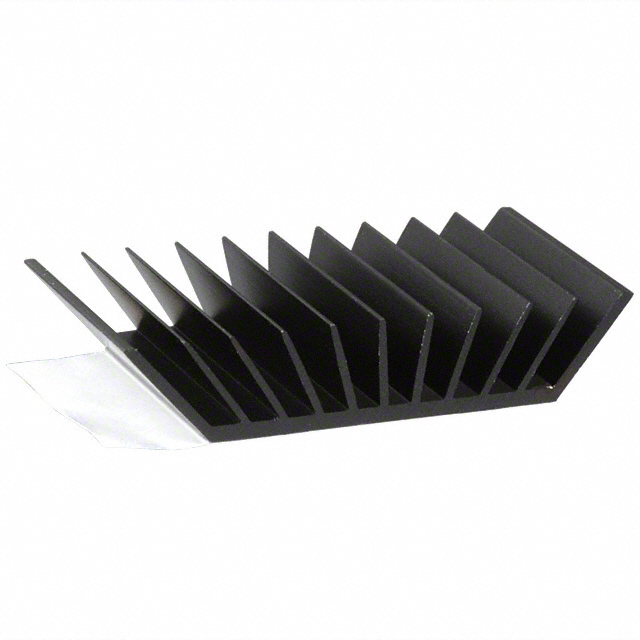

Advanced Thermal Solutions Inc. ATS-56000-C3-R0	Top Mount	Black Anodized	Aluminum	9 mm	0.354 in	30 mm	1.181 in	Thermal Tape Adhesive (Included)	4 °C/W	Square				ASIC	Angled Fins					0.03 m	1.181 in
Advanced Thermal Solutions Inc. ATS-56006-C3-R0	Top Mount	Black Anodized	Aluminum	12 mm	0.472 in			Thermal Tape Adhesive (Included)	3.9 °C/W	Rectangular	Angled Fins	1.969 in	50 mm	ASIC				1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-56010-C3-R0	Top Mount	Black Anodized	Aluminum	8.5 mm	0.335 in			Thermal Tape Adhesive (Included)	4 °C/W	Rectangular	Angled Fins	1.969 in	50 mm	ASIC				1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-56012-C3-R0	Top Mount	Gold Anodized	Aluminum	16 mm	0.63 in			Thermal Tape Adhesive (Included)	2.8 °C/W	Square		1.654 in	42 mm	ASIC	Angled Fins							42 mm	1.654 in
Advanced Thermal Solutions Inc. ATS-56013-C3-R0	Top Mount	Gold Anodized	Aluminum	16 mm	0.63 in			Thermal Tape Adhesive (Included)	2.2 °C/W	Square		1.654 in	42 mm	ASIC	Angled Fins							42 mm	1.654 in
