GRB238B Series
Manufacturer: CW Industries
Beta
⌘K

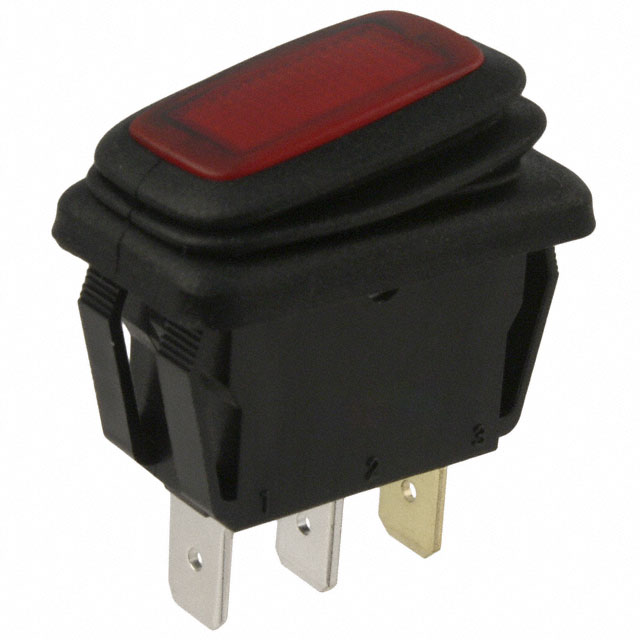

SWITCH ROCKER SPST 25A 14V
| Part | Mechanical Life | Switch Function | Illumination Type, Color | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Actuator Marking | Circuit | Mounting Type | Voltage Rating - DC | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Current Rating (Amps) | Actuator Type | Approval Agency | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 100000 Cycles | On-Off | LED Red | 27.6 mm | 13.8 mm | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | Panel Mount Snap-In | 14 V | Red | 85 °C | -25 °C | IP65 - Dust Tight Water Resistant | 25 A | Flat - Illuminated | ||
CW Industries | 100000 Cycles | On-Off | LED Red | 27.6 mm | 13.8 mm | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | Panel Mount Snap-In | 12 V | Red | 85 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 A | Flat - Illuminated | cULus ENEC | 12 VDC |
