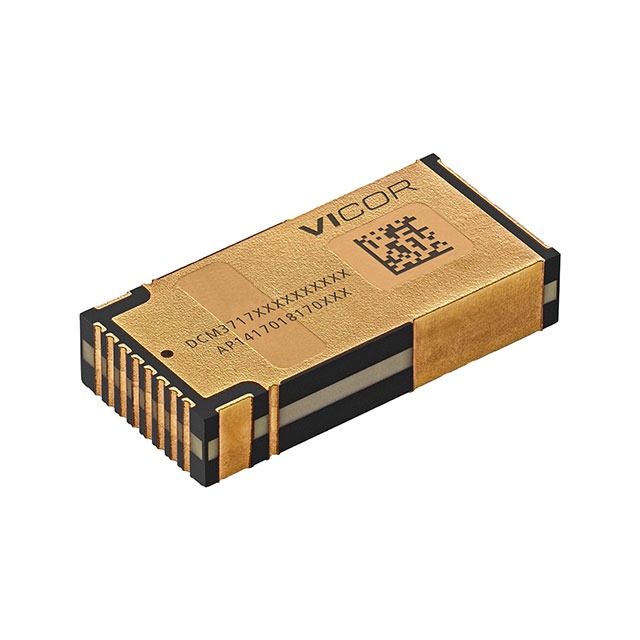

DCM3717 Series
Manufacturer: Vicor Corporation
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 750W 40-60VIN 12.2VOUT 61.5A
| Part | Voltage - Output 1 | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Package / Case | Number of Outputs | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Standard Number | Power (Watts) | Applications | Voltage - Input (Max) [Max] | Approval Agency | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vicor Corporation | 12.2 V | Adjustable Output | Surface Mount | 125 °C | -40 C | Non-Isolated PoL Module | 14-SMD Module | 1 | 96.5 % | 36.7 mm | 0.68 in | 17.3 mm | 1.45 in | 0.2 " | 5.2 mm | 62368-1 | 750 W | ITE (Commercial) | 60 V | CE cTUVus UKCA | 40 V | 61.5 A |
 Vicor Corporation | 12.2 V | Adjustable Output | Surface Mount | 125 °C | -20 ░C | Non-Isolated PoL Module | 16-SMD Module | 1 | 96.8 % | 36.7 mm | 0.68 in | 17.3 mm | 1.45 in | 0.29 in | 7.4 mm | 750 W | ITE (Commercial) | 60 V | CE | 40 V | 62.5 A |
