325-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Read Out | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Type | Mounting Type | Card Thickness | Card Thickness | Number of Positions | Card Type | Termination | Pitch | Pitch | Color | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

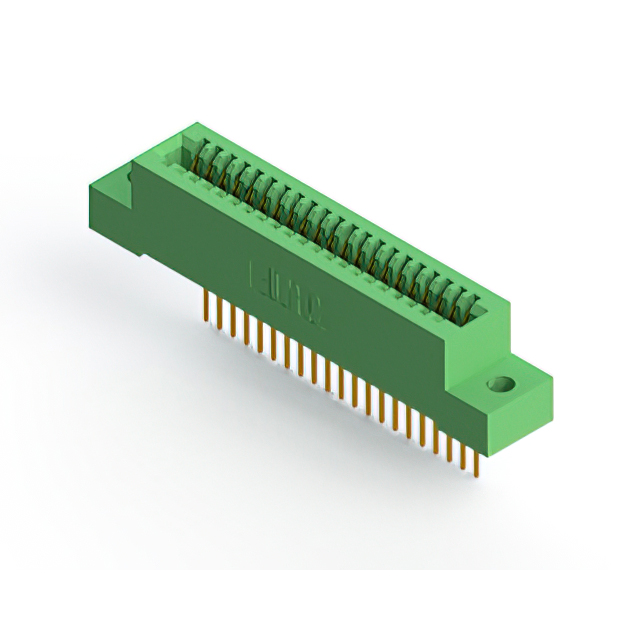

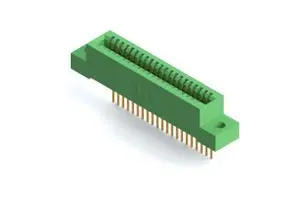

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | Female | Single | 21 | 0.25 Ám | 10 Áin | 1 | -65 ░C | 125 °C | Copper Alloy | Cantilever | Through Hole | 3.18 mm | 0.125 in | 21 | Non Specified - Single Edge | Wire Wrap | 0.1 " | 2.54 mm | Green | Gold |

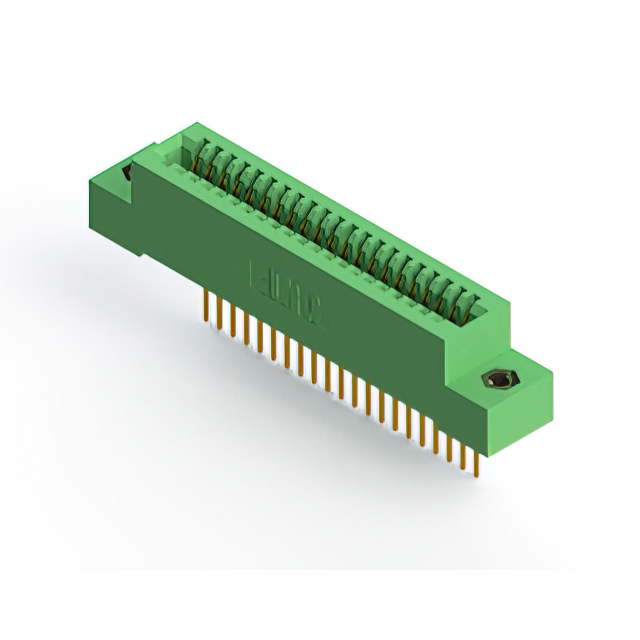

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Female | Single | 21 | 0.25 Ám | 10 Áin | 1 | -65 ░C | 125 °C | Copper Alloy | Cantilever | Through Hole | 3.18 mm | 0.125 in | 21 | Non Specified - Single Edge | Wire Wrap | 0.1 " | 2.54 mm | Green | Gold | ||

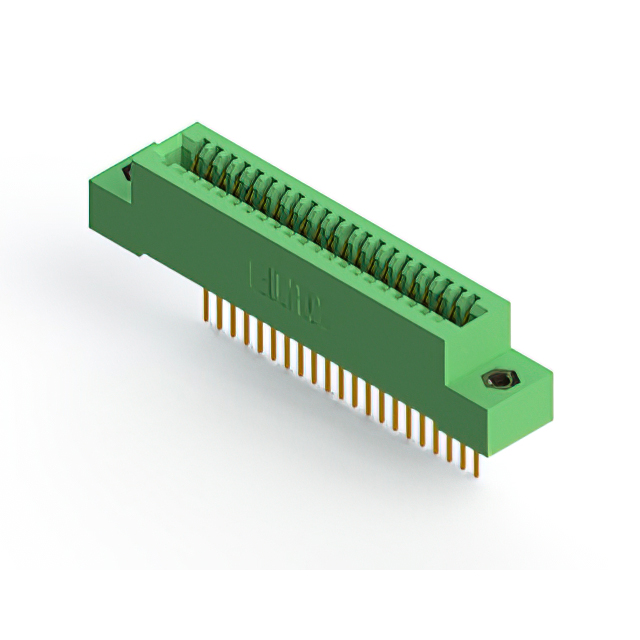

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Female | Single | 21 | 0.25 Ám | 10 Áin | 1 | -65 ░C | 125 °C | Copper Alloy | Cantilever | Through Hole | 3.18 mm | 0.125 in | 21 | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | Green | Gold | ||
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 21 | 0.25 Ám | 10 Áin | 1 | -65 ░C | 125 °C | Copper Alloy | Cantilever | Through Hole | 3.18 mm | 0.125 in | 21 | Non Specified - Single Edge | Solder | 0.1 " | 2.54 mm | Green | Gold | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | Female | Single | 21 | 0.25 Ám | 10 Áin | 1 | -65 ░C | 125 °C | Copper Alloy | Cantilever | Through Hole | 3.18 mm | 0.125 in | 21 | Non Specified - Single Edge | Wire Wrap | 0.1 " | 2.54 mm | Green | Gold |
