19200101 Series
Manufacturer: HARTING
Beta
⌘K

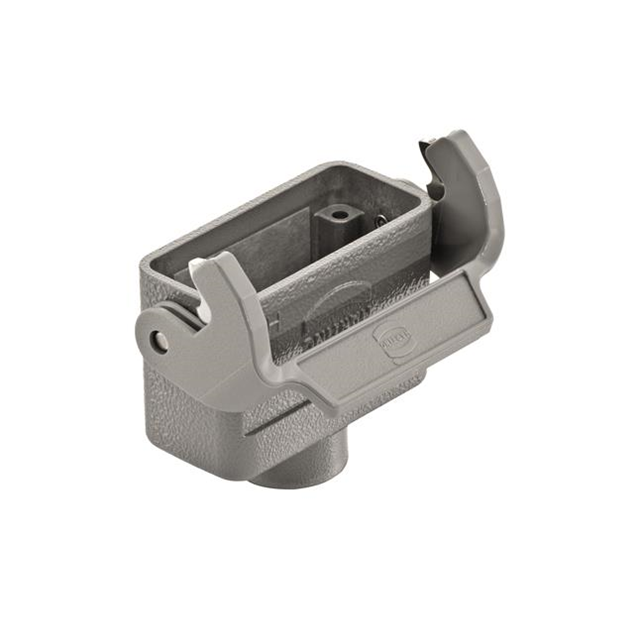

10A HOOD CABLE TO CABLE, SINGLE LEVER, LOW CONSTRUCTION, M20
| Part | Style | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Housing Material | Thread Size | Ingress Protection | Size | Housing Finish | Features | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Connector Type | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Top Entry Top or Bottom Entry | 29.5 mm | 2.469 in | 2.106 " | 62.7 mm | 53.5 mm | 1.161 in | Aluminum Die Cast | M20 | IP65 - Dust Tight Water Resistant | 10 A | Powder Coated | Cable to Cable | 125 °C | -40 C | Gray | Hood - Coupling | Locking Clip (1) on Base Bottom |
