ALCOSWITCH TPC Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TPC11FGRA0=PUSHBUTTON SWITCH

Part	Electrical Life	Circuit	Switch Function	Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Actuator Marking	Current Rating (Amps)	Actuator Type	Termination Style
TE Connectivity AMP Connectors TPC11FGRA0

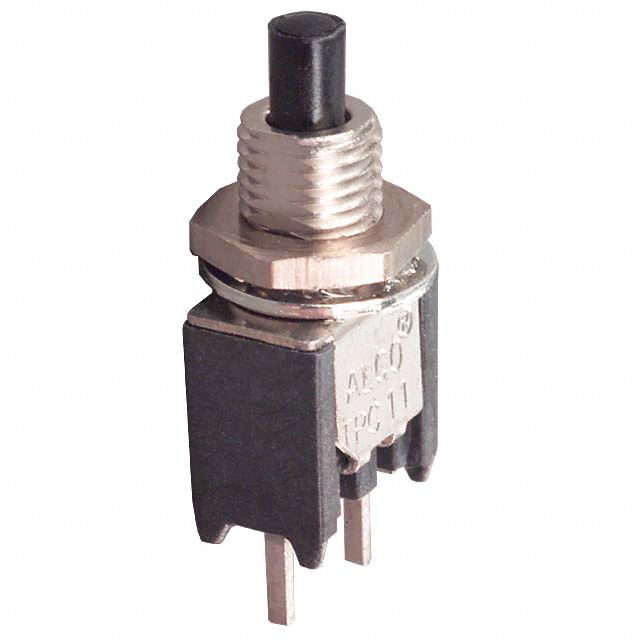

TE Connectivity AMP Connectors TPC11CGPC0	100000 Cycles	SPST-NO	Off-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear	20 V	4.83 mm	Black	No Marking	0.4 VA	Plunger Round	PC Pin
TE Connectivity AMP Connectors 1825098-1	100000 Cycles	SPST-NO	Off-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear	20 V	4.83 mm	Black	No Marking	0.4 VA	Plunger Round	PC Pin
TE Connectivity AMP Connectors TPC13CPC0	60000 Cycles	SPST-NO	Off-Mom	Standard	125 V	-30 ░C	65 °C	Panel Mount Rear	20 V	4.83 mm	Black	No Marking	1 A	Plunger Round	PC Pin
TE Connectivity AMP Connectors 1825098-2		SPST-NO	Off-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear Right Angle	20 V	4.83 mm	Black	No Marking	0.4 VA	Plunger Round	PC Pin
TE Connectivity AMP Connectors TPC11FGPC004	100000 Cycles	SPDT	On-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear	20 V	4.83 mm	Black	No Marking	0.4 VA	Plunger Round	PC Pin
TE Connectivity AMP Connectors TPC11FGPC0		SPDT	On-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear	20 V	4.83 mm	Black	No Marking	0.4 VA	Plunger Round	PC Pin
TE Connectivity AMP Connectors TPC21MGRA2		DPST-NO	Off-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear Right Angle	20 V	4.83 mm	Red	No Marking	0.4 VA	Plunger Round	PC Pin

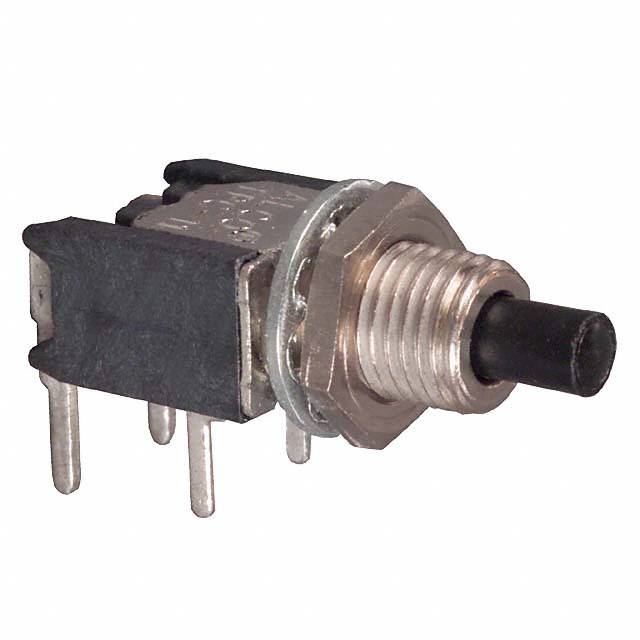

TE Connectivity AMP Connectors TPC11CGRA0	100000 Cycles	SPST-NO	Off-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear Right Angle	20 V	4.83 mm	Black	No Marking	0.4 VA	Plunger Round	PC Pin
TE Connectivity AMP Connectors TPC21RGPC0		DPDT	On-Mom	Standard	20 V	-30 ░C	65 °C	Panel Mount Rear	20 V	4.83 mm	Black	No Marking	0.4 VA	Plunger Round	PC Pin
