XDVG57 Series
Manufacturer: SunLED
Beta
⌘K

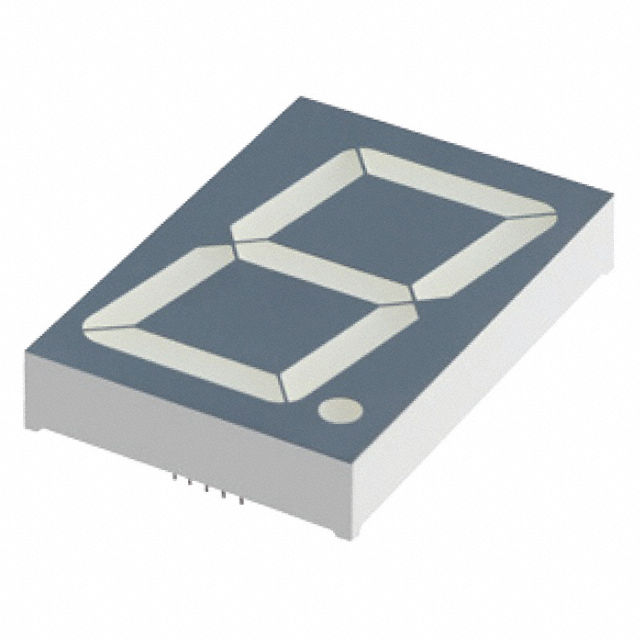

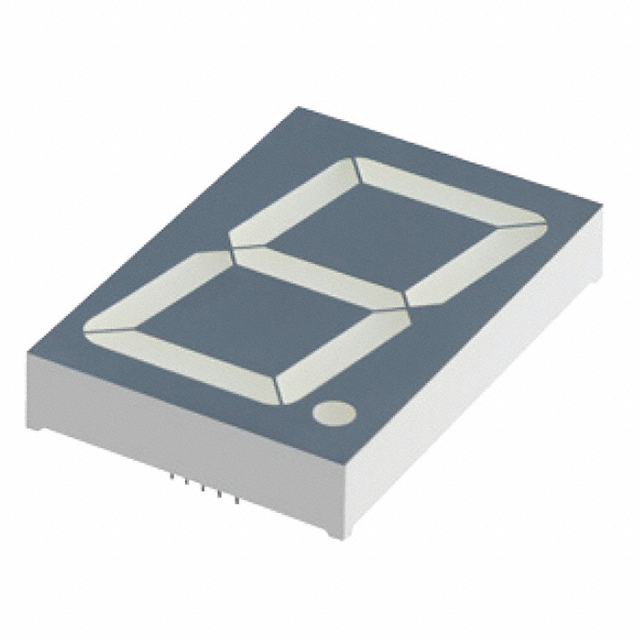

DISPLAY 7SEG 2.3" SGL GRN 10DIP
| Part | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Test | Display Type | Voltage - Forward (Vf) (Typ) | Number of Characters | Millicandela Rating | Power Dissipation (Max) | Common Pin | Color | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 58.42 mm | 2.3 in | 12 mm | 70 mm | 0.472 " | 2.756 " | 1.89 in | 48 mm | 10 mA | 7-Segment | 8 V | 1 | 62 mcd | 150 mW | Common Anode | Green | 10-DIP (2.367" 60.10mm) |
 SunLED | 58.42 mm | 2.3 in | 12 mm | 70 mm | 0.472 " | 2.756 " | 1.89 in | 48 mm | 10 mA | 7-Segment | 8 V | 1 | 62 mcd | 150 mW | Common Cathode | Green | 10-DIP (2.367" 60.10mm) |
