CA064C Series

Manufacturer: KEMET

Catalog

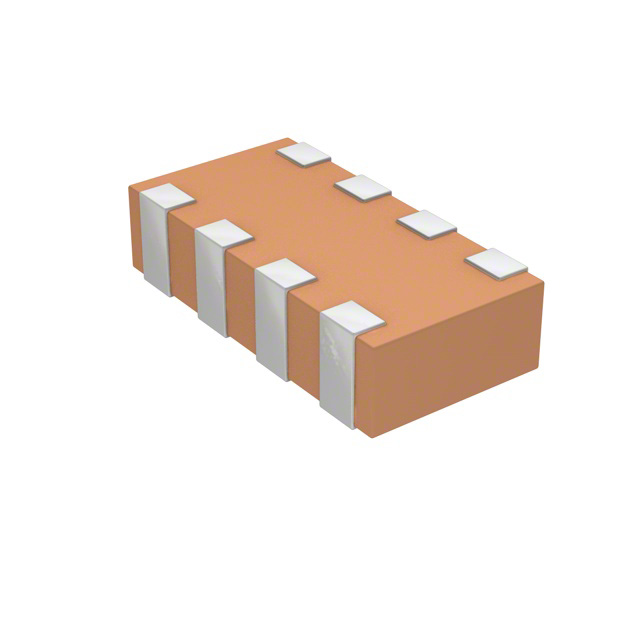

CAP ARRAY 1000PF 25V X7R 0612

Part	Supplier Device Package	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Circuit Type	Dielectric Material	Mounting Type	Capacitance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Voltage - Rated	Number of Capacitors
KEMET CA064C102K3RAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	0.001 µF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	25 VDC	4
KEMET CA064C104M4RAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	100000 pF	1206 (3216 Metric)	0.035 in	0.9 mm	20 %	16 V	4
KEMET CA064C102K5RAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	0.001 µF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	50 VDC	4
KEMET CA064C102K8RAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	0.001 µF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	10 V	4
KEMET CA064C102K5RAL7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	0.001 µF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	50 VDC	4
KEMET CA064C473K8RAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	0.047 çF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	10 V	4
KEMET CA064C332K1RAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	0.0033 µF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	100 V	4
KEMET CA064C472K5RAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	X7R	Isolated	Ceramic	Surface Mount	0.0047 µF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	50 VDC	4
KEMET CA064C220K3GAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	C0G NP0	Isolated	Ceramic	Surface Mount	22 pF	1206 (3216 Metric)	0.035 in	0.9 mm	10 %	25 VDC	4
KEMET CA064C470K5GAC7800	1632 Metric	0612	0.063 "	0.126 "	3.2 mm	1.6 mm	C0G NP0	Isolated	Ceramic	Surface Mount		1206 (3216 Metric)	0.035 in	0.9 mm	10 %	50 VDC	4
