PPPN282 Series

Catalog

CONN HDR 56POS 0.079 GOLD SMD

Part	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Post	Material Flammability Rating	Number of Rows [custom]	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions	Connector Type	Features

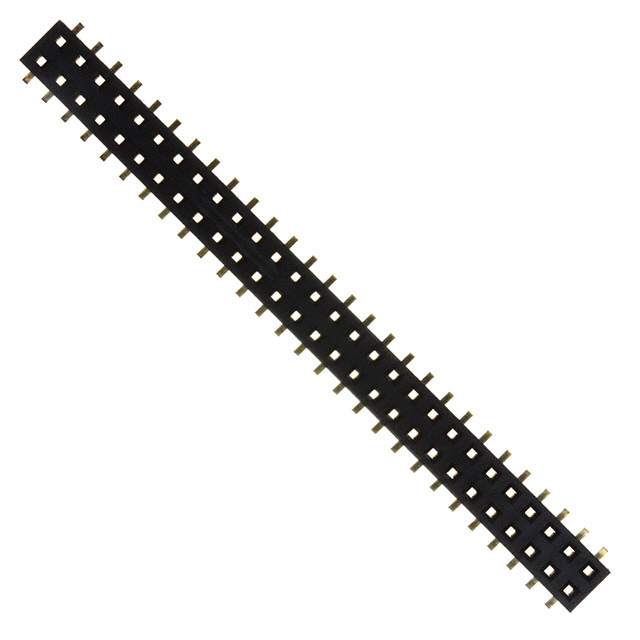

Sullins Connector Solutions PPPN282GFNS	Polyester	Square	Phosphor Bronze	Flash	UL94 V-0	2	Push-Pull	2 mm	0.079 in	Solder	0.079 "	2 mm	Female Socket	Gold	Surface Mount	All	-40 C	105 ░C	2 A	Gold	Flash	Black	56	Header Top or Bottom Entry

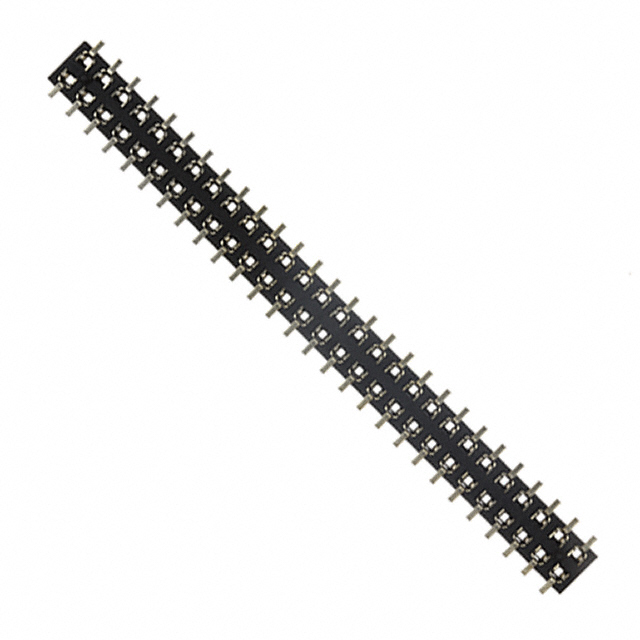

Sullins Connector Solutions PPPN282GFNP	Polyester	Square	Phosphor Bronze	Flash	UL94 V-0	2	Push-Pull	2 mm	0.079 in	Solder	0.079 "	2 mm	Female Socket	Gold	Surface Mount	All	-40 C	105 ░C	2 A	Gold	Flash	Black	56	Header Top or Bottom Entry	Board Guide
