FXMA2102 Series

Dual Supply 2-Bit Voltage Translator/Buffer/Repeater Isolator for I2C Applications

Catalog

Dual Supply 2-Bit Voltage Translator/Buffer/Repeater Isolator for I2C Applications

Part	Voltage - VCCA [Min]	Voltage - VCCA [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Channel Type	Output Type	Package / Case	Channels per Circuit	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Supplier Device Package	Translator Type	Number of Circuits	Data Rate	Mounting Type
ON Semiconductor FXMA2102L8X	1.65 V	5.5 V	85 °C	-40 °C	Bidirectional	Open Drain Tri-State	8-UFQFN	2	1.65 V	5.5 V	8-MicroPak™	Voltage Level	1	37 MHz	Surface Mount
ON Semiconductor FXMA2102UMX	1.65 V	5.5 V	85 °C	-40 °C	Bidirectional	Open Drain Tri-State	8-UFQFN	2	1.65 V	5.5 V	8-UMLP (1.2x1.4)	Voltage Level	1	37 MHz	Surface Mount

Catalog

Dual Supply 2-Bit Voltage Translator/Buffer/Repeater Isolator for I2C Applications

Key Features

• Bi-Directional Interface between any Two Levels from 1.65V to 5.5V

• Direction Control not Needed

• System GPIO Resources Not Required when OE Tied to VCCA

• I2C 400pF Buffer / Repeater

• I2C Bus Isolation

• A/B Port VOL= 175mV (Typical), VIL= 150mV, IOL= 6mA

• Open-Drain Inputs / Outputs

• Accommodates Standard-Mode and Fast-Mode I2C-Bus Devices

• Supports I2C Clock Stretching & Multi-Master

• Fully Configurable: Inputs and Outputs Track VCC

• Control INput (/OE) Referenced to VCCA

• Non-Preferential Power-Up; Either VCCMay Be Powered-Up First

• Outputs Switch to 3-State if Either VCCis at GND

• Tolerant Output Enable: 5V

• ESD Protection Exceeds:

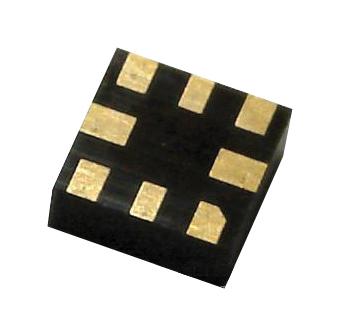

• Packaged in 8-Terminal Leadless MicroPak™ (1.6mm x 1.6mm) and Ultrathin MLP (1.2mm x 1.4m)

• 2kV HBM I/O to GND ESD (per JESD22-A114

• 8kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7)

Description

The FXMA2102 is a high-performance configurable dual-voltage-supply translator for bi-directional voltage translation over a wide range of input and output voltages levels.Intended for use as a voltage translator in applications using the I2C bus interface, the input and output voltage levels are compatible with I2C device specification voltage levels. External pull-up resistors are required.The device is designed so that the A port tracks the VCCAlevel and the B port tracks the VCCBlevel. This allows for bi-directional A/B port voltage translation between any two levels from 1.65V to 5.5V. VCCAcan equal VCCBfrom 1.65V to 5.5V. The OE pin is referenced to VCCA.Either VCCcan be powered-up first. Internal power-down control circuits place the device in 3-state if either VCCis removed.The two ports of the device have automatic direction sense capability. Either port may sense an input signal and transfer it as an output signal to the other port.
